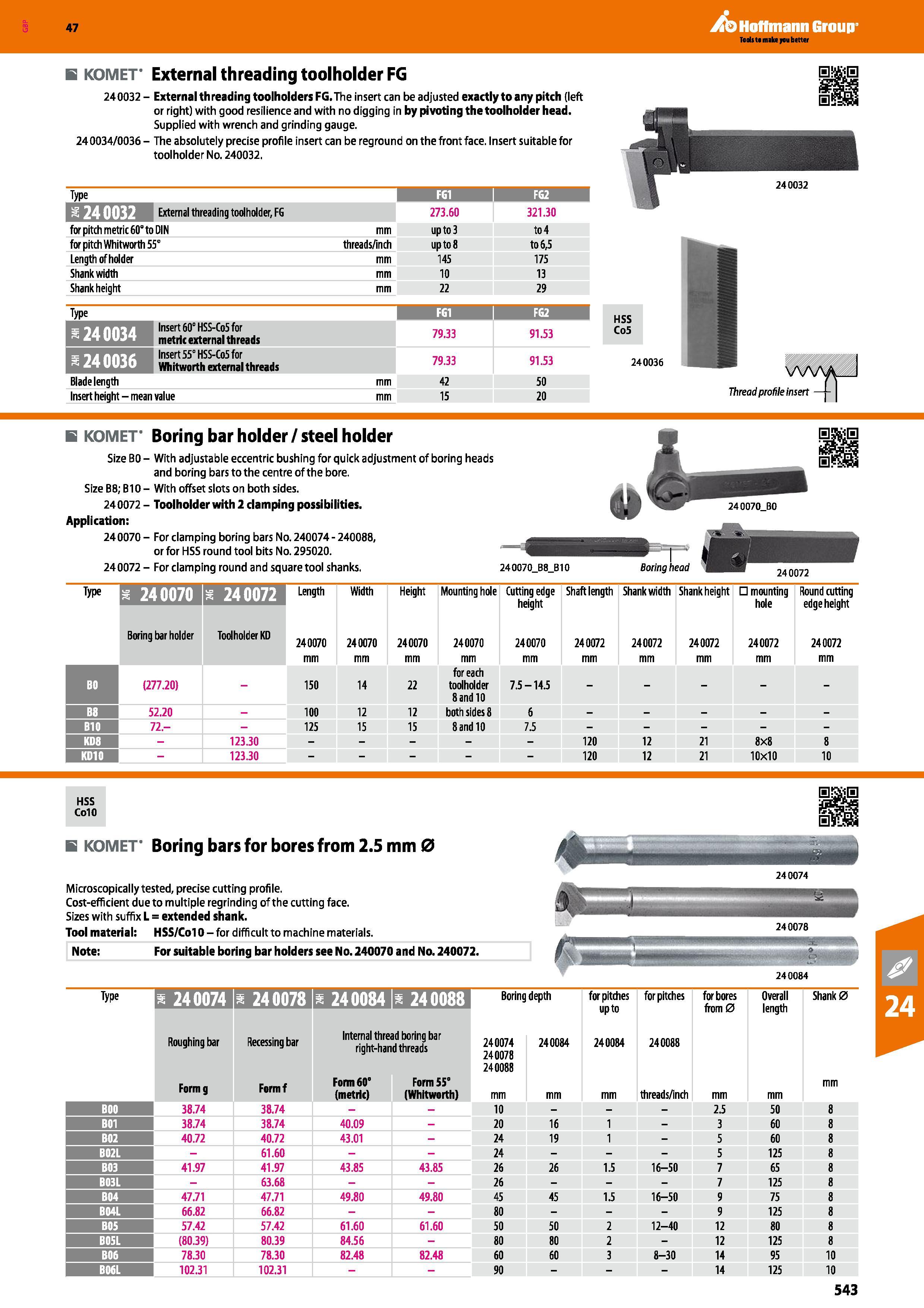

Hoffmann Group 47 B KOMET External threading toolholder FG 240032 - External threading toolholders FG.The insert can be adjusted exactly to any pitch (left or right) with good resilience and with no digging in by pivoting the toolholder head. Supplied with wrench and grinding gauge. 240034/0036 - The absolutely precise profile insert can be reground on the front face. Insert suitable for toolholder No. 240032. Type FG1 1 FG2 I External threading toolholder, FG 273.60 321.30 for pitch metric 60° to DIN mm up to 3 to 4 for pitch Whitworth 55° threads/inch up to 8 to 6,5 Length of holder mm 145 175 Shank width mm 10 13 Shank height mm 22 29 240032 Type I B FG1 i FG2 HSS Insert 60° HSS-Co5 for metric external threads 79.33 91.53 Co5 Insert 55° HSS-Co5 for BjXUXkaal Whitworth external threads 79.33 91.53 240036 Blade length mm 42 50 Insert height-mean value mm 15 20 m Thread profile insert B KOMET Boring bar holder/steel holder Size B0 - With adjustable eccentric bushing for quick adjustment of boring heads and boring bars to the centre of the bore. Size B8; B10 - With offset slots on both sides. 240072 - Toolholder with 2 damping possibilities. Application: 240070 - For clamping boring bars No. 240074 - 240088, or for HSS round tool bits No. 295020. 240072 - For clamping round and square tool shanks. 240070 B8 B10 240072 Type 240070 240072 Length Width Height Mounting hole Cutting edge height Shaft length Shank width Shank height mounting hole Round cutting edge height Boring bar holder Toolholder KD 240070 240070 240070 240070 240070 240072 240072 240072 240072 240072 mm BO (277.20) - 150 14 22 for each toolholder 8 and 10 7.5-14.5 - BS 52.20 - 100 12 12 both sides 8 6 - BIO 72- - 125 15 15 8 and 10 7.5 - M'i; - 123.30 - 120 12 21 8x8 8 i KD10 - 123.30 - 120 12 21 10x10 10 HSS Co10 B KOMET Boring bars for bores from 2.5 mm 0 Microscopically tested, precise cutting profile. Cost-efficient due to multiple regrinding of the cutting face. Sizes with suffix L = extended shank. Tool material: HSS/Col 0 - for difficult to machine materials. 240074 Note: 240078 For suitable boring bar holders see No. 240070 and No. 240072. 240084 Type 240074 240078 s 240084 s 240088 Boring depth for pitches up to for pitches for bores from 0 Overall length Shank 0 Roughing bar Formg Recessing bar Formf Internal thread boring bar right-hand threads Form 60° Form 55° (metric) (Whitworth) 240074 240078 240088 mm 240084 mm 240084 mm 240088 threads/inch mm BOO 38.74 38.74 10 - 2.5 50 8 B01 38.74 38.74 40.09 - 20 16 1 - 3 60 8 B02 40.72 40.72 43.01 - 24 19 1 - 5 60 8 B02L - 61.60 24 - 5 125 8 B03 41.97 41.97 43.85 43.85 26 26 1.5 16-50 7 65 8 B03L - 63.68 26 - 7 125 8 B04 47.71 47.71 49.80 49.80 45 45 1.5 16-50 9 75 8 B04L 66.82 66.82 80 - 9 125 8 B05 57.42 57.42 61.60 61.60 50 50 2 12-40 12 80 8 B05L (80.39) 80.39 84.56 - 80 80 2 - 12 125 8 B06 78.30 78.30 82.48 82.48 60 60 3 8-30 14 95 10 B06L 102.31 102.31 90 - 14 125 10 543
