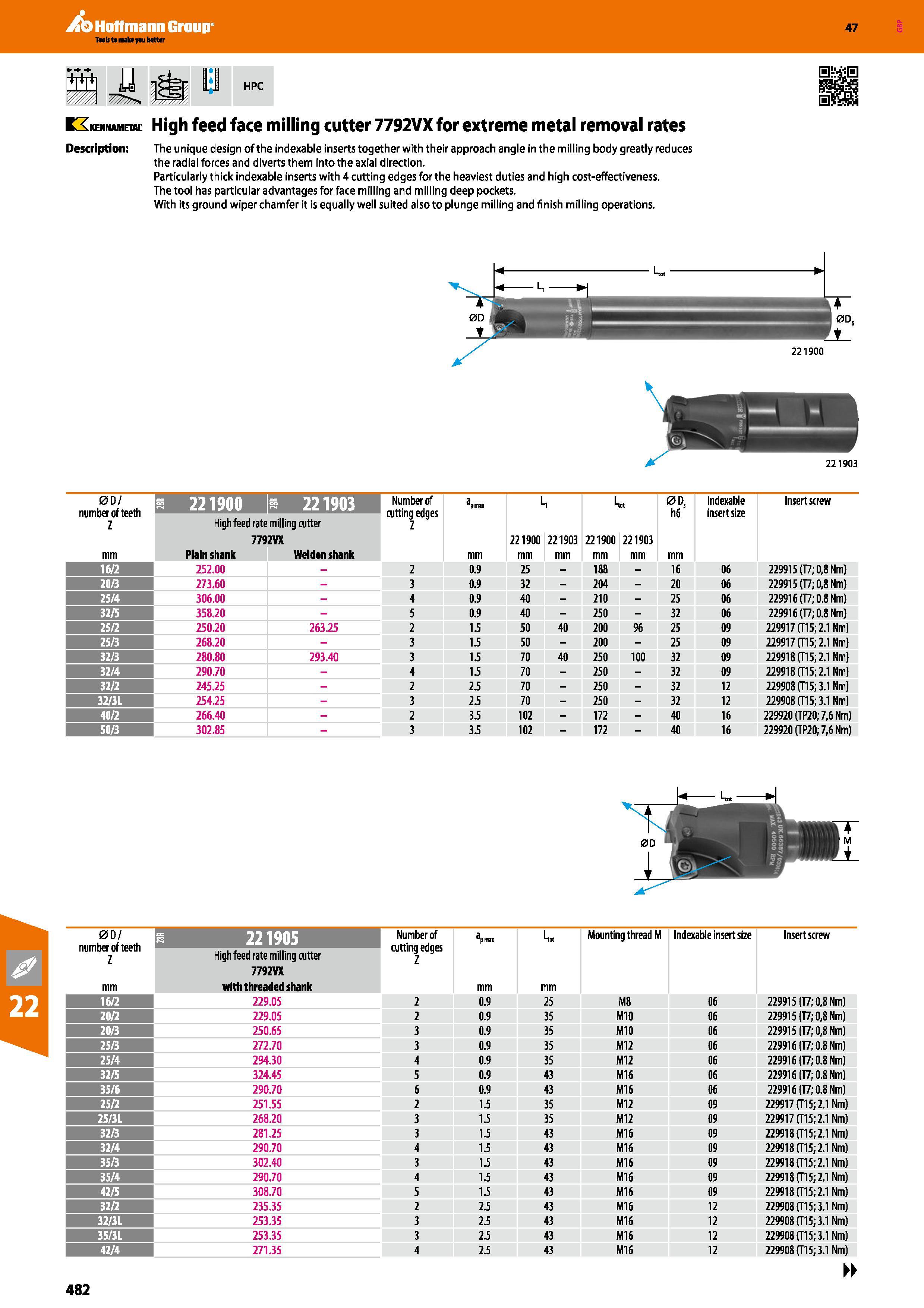

Hkehnah High feed face milling cutter 7792VX for extreme metal removal rates Description: The unique design of the indexable inserts together with their approach angle in the milling body greatly reduces the radial forces and diverts them into the axial direction. Particularly thick indexable inserts with 4 cutting edges for the heaviest duties and high cost-effectiveness. The tool has particular advantages for face milling and milling deep pockets. With its ground wiper chamfer it is equally well suited also to plunge milling and finish milling operations. 0D / number of teeth Z mm n 221900 221903 Number of cutting edges Z Spiral mm L, L, 0DS h6 mm Indexable insert size Insert screw High feed rate milling cutter 7792VX Plain shank Weldon shank 221900 mm 221903 mm 221900 mm 221903 mm 16/2 252.00 - 2 0.9 25 - 188 - 16 06 229915 (T7; 0,8 Nm) 20/3 273.60 - 3 0.9 32 - 204 - 20 06 229915 (T7; 0,8 Nm) 25/4 306.00 - 4 0.9 40 - 210 - 25 06 229916 (T7; 0.8 Nm) 32/5 358.20 - 5 0.9 40 - 250 - 32 06 229916 (T7; 0.8 Nm) 25/2 250.20 263.25 2 1.5 50 40 200 96 25 09 229917 (T15; 2.1 Nm) 25/3 268.20 - 3 1.5 50 - 200 - 25 09 229917 (T15; 2.1 Nm) 32/3 280.80 293.40 3 1.5 70 40 250 100 32 09 229918 (T15; 2.1 Nm) 32/4 290.70 - 4 1.5 70 - 250 - 32 09 229918 (T15; 2.1 Nm) 32/2 245.25 - 2 2.5 70 - 250 - 32 12 229908 (T15; 3.1 Nm) 32/3L 254.25 - 3 2.5 70 - 250 - 32 12 229908 (T15; 3.1 Nm) 40/2 266.40 - 2 3.5 102 - 172 - 40 16 229920 (TP20; 7,6 Nm) 50/3 302.85 - 3 3.5 102 - 172 - 40 16 229920 (TP20; 7,6 Nm) 0D / number of teeth Z mm s 221905 Number of cutting edges Z pmM mm L mm Mounting thread M Indexable insert size Insert screw High feed rate milling cutter 7792VX with threaded shank 16/2 229.05 2 0.9 25 M8 06 229915 (T7; 0,8 Nm) 20/2 229.05 2 0.9 35 M10 06 229915 (T7; 0,8 Nm) 20/3 250.65 3 0.9 35 M10 06 229915 (T7; 0,8 Nm) 25/3 272.70 3 0.9 35 Ml 2 06 229916 (T7; 0.8 Nm) 25/4 294.30 4 0.9 35 M12 06 229916 (T7; 0.8 Nm) 32/5 324.45 5 0.9 43 M16 06 229916 (T7; 0.8 Nm) 35/6 290.70 6 0.9 43 Ml 6 06 229916(17; 0.8 Nm) 25/2 251.55 2 1.5 35 M12 09 229917 (T15; 2.1 Nm) 25/3L 268.20 3 1.5 35 M12 09 229917 (T15; 2.1 Nm) 32/3 281.25 3 1.5 43 M16 09 229918CT15; 2.1 Nm) 32/4 290.70 4 1.5 43 M16 09 229918 T15; 2.1 Nm) 35/3 302.40 3 1.5 43 M16 09 229918 (T15; 2.1 Nm) 35/4 290.70 4 1.5 43 Ml 6 09 229918 (T15; 2.1 Nm) 42/5 308.70 5 1.5 43 M16 09 229918 (T15; 2.1 Nm) 32/2 235.35 2 2.5 43 M16 12 229908 (T15;3.1 Nm) 32/3L 253.35 3 2.5 43 M16 12 229908 T15; 3.1 Nm) 35/3L 253.35 3 2.5 43 M16 12 229908 T15; 3.1 Nm) 42/4 271.35 4 2.5 43 Ml 6 12 229908 (T15;3.1 Nm)
