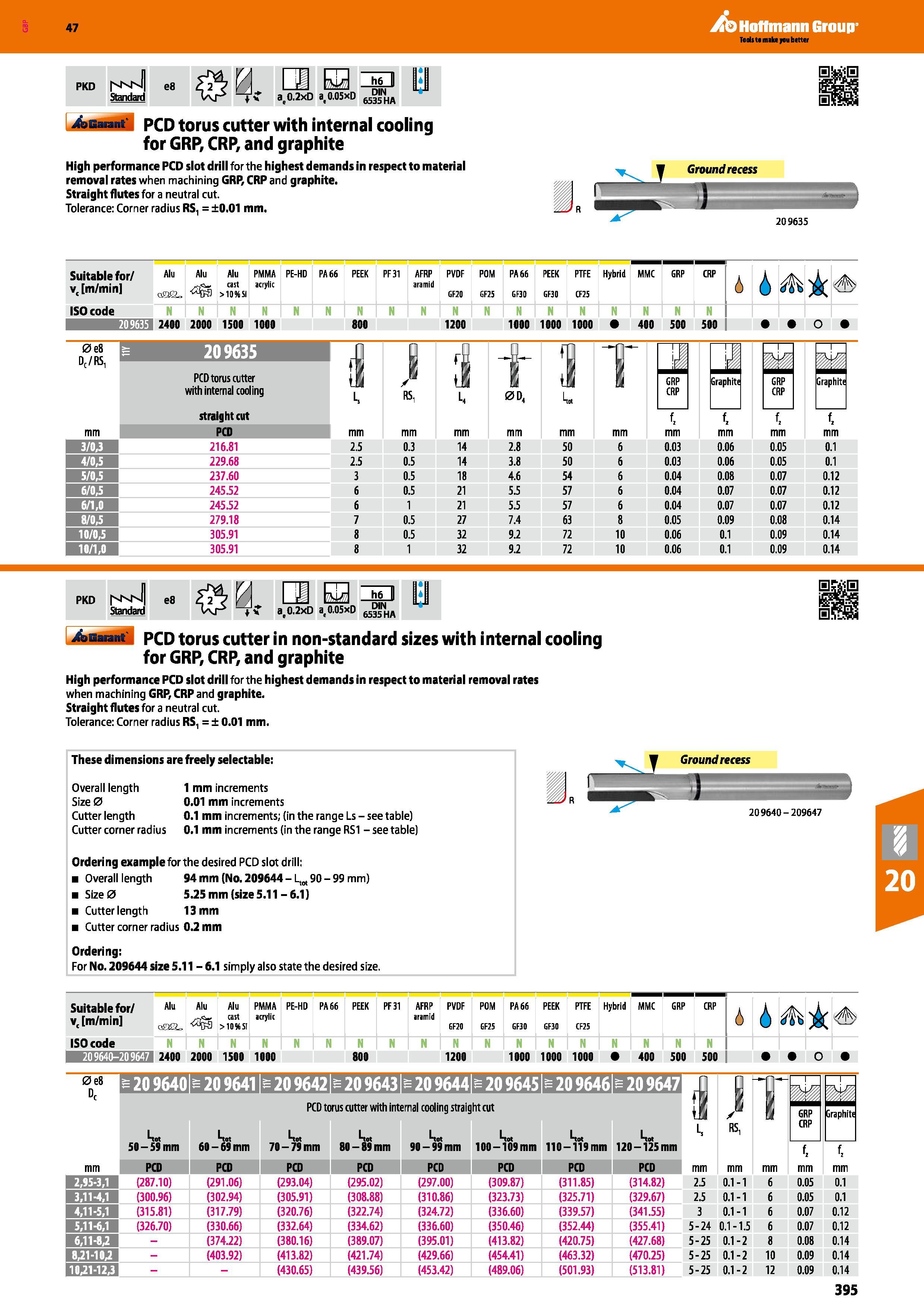

395 Каталог HOFFMANN GROUP 2016 Станочный режущий и вспомогательный инструмент Вер. 47 Стр.395

Каталог HOFFMANN GROUP 2016 Режущий инструмент и оснастка Стр. 395 0395 ENG Lab2u

Hoffmann Group 47 PKD I'vMvfl Standard e8 0. v a xD Til bBaiant pcd torus cutter with internal cooling for GRP, CRP, and graphite High performance PCD slot drill for the highest demands in respect to material removal rates when machining GRP, CRP and graphite. Straight flutes for a neutral cut. Tolerance: Corner radius RS, = ±0.01 mm. f Ground recess 209635 Suitable for/ v( m/min Alu qQCL, Alu <2 Alu cast >10%SI PMMA PE-HD PA 66 acrylic PEEK PF31 AFRP aramid PVDF GF20 POM GF25 PA 66 GF30 PEEK GF30 PTFE CF25 Hybrid MMC GRP CRP a 6 ISO code N Mn N N N Mn N hn N N hn hn Mn Mn N i 209635 2400 2000 1500 1000 800 1200 1000 1000 1000 400 500 500 O 0e8 DC/RS, 20 9635 PCD torus cutter with internal cooling tfl I 0D4 m L GRP CRP Graphite straight cut f, f, f, f, mm PCD mm 3/0,3 216.81 2.5 0.3 14 2.8 50 6 0.03 0.06 0.05 0.1 4/0,5 229.68 2.5 0.5 14 3.8 50 6 0.03 0.06 0.05 0.1 5/0,5 237.60 3 0.5 18 4.6 54 6 0.04 0.08 0.07 0.12 6/0,5 245.52 6 0.5 21 5.5 57 6 0.04 0.07 0.07 0.12 6/1,0 245.52 6 1 21 5.5 57 6 0.04 0.07 0.07 0.12 8/0,5 279.18 7 0.5 27 7.4 63 8 0.05 0.09 0.08 0.14 10/0,5 305.91 8 0.5 32 9.2 72 10 0.06 0.1 0.09 0.14 10/1,0 305.91 8 1 32 9.2 72 10 0.06 0.1 0.09 0.14 PKD VK J Standard e8 h6 a,0.2xD a(0.05xD 65“NHA bBaiant' pcd torus cutter in non-standard sizes with internal cooling for GRP, CRP, and graphite High performance PCD slot drill for the highest demands in respect to material removal rates when machining GRP, CRP and graphite. Straight flutes for a neutral cut. Tolerance: Corner radius RS, = ± 0.01 mm. These dimensions are freely selectable: Overall length 1 mm increments Size 0 0.01 mm increments Cutter length 0.1 mm increments; (in the range Ls - see table) Cutter corner radius 0.1 mm increments (in the range RSI - see table) Ordering example for the desired PCD slot drill: Overall length 94 mm (No. 20964490 - 99 mm) Size0 5.25 mm (size 5.11-6.1) Cutter length 13 mm Cutter corner radius 0.2 mm Ordering: For No. 209644 size 5.11 - 6.1 simply also state the desired size. Groundrecess 209640 - 209647 Suitable for/ vc m/min Alu qHEL, Alu cast >10%SI PMMA acrylic PE-HD PA 66 PEEK PF31 AFRP aramid PVDF GF20 POM GF25 PA 66 GF30 PEEK GF30 PTFE CF25 Hybrid MMC GRP CRP 4 6 ISO code N Mn N hn Mnhn Mn Mn Mn rr Mn N hr hn Mn Mn Mn N 209640-209647 2400 2000 1500 1000 800 1200 1000 1000 1000 400 500 500 O 0e8 c £ 20 9640 £ 20 9641 £209642 £209643 £209644 £209645 £209646 £209647 ffl i L, RS, i i L, 50-59 mm kat 60 - 69 mm PCD torus cutter with internal cooling straight cut kot kot kot kot 70 - 79 mm 80 - 89 mm 90-99mm 100-109mm L, 110-119 mm kot 120-125 mm GRP CRP Graphite t f, mm PCD PCD PCD PCD PCD PCD PCD PCD mm 2,95-3,1 (287.10) (291.06) (293.04) (295.02) (297.00) (309.87) (311.85) (314.82) 2.5 0.1-1 6 0.05 0.1 3,11-4,1 (300.96) (302.94) (305.91) (308.88) (310.86) (323.73) (325.71) (329.67) 2.5 0.1-1 6 0.05 0.1 4,11-5,1 (315.81) (317.79) (320.76) (322.74) (324.72) (336.60) (339.57) (341.55) 3 0.1-1 6 0.07 0.12 5,11-6,1 (326.70) (330.66) (332.64) (334.62) (336.60) (350.46) (352.44) (355.41) 5-24 0.1-1.5 6 0.07 0.12 6,11-8,2 - (374.22) (380.16) (389.07) (395.01) (413.82) (420.75) (427.68) 5-25 0.1-2 8 0.08 0.14 8,21-10,2 - (403.92) (413.82) (421.74) (429.66) (454.41) (463.32) (470.25) 5-25 0.1-2 10 0.09 0.14 10,21-12,3 (430.65) (439.56) (453.42) (489.06) (501.93) (513.81) 5-25 0.1-2 12 0.09 0.14 395
