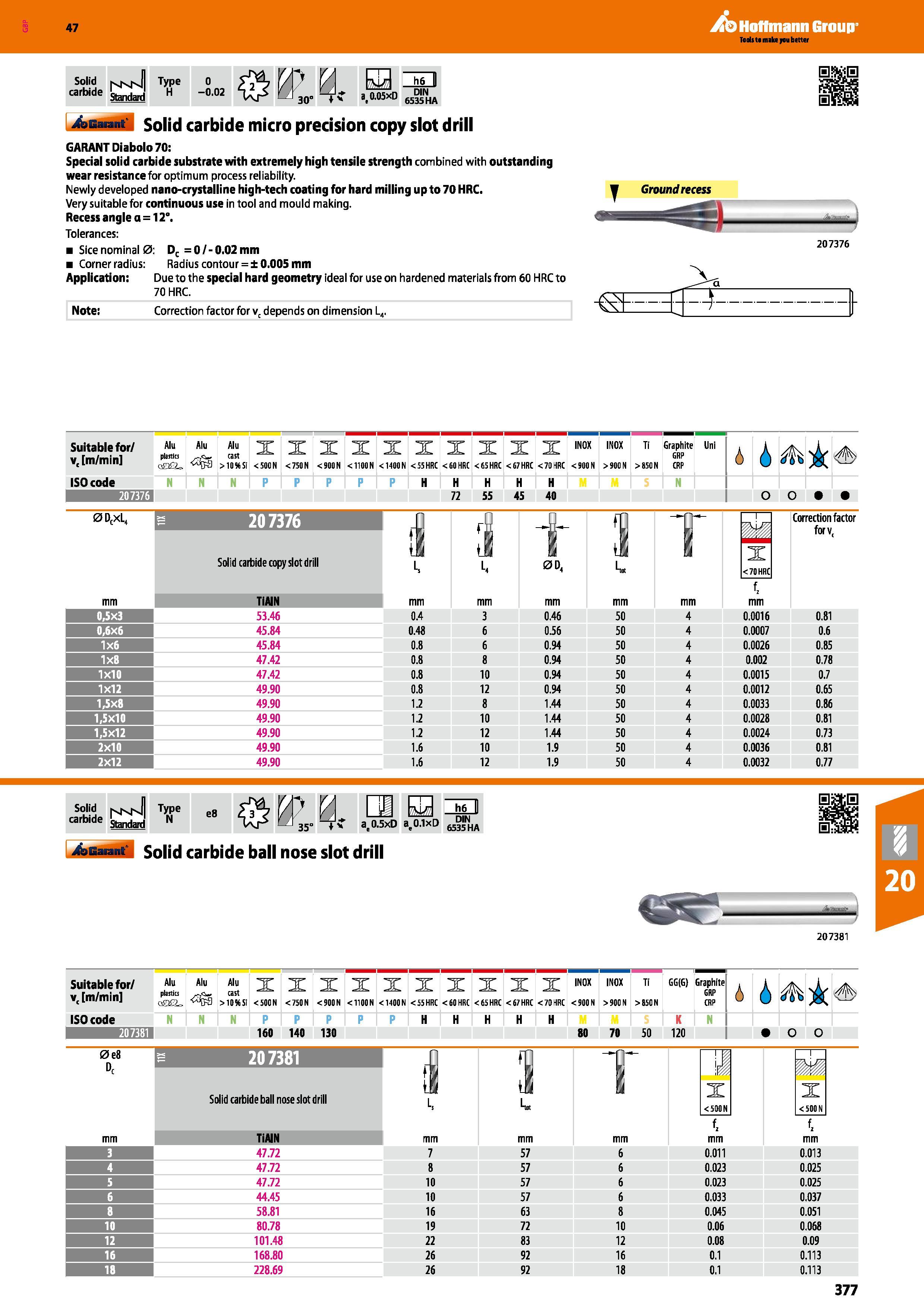

47 Hoffmann Group Solid carbide I'vM'J Standard Type H 0 -0.02 00 P 0 30° j TMsH ae0.05xD h6 DIN 6535 HA 4ssa til Solid carbide micro precision copy slot drill GARANT Diabolo 70: Special solid carbide substrate with extremely high tensile strength combined with outstanding wear resistance for optimum process reliability. Newly developed nano-crystalline high-tech coating for hard milling up to 70 HRC. Very suitable for continuous use in tool and mould making. Recess angle a = 12°. Tolerances: Sice nominal 0: Dc = 0 / - 0.02 mm Corner radius: Radius contour = ±0.005 mm Application: Due to the special hard geometry ideal for use on hardened materials from 60 HRC to 70 HRC. Note: Correction factor for vc depends on dimension L4. Ground recess 207376 Suitable for/ v, m/min Alu plastics Alu cast 3 >10MSI X < 500 N X < 750 N X < 900 N X < 1100 N X <1400 N X <55 HRC X < 60 HRC X <65 HRC X <67 HRC X <70 HRC INOX < 900 N INOX > 900 N Ti >850N Graphite GRP CRP Uni 6 i ISO code N N P H nd j j I 207376 72 55 45 40 0 DcxL4 207376 Solid carbide copy slot drill 0Dt r Correction factor forv. mm TiAIN mm 0,5x3 53.46 0.4 3 0.46 50 4 0.0016 0.81 0,6x6 45.84 0.48 6 0.56 50 4 0.0007 0.6 1x6 45.84 0.8 6 0.94 50 4 0.0026 0.85 1x8 47.42 0.8 8 0.94 50 4 0.002 0.78 1x10 47.42 0.8 10 0.94 50 4 0.0015 0.7 1x12 49.90 0.8 12 0.94 50 4 0.0012 0.65 1,3x8 49.90 1.2 8 1.44 50 4 0.0033 0.86 1,5X10 49.90 1.2 10 1.44 50 4 0.0028 0.81 1,5x12 49.90 1.2 12 1.44 50 4 0.0024 0.73 2x10 49.90 1.6 10 1.9 50 4 0.0036 0.81 2x12 49.90 1.6 12 1.9 50 4 0.0032 0.77 0.5XD a,0'1xD 6535 HA bBarant Solid carbide ball nose slot drill 207381 Suitable for/ v( m/min ISO code 0e8 Dr Alu plastics qSO£L, Alu rr cast <-%a >io si X <50CN X < 750 N X < 900 N X < 1100 N X <1400 N X <55 HRC X <60 HRC X <65 HRC X <67 HRC X <70 HRC INOX <900 N INOX >900N Ti >B5CN GG(G) Graphite GRP CRP A 6 N N P H K N 160 140 130 80 70 50 120 207381 Solid carbide ball nose slot drill TiAIN 47.72 47.72 47.72 44.45 58.81 80.78 101.48 168.80 228.69 15 mm 7 8 10 10 16 19 22 26 26 mm 57 57 57 57 63 72 83 92 92 mm 6 6 6 6 8 10 12 16 18 f, mm 0.011 0.023 0.023 0.033 0.045 0.06 0.08 0.1 0.1 1 X < 500 N X <500N f, mm 0.013 0.025 0.025 0.037 0.051 0.068 0.09 0.113 0.113 377
