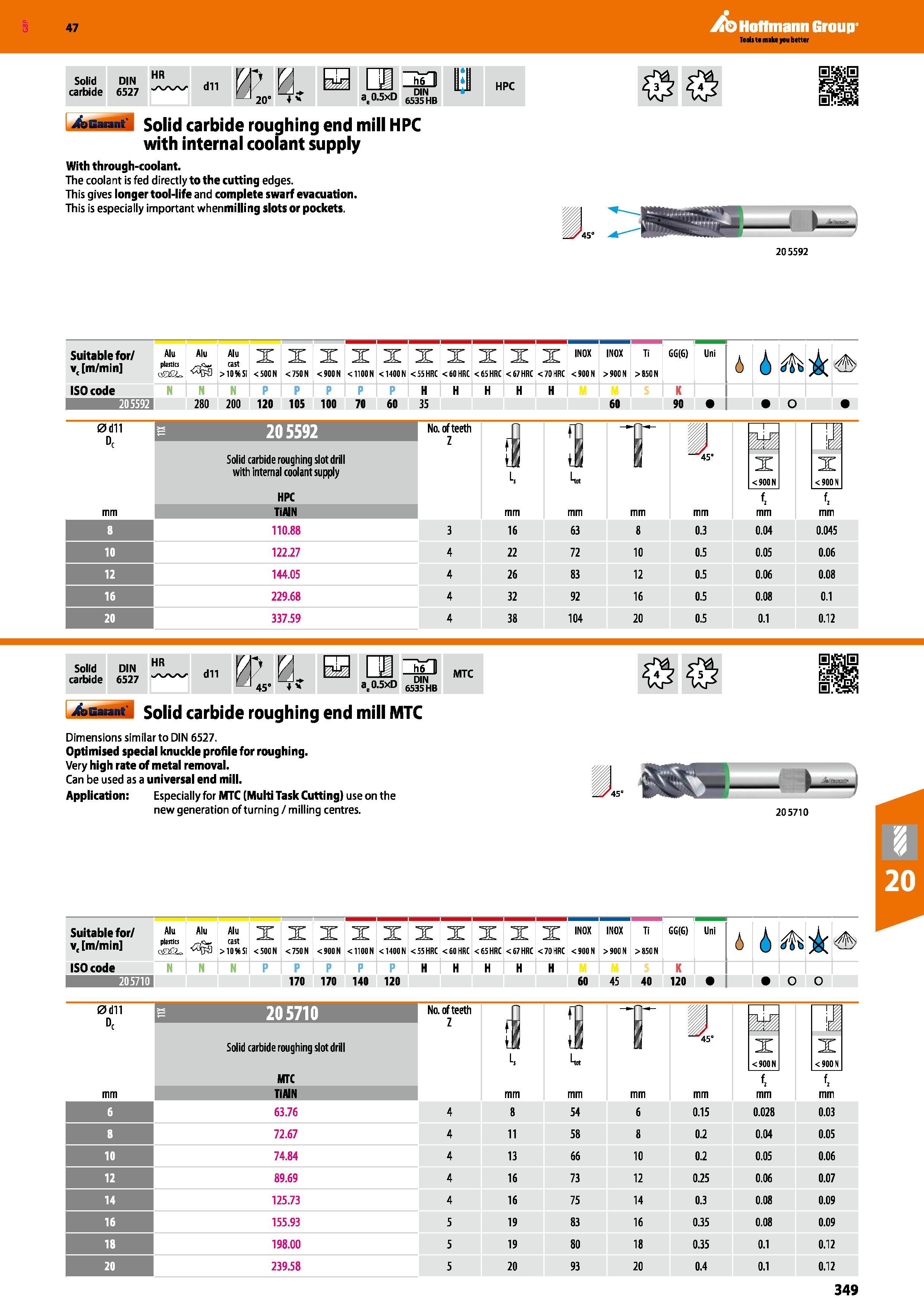

Hoffmann Group 47 Solid carbide DIN 6527 HR dll r 0. 20° 4 V a„0.5xD h6 II DIN 6535 HB HPC 4tfiannt' Solid carbide roughing end mill HPC with internal coolant supply With through-coolant. The coolant is fed directly to the cutting edges. This gives longer tool-life and complete swarf evacuation. This is especially important whenmilling slots or pockets. 205592 Suitable for/ v( m/min Alu plastics Alu cast >10%Si X < 500 N X < 750 N X < 900 N X < 1100 N X <1400 N X <55 HRC X < 60 HRC X <65 HRC X <67 HRC X <70 HRC INOX <900 N INOX >900 N Ti >850N GG(G) Uni 4 i ISO code N P H K 205592 280 200 120 105 100 70 60 35 60 90 O 0(111 Dr 205592 Solid carbide roughing slot drill with internal coolant supply Naof teeth Z HP i X < 900 N X <900N mm TiAIN mm 8 110.88 3 16 63 8 0.3 0.04 0.045 10 122.27 4 22 72 10 0.5 0.05 0.06 12 144.05 4 26 83 12 0.5 0.06 0.08 16 229.68 4 32 92 16 0.5 0.08 0.1 20 337.59 4 38 104 20 0.5 0.1 0.12 Solid DIN carbide 6527 HR dll 45" 4 at0.5xD 6535HB MTC Solid carbide roughing end mill MTC Dimensions similar to DIN 6527. Optimised special knuckle profile for roughing. Very high rate of metal removal. Can be used as a universal end mill. Application: Especially for MTC (Multi Task Cutting) use on the new generation of turning / milling centres. fM s' 205710 Suitable for/ v, m/min Alu plastics Alu cast 3 >10MSI X < 500 N X < 750 N X <900N X < 1100 N X <1400 N X <55 HRC X <60 HRC X <65 HRC X <67 HRC X <70 HRC INOX < 900 N INOX >900N Ti >S50N 1 GG(G) Uni A i ISO code nri N P H K I 205710 170 170 140 120 60 45 40 120 O o 0d11 Dr 205710 Solid carbide roughing slot drill Naof teeth Z L, m HP i X < 900 N X <900N MTC f, f, mm TiAIN mm 6 63.76 4 8 54 6 0.15 0.028 0.03 8 72.67 4 11 58 8 0.2 0.04 0.05 10 74.84 4 13 66 10 0.2 0.05 0.06 12 89.69 4 16 73 12 0.25 0.06 0.07 14 125.73 4 16 75 14 0.3 0.08 0.09 16 155.93 5 19 83 16 0.35 0.08 0.09 18 198.00 5 19 80 18 0.35 0.1 0.12 20 239.58 5 20 93 20 0.4 0.1 0.12 349
