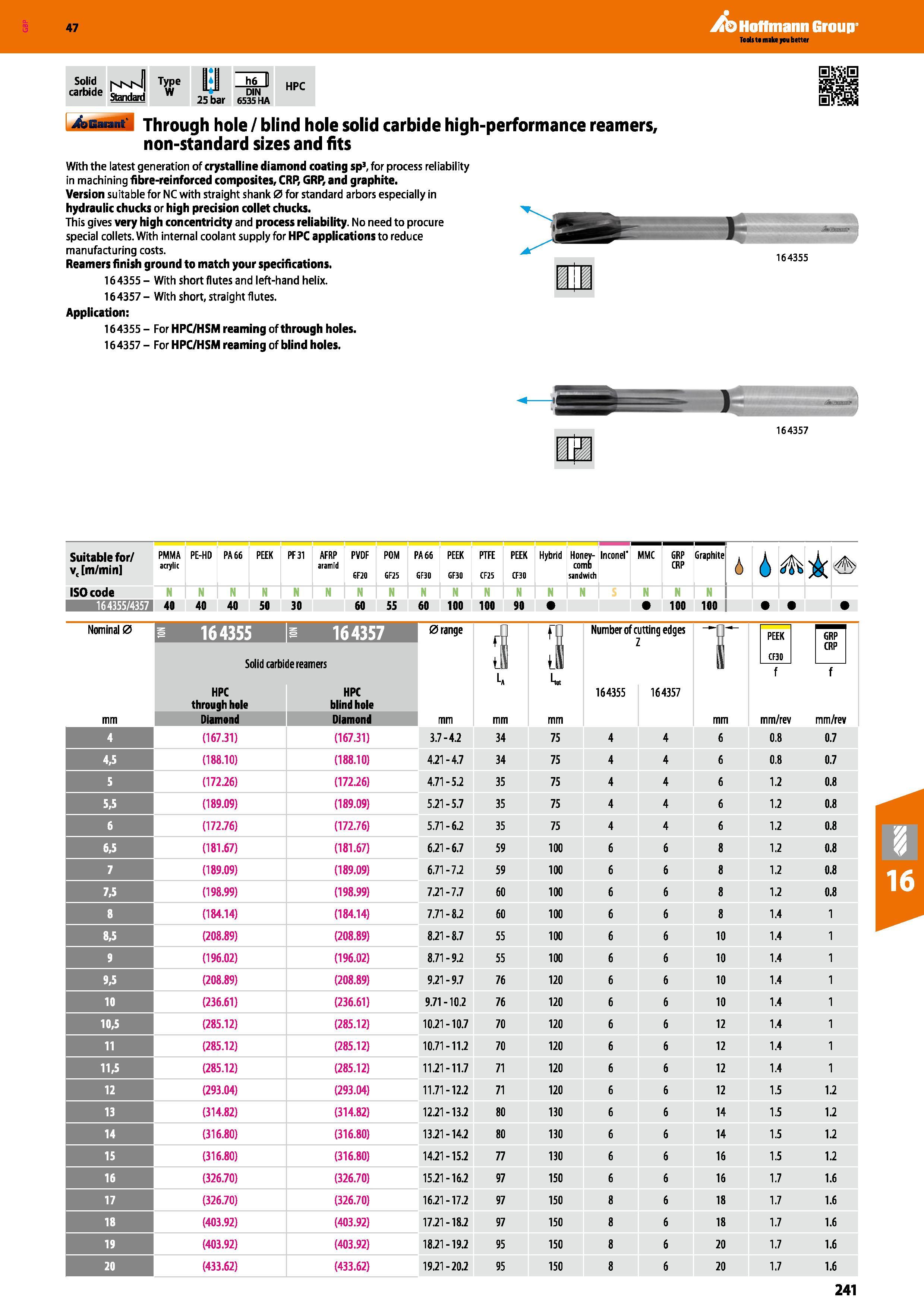

Hoffmann Group 47 4sbu M Through hole / blind hole solid carbide high-performance reamers, non-standard sizes and fits With the latest generation of crystalline diamond coating sp3, for process reliability in machining fibre-reinforced composites, CRP, GRP, and graphite. Version suitable for NC with straight shank 0 for standard arbors especially in hydraulic chucks or high precision collet chucks. This gives very high concentricity and process reliability. No need to procure special collets. With internal coolant supply for HPC applications to reduce manufacturing costs. Reamers finish ground to match your specifications. 164355 - With short flutes and left-hand helix. 164357 - With short, straight flutes. Application: 164355 - For HPC/HSM reaming of through holes. 164357 - For HPC/HSM reaming of blind holes. Suitable for/ PMMA v, m/min icr lk PE-HD PA 66 PEEK PF31 AFRP aramid PVDF 6F20 POM 6F25 PA 66 GF30 PEEK CF30 PTFE CF25 PEEK CF30 Hybrid Honey- comb sandwich Inconel' MMC GRP CRP Graphite 4 I ISO code N N Mm N Mm N Mm N Mm Mm N Mm Mm nn Mm N 164355/4357 40 40 50 30 60 55 60 100 100 90 100 100 9 9 9 Nominal 0 164355 164357 0 range Solid carbide reamers Number of cutting edges Z II PEEK CF30 f GRP CRP mm HPC through hole Diamond HPC blind hole Diamond mm 164355 164357 mm mm/rev mm/rev 4 (167.31) (167.31) 3.7-4.2 34 75 4 4 6 0.8 0.7 4,5 (188.10) (188.10) 4.21-4.7 34 75 4 4 6 0.8 0.7 5 (172.26) (172.26) 4.71-5.2 35 75 4 4 6 1.2 0.8 5,5 (189.09) (189.09) 5.21-5.7 35 75 4 4 6 1.2 0.8 6 (172.76) (172.76) 5.71-6.2 35 75 4 4 6 1.2 0.8 6,5 (181.67) (181.67) 6.21-6.7 59 100 6 6 8 1.2 0.8 7 (189.09) (189.09) 6.71-7.2 59 100 6 6 8 1.2 0.8 7,5 (198.99) (198.99) 7.21-7.7 60 100 6 6 8 1.2 0.8 (184.14) (184.14) 7.71-8.2 60 100 6 6 8 1.4 1 8,5 (208.89) (208.89) 8.21-8.7 55 100 6 6 10 1.4 1 9 (196.02) (196.02) 8.71-9.2 55 100 6 6 10 1.4 1 9,5 (208.89) (208.89) 9.21-9.7 76 120 6 6 10 1.4 1 10 (236.61) (236.61) 9.71-10.2 76 120 6 6 10 1.4 1 10,5 (285.12) (285.12) 10.21-10.7 70 120 6 6 12 1.4 1 11 (285.12) (285.12) 10.71-11.2 70 120 6 6 12 1.4 1 11,5 (285.12) (285.12) 11.21-11.7 71 120 6 6 12 1.4 1 12 (293.04) (293.04) 11.71-12.2 71 120 6 6 12 1.5 1.2 13 (314.82) (314.82) 12.21-13.2 80 130 6 6 14 1.5 1.2 14 (316.80) (316.80) 13.21-14.2 80 130 6 6 14 1.5 1.2 15 (316.80) (316.80) 14.21-15.2 77 130 6 6 16 1.5 1.2 16 (326.70) (326.70) 15.21-16.2 97 150 6 6 16 1.7 1.6 17 (326.70) (326.70) 16.21-17.2 97 150 8 6 18 1.7 1.6 18 (403.92) (403.92) 17.21-18.2 97 150 8 6 18 1.7 1.6 19 (403.92) (403.92) 18.21-19.2 95 150 8 6 20 1.7 1.6 20 (433.62) (433.62) 19.21-20.2 95 150 8 6 20 1.7 1.6 241 164355
