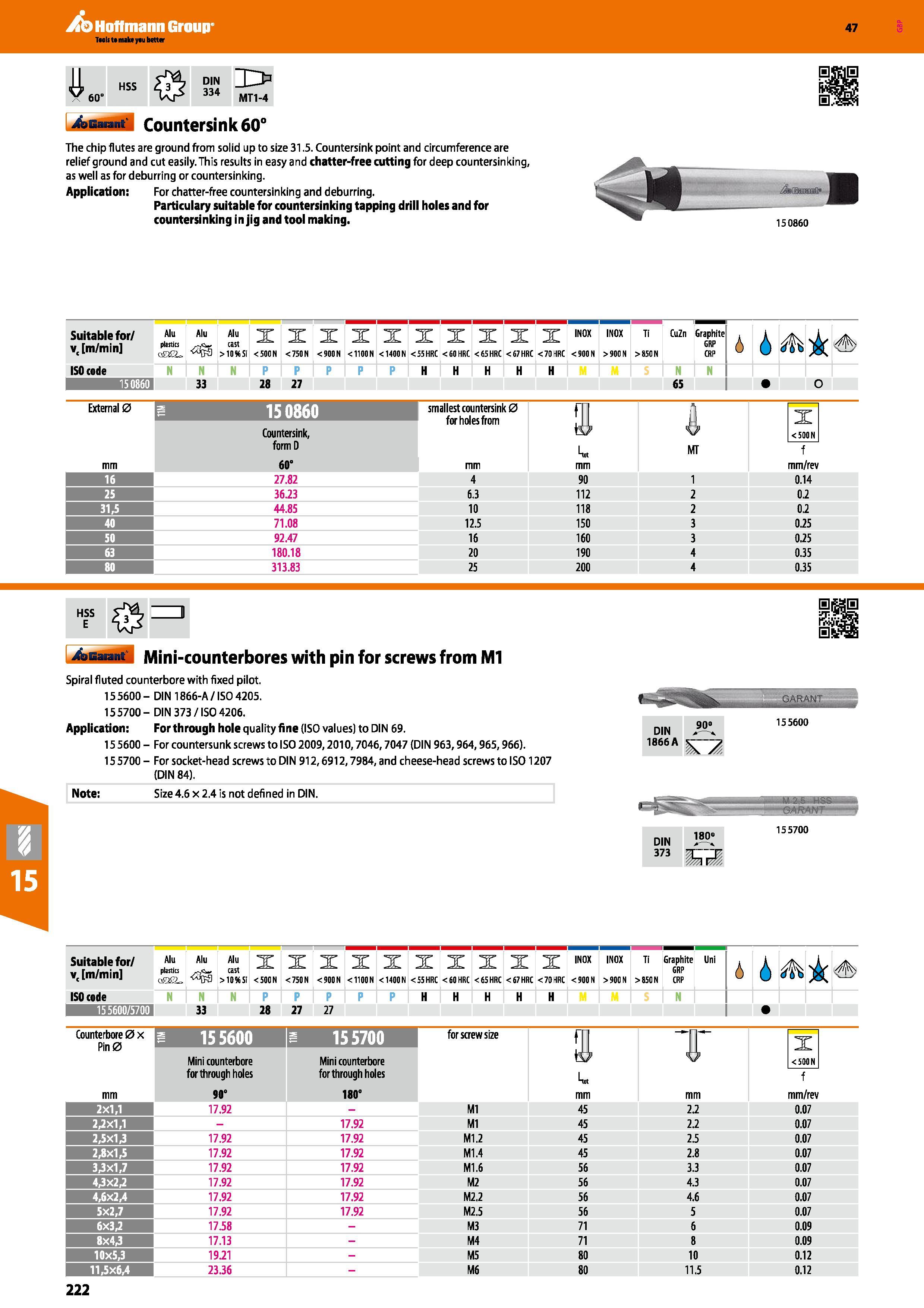

ib Hoffmann Group 47 DIN 334 n> MT1-4 bGaiant Countersink 60° The chip flutes are ground from solid up to size 31.5. Countersink point and circumference are relief ground and cut easily. This results in easy and chatter-free cutting for deep countersinking, as well as for deburring or countersinking. Application: For chatter-free countersinking and deburring. Particulary suitable for countersinking tapping drill holes and for countersinking in jig and tool making. 150860 Suitable for/ v, m/min Alu plastics Alu cast >10%Si X <500N X < 750 N X < 900 N XXX < 1100 N < 1400 N <55 HRC X < 60 HRC X <65 HRC X <67 HRC 3 IN0X IN0X < 70 HRC <900 N > 900 N Ti > 850 N CuZn Graphite CRP CRP A 6 ISO code nri N p P H nri nr 150860 33 28 27 65 o External 0 mm smallest countersink 0 for holes from mm L mm n e MT X <500N f mm/rev 16 27.82 4 90 1 0.14 25 36.23 6.3 112 2 0.2 31,5 44.85 10 118 2 0.2 40 71.08 12.5 150 3 0.25 50 92.47 16 160 3 0.25 63 180.18 20 190 4 0.35 80 313.83 25 200 4 0.35 HSS E Mini-counterbores with pin for screws from Ml Spiral fluted counterbore with fixed pilot. 15 5600 - DIN 1866-A / ISO 4205. 155700- DIN 373/ISO4206. Application: For through hole quality fine (ISO values) to DIN 69. 15 5600 - For countersunk screws to ISO 2009,2010,7046,7047 (DIN 963,964,965,966). 15 5700 - For socket-head screws to DIN 912,6912,7984, and cheese-head screws to IS01207 (DIN 84). Note: Size 4.6 x 2.4 is not defined in DIN. DIN 1866 A n 155600 DIN 180" 373 Haiyi 155700 Suitable for/ vc m/min Alu plastics Alu cast >10%Si X < 500 N X < 750 N X < 900 N XXX < 1100 N < 1400 N <55 HRC X X <60 HRC <65 HRC X <67 HRC 3 INOX INOX < 70 HRC <900 N > 900 N Ti >S50N Graphite GRP CRP Uni a 6 ISOcode nri nr- bn P H nn 155600/5700 33 28 27 27 Counterbore 0 x Pin0 mm i 155700 for screw size Lt mm T mm X <500N f mm/rev Mini counterbore for through holes J0" Mini counterbore for through holes 180° 2X1,1 17.92 - Ml 45 2.2 0.07 2,2x1,1 - 17.92 M1 45 2.2 0.07 2,5x1,3 17.92 17.92 Ml.2 45 2.5 0.07 2,8x1,5 17.92 17.92 Ml.4 45 2.8 0.07 3,3x1,7 17.92 17.92 Ml.6 56 3.3 0.07 4,3x2,2 17.92 17.92 M2 56 4.3 0.07 4,6x2,4 17.92 17.92 M2.2 56 4.6 0.07 5X2,7 17.92 17.92 M2.5 56 5 0.07 6x3,2 17.58 - M3 71 6 0.09 8x4,3 17.13 - M4 71 8 0.09 10x5,3 19.21 - M5 80 10 0.12 11,5x6,4 23.36 - M6 80 11.5 0.12 222
