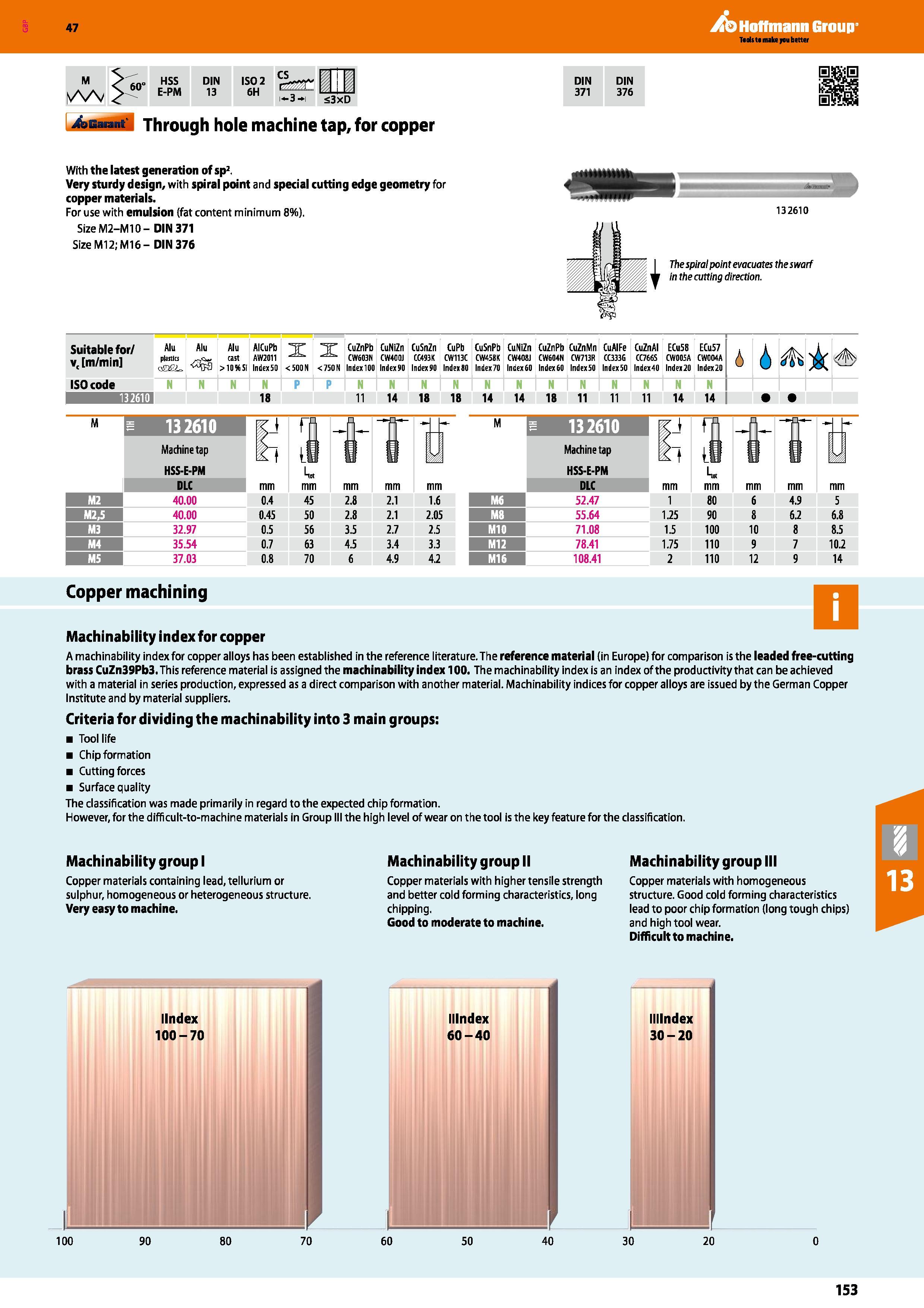

Hoffmann Group 47 HSS E-PM DIN 13 ISO 2 6H 3xD Garant Through hole machine tap, for copper DIN DIN 371 376 With the latest generation of sp2. Very sturdy design, with spiral point and special cutting edge geometry for copper materials. For use with emulsion (fat content minimum 8%). SizeM2-M10- DIN 371 SizeM12;M16- DIN 376 132610 The spiral point evacuates the swarf in the cutting direction. Suitable for/ v, m/min Alu plastics oSEL, Alu cast > 10 % Si AlCuPb AW2011 Index 50 X < 500N X < 750 N CuZnPb CW603N Index 100 CuNiZn CW400J Index 90 CuSnZn CC493K Index 90 CuPb CW113C Index 80 CuSnPb CW458K Index 70 CuNiZn CW408J Index 60 CuZnPb CW604N Index 60 CuZnMn CW713R Index 50 CuAIFe CC3336 Index 50 CuZnAI CC766S Index 40 ECu58 CW005A Index 20 ECu57 CW004A Index 20 4 i i (. ISO code nri nri N nri P nri nri nri nri nri nri nri nri nn nri nri N 132610 18 ii 14 18 18 14 14 18 11 11 11 14 14 132610 Machine tap HSS-E-PM DLC 40.00 40.00 32.97 35.54 37.03 132610 Machine tap HSS-E-PM DLC 52.47 55.64 71.08 78.41 108.41 mm 1 1.25 1.5 1.75 2 L mm 80 90 100 110 110 mm 6 8 10 9 12 mm 4.9 6.2 8 7 9 mm 5 6.8 8.5 10.2 14 Copper machining Machinability index for copper A machinability index for copper alloys has been established in the reference literature. The reference material (in Europe) for comparison is the leaded free-cutting brass CuZn39Pb3.This reference material is assigned the machinability index 100. The machinability index is an index of the productivity that can be achieved with a material in series production, expressed as a direct comparison with another material. Machinability indices for copper alloys are issued by the German Copper Institute and by material suppliers. Criteria for dividing the machinability into 3 main groups: Tool life Chip formation Cutting forces Surface quality The classification was made primarily in regard to the expected chip formation. However, for the difficult-to-machine materials in Group III the high level of wear on the tool is the key feature for the classification. Machinability group I Copper materials containing lead, tellurium or sulphur, homogeneous or heterogeneous structure. Very easy to machine. Machinability group II Copper materials with higher tensile strength and better cold forming characteristics, long chipping. Good to moderate to machine. Machinability group III Copper materials with homogeneous structure. Good cold forming characteristics lead to poor chip formation (long tough chips) and high tool wear. Difficult to machine. 153
