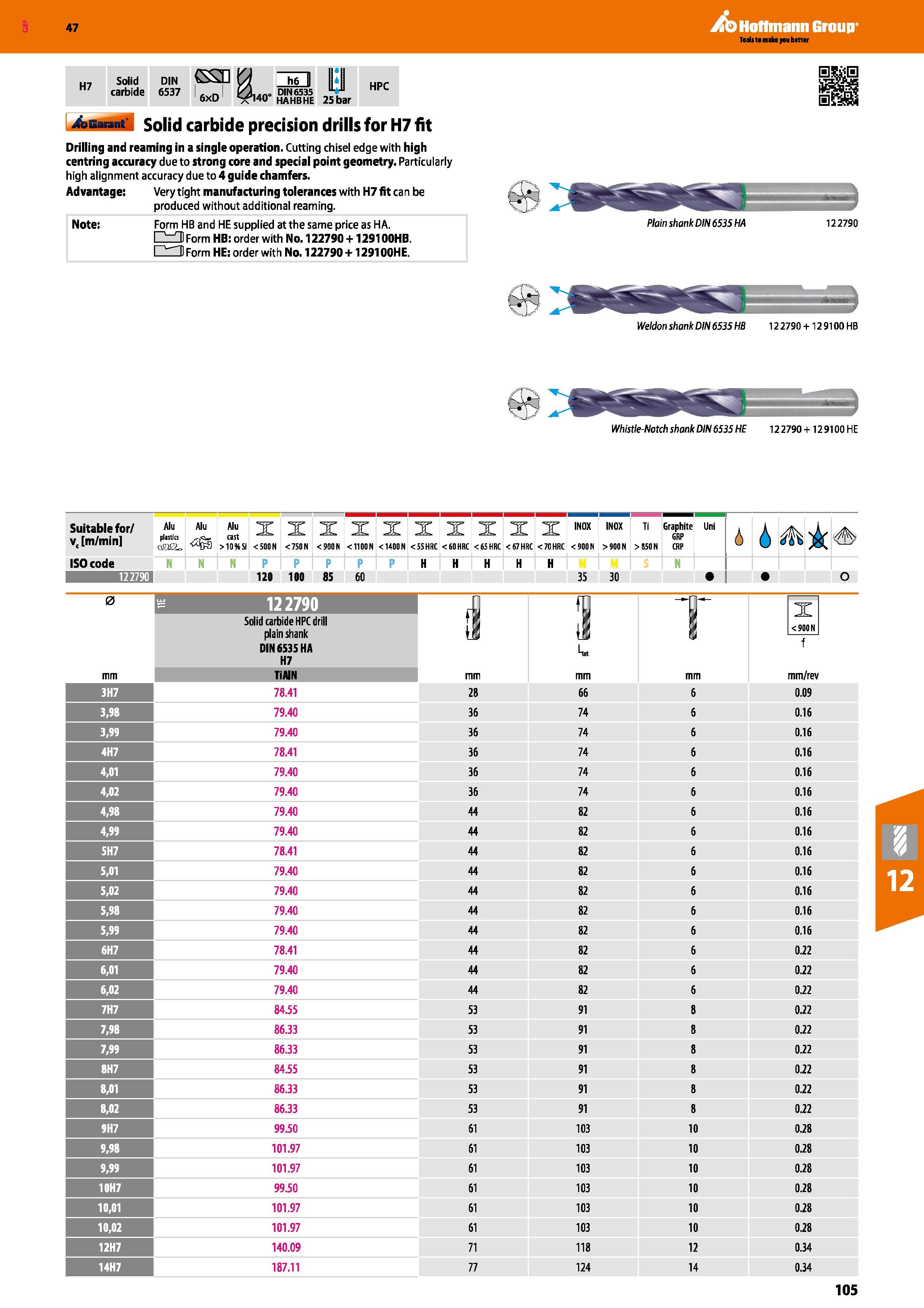

Hoffmann Group 47 H7 Solid DIN ££n W h6 II 1 1 Hpc carbide 6537 6xD Garant solid carbide precision drills for H7 fit Drilling and reaming in a single operation. Cutting chisel edge with high centring accuracy due to strong core and special point geometry. Particularly high alignment accuracy due to 4 guide chamfers. Advantage: Very tight manufacturing tolerances with H7 fit can be produced without additional reaming. Note: Form HB and HE supplied at the same price as HA. n l Form HB: order with No. 122790 +1291 OOHB. CUD Form HE: order with No. 122790+1291OOHE. Plain shank DIN 6535 HA 122790 Weldon shank DIN 6535 HB 122790 + 129100HB Whistle-Notch shank DIN 6535 HE 122790+ 129100HE Suitable for/ v( m/min Alu plastics crS3EL, Alu cast >109651 X < 500 N X < 750 N X < 900 N X < 1100 N X < 1400 N X <55 HRC X <60 HRC X <65 HRC X <67 HRC X <70 HRC INOX <900N INOX >900N Ti > B50N Graphite GRP CRP Uni 6 i ISO code N N P H N 122790 120 100 85 60 35 30 O 0 N 122790 1 L T Solid carbide HPC drill plain shank DIN 6535 HA H7 TiAIN mm 78.41 28 66 6 79.40 36 74 6 79.40 36 74 6 78.41 36 74 6 79.40 36 74 6 79.40 36 74 6 79.40 44 82 6 79.40 44 82 6 78.41 44 82 6 79.40 44 82 6 79.40 44 82 6 79.40 44 82 6 79.40 44 82 6 78.41 44 82 6 79.40 44 82 6 79.40 44 82 6 84.55 53 91 8 86.33 53 91 8 86.33 53 91 8 84.55 53 91 8 86.33 53 91 8 86.33 53 91 8 99.50 61 103 10 101.97 61 103 10 101.97 61 103 10 99.50 61 103 10 101.97 61 103 10 101.97 61 103 10 140.09 71 118 12 187.11 77 124 14 f mm/rev 0.09 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.16 0.22 0.22 0.22 0.22 0.22 0.22 0.22 0.22 0.22 0.28 0.28 0.28 0.28 0.28 0.28 0.34 0.34 105
