980 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.980

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 980 0980 ENG Lab2u

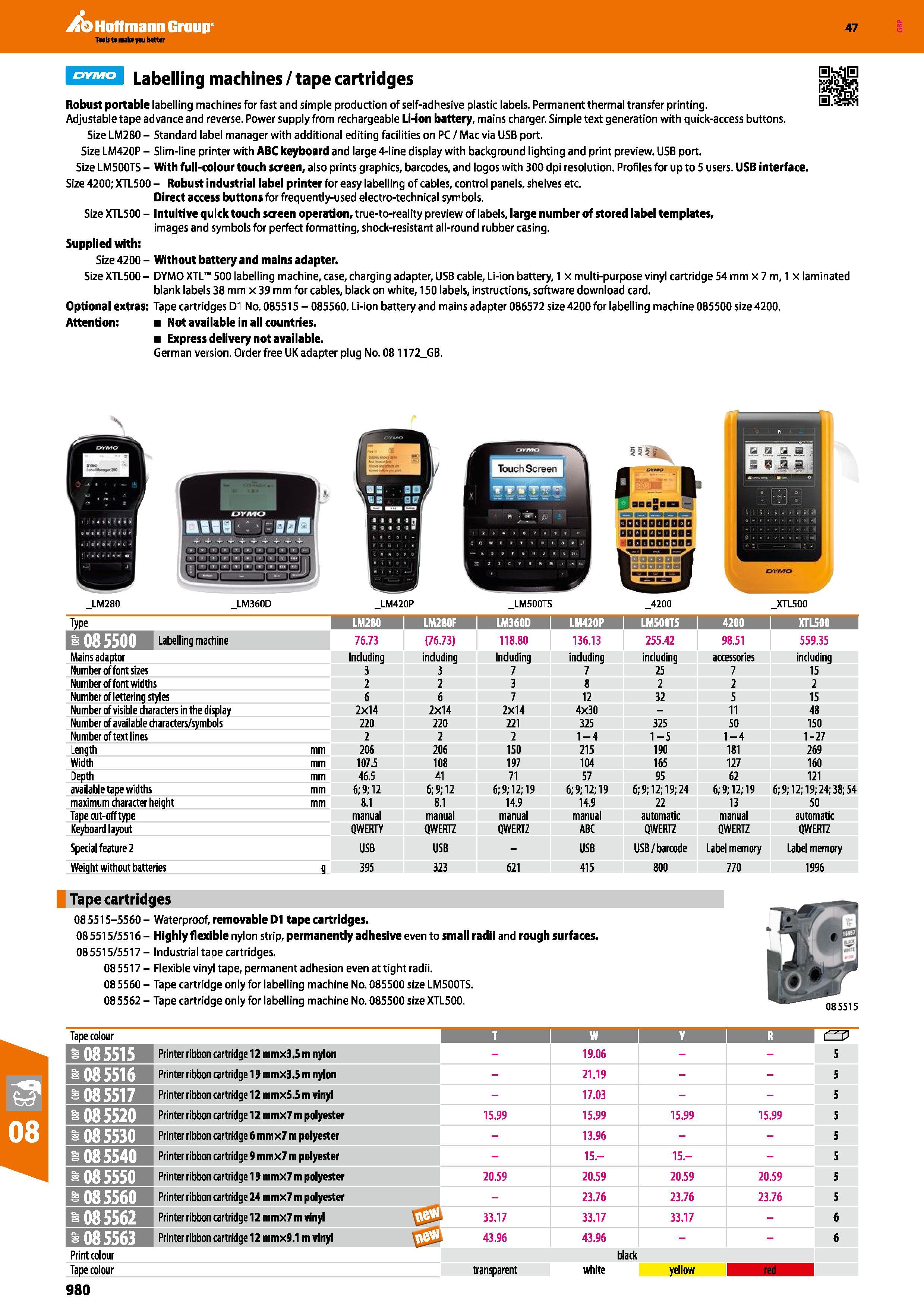

Hoffmann Group 47 Labelling machines / tape cartridges Robust portable labelling machines for fast and simple production of self-adhesive plastic labels. Permanent thermal transfer printing. Adjustable tape advance and reverse. Power supply from rechargeable Li-ion battery, mains charger. Simple text generation with quick-access buttons. Size LM280 - Standard label manager with additional editing facilities on PC / Mac via USB port. Size LM420P - Slim-line printer with ABC keyboard and large 4-line display with background lighting and print preview. USB port. Size LM500TS - With full-colour touch screen, also prints graphics, barcodes, and logos with 300 dpi resolution. Profiles for up to 5 users. USB interface. Size 4200; XTL500 - Robust industrial label printer for easy labelling of cables, control panels, shelves etc. Direct access buttons for frequently-used electro-technical symbols. Size XTL500 - Intuitive quick touch screen operation, true-to-reality preview of labels, large number of stored label templates, images and symbols for perfect formatting, shock-resistant all-round rubber casing. Supplied with: Size 4200 - Without battery and mains adapter. Size XTL500 - DYMO XTL 500 labelling machine, case, charging adapter, USB cable, Li-ion battery, 1 x multi-purpose vinyl cartridge 54 mm x 7 m, 1 x laminated blank labels 38 mm x39 mm for cables, black on white, 150 labels, instructions, software download card. Optional extras: Tape cartridges D1 No. 085515 - 085560. Li-ion battery and mains adapter 086572 size 4200 for labelling machine 085500 size 4200. Attention: Not available in all countries. Express delivery not available. German version. Order free UK adapter plug No. 081172_GB. \ SSSS gooooooooQ _LM280 _LM360D _LM420P _LM500TS _4200 _XTL500 Type EEUHfl LM280F LM360D I LM420P LM500TS 4200 XTL500 Ullll-L-TlTfl Labellina machine 76.73 (76.73) 118.80 136.13 255.42 98.51 559.35 Mains adaptor Including induding Including including including accessories including Number of font sizes 3 3 7 7 25 7 15 Number of font widths 2 2 3 8 2 2 2 Number of lettering styles 6 6 7 12 32 5 15 Number of visible characters in the display 2x14 2X14 2X14 4X30 - 11 48 Number of available characters/symbols 220 220 221 325 325 50 150 Number of textlines 2 2 2 1-4 1-5 1-4 1-27 Length mm 206 206 150 215 190 181 269 Width mm 107.5 108 197 104 165 127 160 Depth mm 46.5 41 71 57 95 62 121 available tape widths mm 6; 9; 12 6; 9; 12 6; 9; 12; 19 6; 9; 12; 19 6; 9; 12; 19; 24 6; % 12; 19 6; 9; 12; 19; 24; 38; 54 maximum character height mm 8.1 8.1 14.9 14.9 22 13 50 Tape cut-off type manual manual manual manual automatic manual automatic Keyboard layout QWERTY QWERTZ QWERTZ ABC QWERTZ QWERTZ QWERTZ Special feature 2 USB USB - USB USB /barcode Label memory Label memory Weight without batteries g 395 323 621 415 800 770 1996 Tape cartridges 08 5515-5560 - Waterproof, removable D1 tape cartridges. 085515/5516 - Highly flexible nylon strip, permanently adhesive even to small radii and rough surfaces. 085515/5517- Industrial tape cartridges. 085517 - Flexible vinyl tape, permanent adhesion even at tight radii. 08 5560 - Tape cartridge only for labelling machine No. 085500 size LM500TS. 08 5562 - Tape cartridge only for labelling machine No. 085500 size XTL500. 085515 Tape colour T w Y R O p I i Printer ribbon cartridae 12 mmx3.5 m nvlon - 19.06 5 pj I MU ."J Printer ribbon cartridae 19 mmx3.5 m nvlon - 21.19 5 H I MU Printer ribbon cartridae 12 mmx5.5 m vimri - 17.03 5 085520 Printer ribbon cartridge 12 mmx7 m polyester 15.99 15.99 15.99 15.99 5 lliiiilll Printer ribbon cartridge 6 mmx7 m polyester - 13.96 5 J Printer ribbon cartridqe 9mmx7m polyester - 15.- 15.- - 5 Printer ribbon cartridge 19 mmx7 m polyester 20.59 20.59 20.59 20.59 5 3lU tt'llJ Print0, ribbon cartridge 24 mmx7 m polyester - 23.76 23.76 23.76 5 085562 Printer ribbon cartridge 12 mmx7 m vinyl 33.17 33.17 33.17 - 6 085563 Printer ribbon cartridge 12 mmx9.1 m vinyl 43.96 43.96 6 Print colour black Tape colour 980 transparent white yellow red
