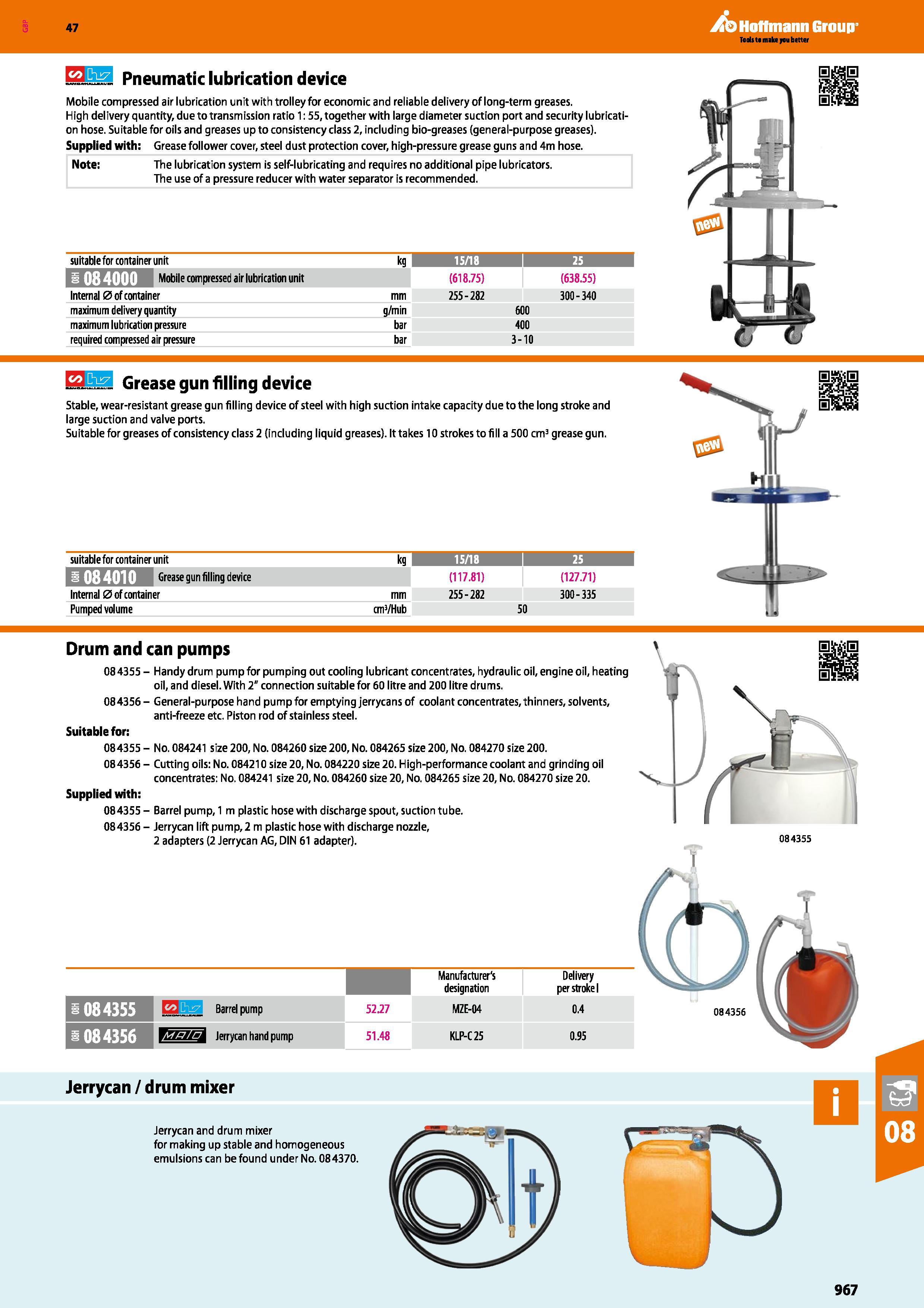

Hoffmann Group 47 co h js7 Pneumatic lubrication device Mobile compressed air lubrication unit with trolley for economic and reliable delivery of long-term greases. High delivery quantity, due to transmission ratio 1:55, together with large diameter suction port and security lubrication hose. Suitable for oils and greases up to consistency class 2, including bio-greases (general-purpose greases). Supplied with: Grease follower cover, steel dust protection cover, high-pressure grease guns and 4m hose. Note: The lubrication system is self-lubricating and requires no additional pipe lubricators. The use of a pressure reducer with water separator is recommended. suitable for container unit kg 15/18 1 25 IlJit l llll Mobile comnressed air lubrication unit (618.75) (638.55) Internal 0 of container mm 255-282 300-340 maximum delivery quantity g/min 600 maximum lubrication pressure bar 400 required compressed air pressure bar 3-10 E3B5U Grease gun filling device Stable, wear-resistant grease gun filling device of steel with high suction intake capacity due to the long stroke and large suction and valve ports. Suitable for greases of consistency class 2 (including liquid greases). It takes 10 strokes to fill a 500 cm3 grease gun. suitable for container unit kg 15/18 I 25 Grease gun filling device (117.81) (127.71) Internal 0 of container mm 255-282 300-335 Pumped volume cmVHub 50 Drum and can pumps 084355 - Handy drum pump for pumping out cooling lubricant concentrates, hydraulic oil, engine oil, heating oil, and diesel. With 2" connection suitable for 60 litre and 200 litre drums. 084356 - General-purpose hand pump for emptying jerrycans of coolant concentrates, thinners, solvents, anti-freeze etc. Piston rod of stainless steel. Suitable for: 084355- 084356- Supplied with: 084355- 084356- No. 084241 size 200, No. 084260 size 200, No. 084265 size 200, No. 084270 size 200. Cutting oils: No. 084210 size 20, No. 084220 size 20. High-performance coolant and grinding oil concentrates: No. 084241 size 20, No. 084260 size 20, No. 084265 size 20, No. 084270 size 20. Barrel pump, 1 m plastic hose with discharge spout, suction tube. Jerrycan lift pump, 2 m plastic hose with discharge nozzle, 2 adapters (2 Jerrycan AG, DIN 61 adapter). Manufacturer's designation Delivery per stroke I Barrel pump 52.27 MZE-04 0.4 EE2EE1 TiSt:/t k ierrvcan hand DumD 51.48 KLP-C 25 0.95 084356 Jerrycan / drum mixer Jerrycan and drum mixer for making up stable and homogeneous emulsions can be found under No. 084370. 967
