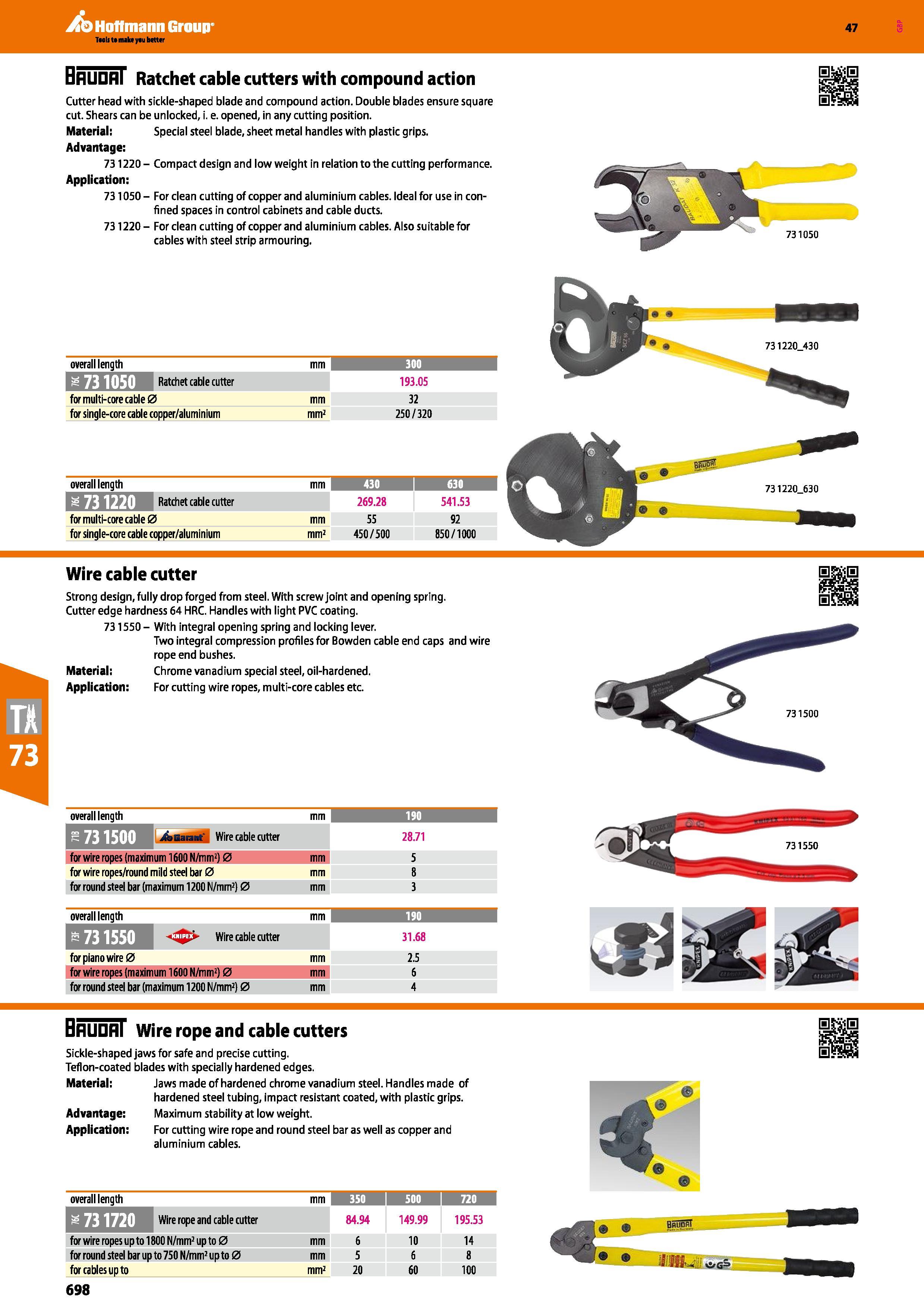

Hoffmann Group 47 Ratchet cable cutters with compound action Cutter head with sickle-shaped blade and compound action. Double blades ensure square cut. Shears can be unlocked, i. e. opened, in any cutting position. Material; Special steel blade, sheet metal handles with plastic grips. Advantage: 731220- Compact design and low weight in relation to the cutting performance. Application: 731050 - For clean cutting of copper and aluminium cables. Ideal for use in confined spaces in control cabinets and cable ducts. 731220 - For clean cutting of copper and aluminium cables. Also suitable for cables with steel strip armouring. overall length mm 300 i 1 73 1050 mmm 193.05 for multi-core cable 0 mm 32 for single-core cable copper/aluminium mm2 250/320 overall length mm 430 1 30 I 731220 mmm 269.28 541.53 for multi-core cable 0 mm 55 92 for single-core cable copper/aluminium mm2 450/500 850/1000 731220_630 Wire cable cutter Strong design, fully drop forged from steel. With screw joint and opening spring. Cutter edge hardness 64 HRC. Handles with light PVC coating. 731550 - With integral opening spring and locking lever. Two integral compression profiles for Bowden cable end caps and wire rope end bushes. Material: Chrome vanadium special steel, oil-hardened. Application: For cutting wire ropes, multi-core cables etc. overall length mm 190 I Wire cable cutter 28.71 for wire ropes (maximum 1600 N/mmz) 0 mm 5 for wire ropes/round mild steel bar 0 mm 8 for round steel bar (maximum 1200 N/mm2) 0 mm 3 overall length mm 190 f -<3 > Wire cable cutter 31.68 for piano wire 0 mm 2.5 for wire ropes (maximum 1600 N/mmz) 0 mm 6 for round steel bar (maximum 1200 N/mm2) 0 mm 4 BhUDHI Wire rope and cable cutters Sickle-shaped jaws for safe and precise cutting. Teflon-coated blades with specially hardened edges. Material: Jaws made of hardened chrome vanadium steel. Handles made of hardened steel tubing, impact resistant coated, with plastic grips. Advantage: Maximum stability at low weight. Application: For cutting wire rope and round steel bar as well as copper and aluminium cables. overall length gV/lr/JlH Wire rope and cable cutter for wire ropes up to 1800 N/mm2 up to 0 for round steel bar up to 750 N/mm2 up to 0 for cables up to 698 350 500 720 84.94 mm 6 mm 5 mm2 20 149.99 10 6 60 195.53 14 8 100 lift-
