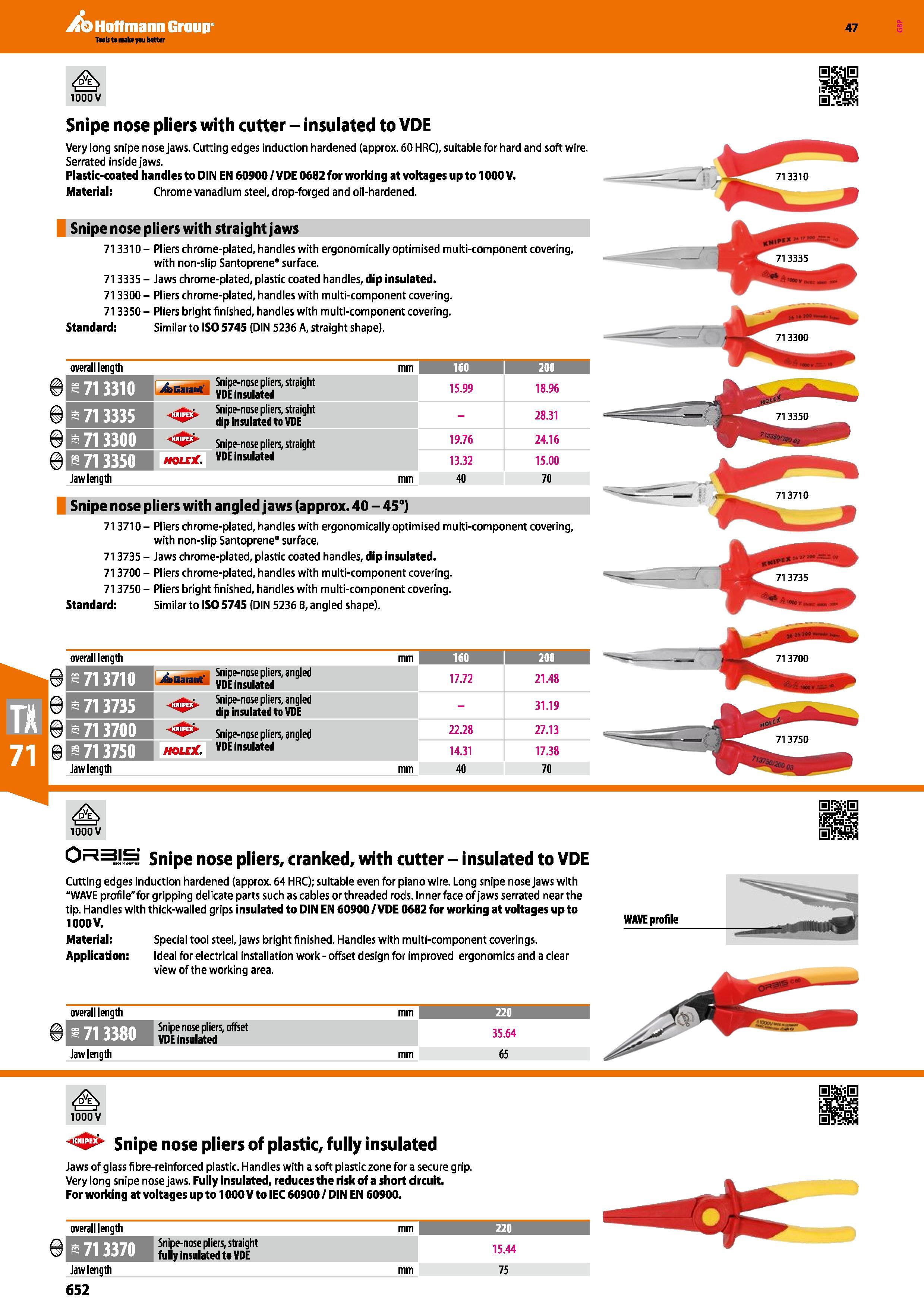

Hoffmann Group 47 SK 1000 V ifSEi 02 Snipe nose pliers with cutter - insulated to VDE Very long snipe nose jaws. Cutting edges induction hardened (approx. 60 HRC), suitable for hard and soft wire. Serrated inside jaws. Plastic-coated handles to DIN EN 60900 / VDE 0682 for working at voltages up to 1000 V. Material; Chrome vanadium steel, drop-forged and oil-hardened. Snipe nose pliers with straight jaws 713310- Pliers chrome-plated, handles with ergonomically optimised multi-component covering, with non-slip Santoprene surface. 713335 - Jaws chrome-plated, plastic coated handles, dip insulated. 713300 - Pliers chrome-plated, handles with multi-component covering. 713350 - Pliers bright finished, handles with multi-component covering. Standard: Similar to ISO 5745 (DIN 5236 A, straight shape). C7 d C7 overall length mm 160 1 200 s 713310 i&ftaiant Snipe-nose pliers, straight VDE insulated 15.99 18.96 fe 713335 Snipe-nose pliers, straight dip insulated to VDE - 28.31 fe 713300 Snipe-nose pliers, straight 19.76 24.16 HQLSX. VDE insulated 13.32 15.00 Jaw length mm 40 70 Snipe nose pliers with angled jaws (approx. 40 - 45°) 713710 - Pliers chrome-plated, handles with ergonomically optimised multi-component covering, with non-slip Santoprene surface. 713735 - Jaws chrome-plated, plastic coated handles, dip insulated. 713700 - Pliers chrome-plated, handles with multi-component covering. 713750 - Pliers bright finished, handles with multi-component covering. Standard: Similar to ISO 5745 (DIN 5236 B, angled shape). / e\ 1000 V 71 3710 / I J/ IV overall length mm 160 KJ d C7 s 713710 .Xbjiarant Snipe-nose pliers, angled VDE insulated 17.72 21.48 r\ fe 713735 Snipe-nose pliers, angled dip insulated to VDE - 31.19 a fe 713700 Snipe-nose pliers, angled 22.28 27.13 Q fi 713750 HOLDf. VDE insulated 14.31 17.38 Jaw length mm 40 70 Snipe nose pliers, cranked, with cutter - insulated to VDE Cutting edges induction hardened (approx. 64 HRC); suitable even for piano wire. Long snipe nose jaws with "WAVE profile" for gripping delicate parts such as cables or threaded rods. Inner face of jaws serrated near the tip. Handles with thick-walled grips insulated to DIN EN 60900/VDE 0682 for working at voltages upto 1000V. Material; Special tool steel, jaws bright finished. Handles with multi-component coverings. Application: Ideal for electrical installation work - offset design for improved ergonomics and a clear view of the working area. WAVE profile overall length mm 220 C\ Snipe nose pliers, offset U 2lEfiU l VDE insulated 35.64 Jaw length mm 65 1000 V Snipe nose pliers of plastic, fully insulated Jaws of glass fibre-reinforced plastic. Handles with a soft plastic zone for a secure grip. Very long snipe nose jaws. Fully insulated, reduces the risk of a short circuit. For working at voltages upto 1000V to IEC 60900/ DIN EN 60900. Cl C7 overall length mm 220 Snipe-nose pliers, straight fully insulated to VDE 15.44 Jaw length mm 75 652
