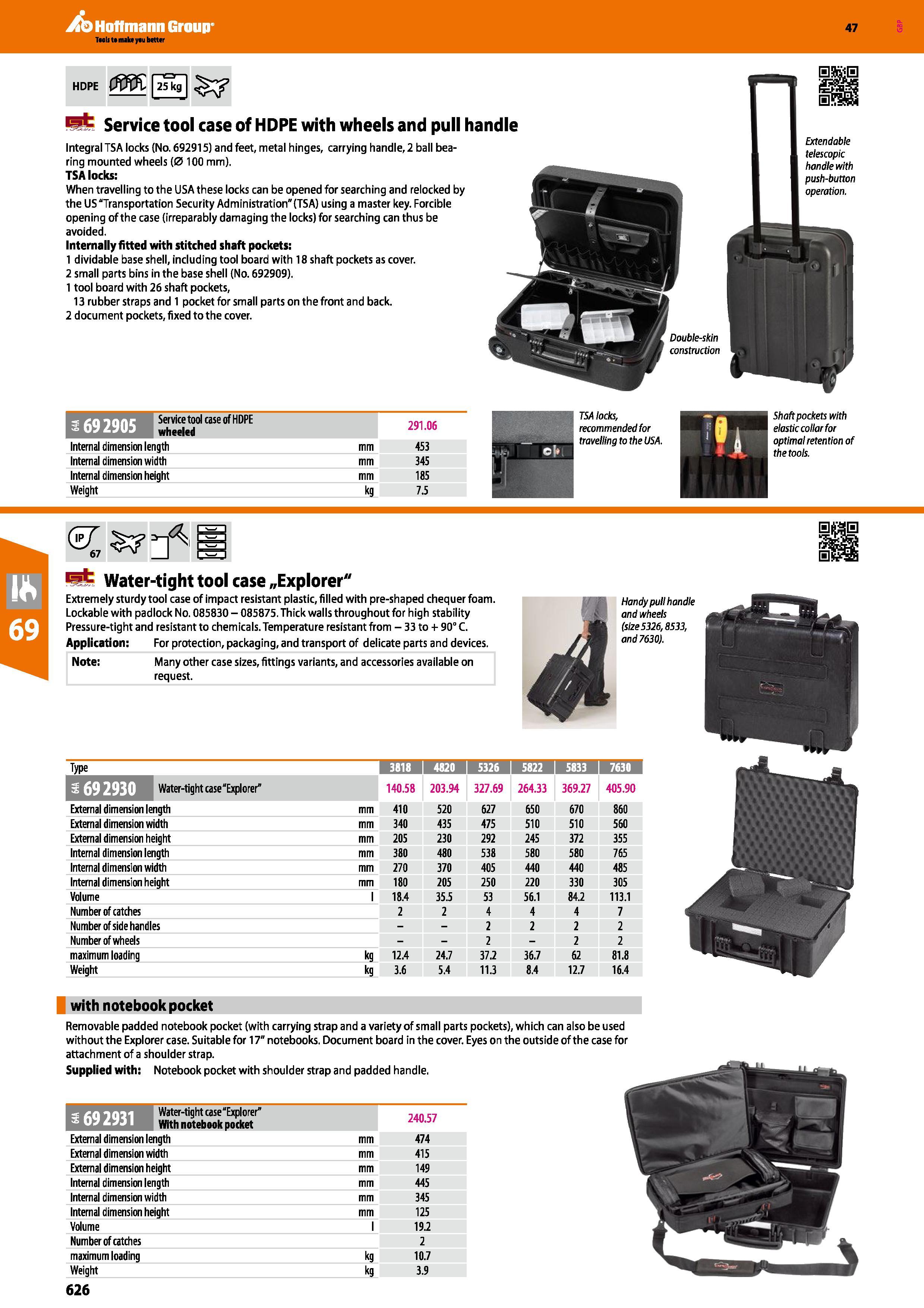

HDPE mfe Service tool case of HDPE with wheels and pull handle Integral TSA locks (No. 692915) and feet, metal hinges, carrying handle, 2 ball bearing mounted wheels (0 100 mm). TSA locks: When travelling to the USA these locks can be opened for searching and relocked by the US “Transportation Security Administration" (TSA) using a master key. Forcible opening of the case (irreparably damaging the locks) for searching can thus be avoided. Internally fitted with stitched shaft pockets: 1 dividable base shell, including tool board with 18 shaft pockets as cover. 2 small parts bins in the base shell (No. 692909). 1 tool board with 26 shaft pockets, 13 rubber straps and 1 pocket for small parts on the front and back. 2 document pockets, fixed to the cover. Extendable telescopic handle with push-button operation. Service tool case of HDPE wheeled 291.06 Internal dimension length mm 453 Internal dimension width mm 345 Internal dimension height mm 185 Weight kg 7.5 TSA locks, recommended for travelling to the USA. Shaft pockets with elastic collar for optimal retention of the tools. n I Water-tight tool case „Explorer" Extremely sturdy tool case of impact resistant plastic, filled with pre-shaped chequer foam. Lockable with padlock No. 085830 - 085875. Thick walls throughout for high stability Pressure-tight and resistant to chemicals. Temperature resistant from - 33 to + 90° C. Application: For protection, packaging, and transport of delicate parts and devices. Note: Many other case sizes, fittings variants, and accessories available on request. Handy pull handle and wheels (size5326,8533, and 7630). Type 3818 1 4820 1 5326 I 5822 I 5833 I 7630 Water-tight case "Explorer” 140.58 203.94 327.69 264.33 369.27 405.90 External dimension length mm 410 520 627 650 670 860 External dimension width mm 340 435 475 510 510 560 External dimension height mm 205 230 292 245 372 355 Internal dimension length mm 380 480 538 580 580 765 Internal dimension width mm 270 370 405 440 440 485 Internal dimension height mm 180 205 250 220 330 305 Volume 1 18.4 35.5 53 56.1 84.2 113.1 Number of catches 2 2 4 4 4 7 Number of side handles 2 2 2 2 Number of wheels 2 - 2 2 maximum loading kg 12.4 24.7 37.2 36.7 62 81.8 Weight kg 3.6 5.4 11.3 8.4 12.7 16.4 with notebook pocket Removable padded notebook pocket (with carrying strap and a variety of small parts pockets), which can also be used without the Explorer case. Suitable for 17" notebooks. Document board in the cover. Eyes on the outside of the case for attachment of a shoulder strap. Supplied with: Notebook pocket with shoulder strap and padded handle. Water-tight case“Explorer” 1 With notebook pocket 240.57 External dimension length mm 474 External dimension width mm 415 External dimension height mm 149 Internal dimension length mm 445 Internal dimension width mm 345 Internal dimension height mm 125 Volume 1 19.2 Number of catches 2 maximum loading kg 10.7 Weight kg 3.9 626
