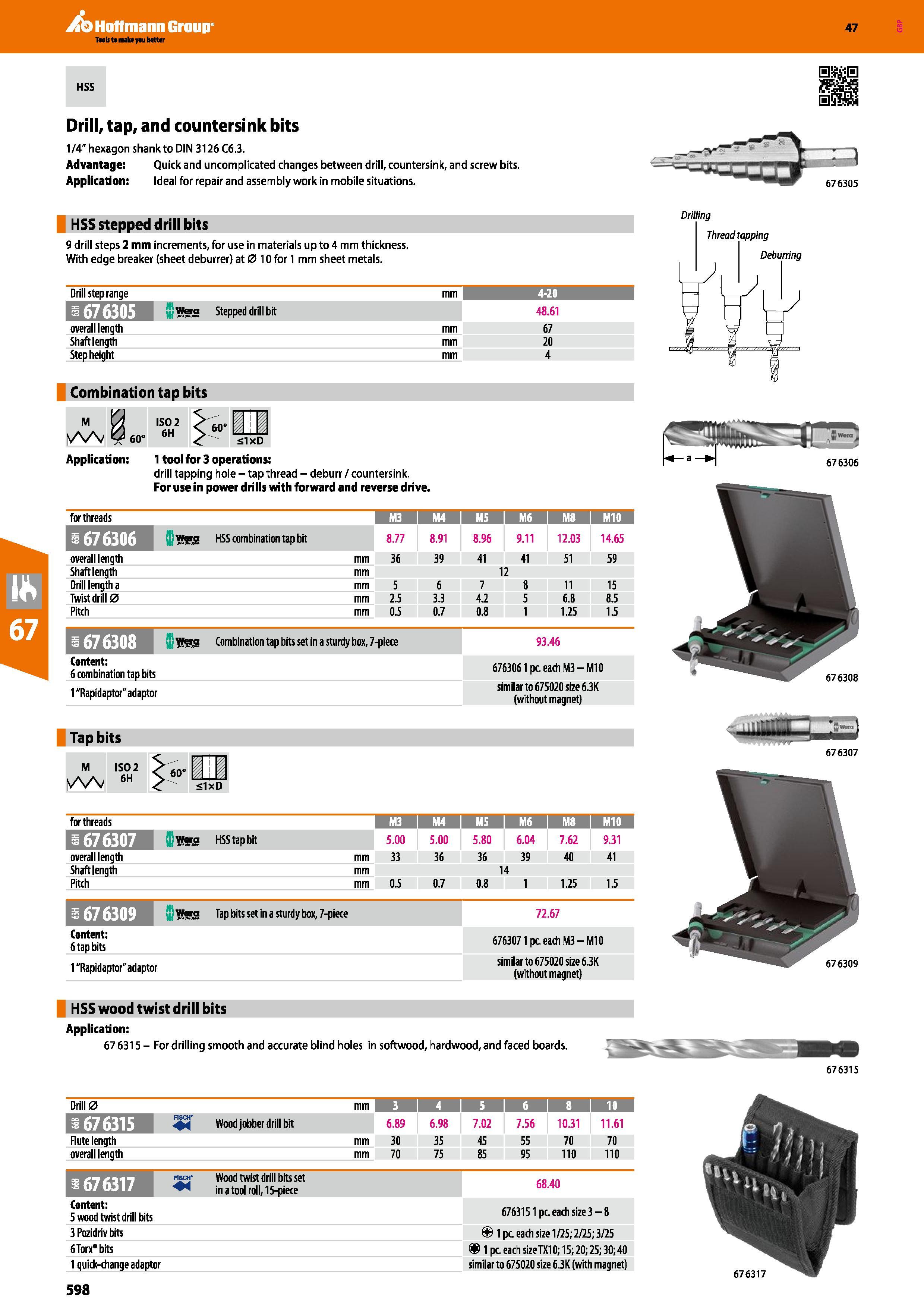

Aq Hoffmann Group 47 HSS Drill, tap, and countersink bits 1/4" hexagon shank to DIN 3126 C6.3. Advantage: Quick and uncomplicated changes between drill, countersink, and screw bits. Application: Ideal for repair and assembly work in mobile situations. HSS stepped drill bits 9 drill steps 2 mm increments, for use in materials up to 4 mm thickness. With edge breaker (sheet deburrer) at 0 10 for 1 mm sheet metals. Drill step range mm 4-20 ffiwara stepped drill bit 48.61 overall length mm 67 Shaft length mm 20 Step height mm 4 Combination tap bits Drilling M na/v Application: 1 60° ISO 2 6H 60“ SlxD 1 tool for 3 operations: drill tapping hole - tap thread - deburr / countersink. For use in power drills with forward and reverse drive. for threads 1676306 wttra MSS combination tap bit 8.77 8.91 8.96 9.11 12.03 14.65 overall length mm 36 39 41 41 51 59 Shaft length mm 12 Drill length a mm 5 6 7 8 11 15 Twist drill 0 mm 2.5 3.3 4.2 5 6.8 8.5 Pitch mm 0.5 0.7 0.8 1 1.25 1.5 16 wgra Combination tap bits set in a sturdy box, 7-piece 93.46 Content: 6 combination tap bits 676306 Ipc. each M3 -M10 1 "Rapidaptor" adaptor similar to 675020 size 6.3K (without magnet) Tap bits M ISO 2 6H 60" S1xD for threads 11676307 ffi'SKS MSS tap bit 5.00 5.00 5.80 6.04 7.62 9.31 overall length mm 33 36 36 39 40 41 Shaft length mm 14 Pitch mm 0.5 0.7 0.8 1 1.25 1.5 16 Ul w ra Tap bits set in a sturdy box, 7-piece 72.67 Content: 6 tap bits 6763071 pc. each M3 -M10 1"Rapidaptor" adaptor similar to 675020 size 6.3K (without magnet) HSS wood twist drill bits Application: 676315 - For drilling smooth and accurate blind holes in softwood, hardwood, and faced boards. 676315 Drill 0 mm 3 1 4 1 5 1 6 8 10 11676315 Wood jobber drill bit 6.89 6.98 7.02 7.56 10.31 11.61 Flute length mm 30 35 45 55 70 70 overall length mm 70 75 85 95 110 110 1 676317 qspif Wood twist drill bits set in a tool roll, 15-piece 68.40 Content: 5 wood twist drill bits 6763151 pc. each size 3 8 3 Pozidriv bits Ipc. each size 1/25; 2/25; 3/25 6 Torx” bits 1 pc. each size TX10; 15; 20; 25; 30; 40 1 quick-change adaptor similar to 675020 size 6.3K (with magnet) 598 676306 676309
