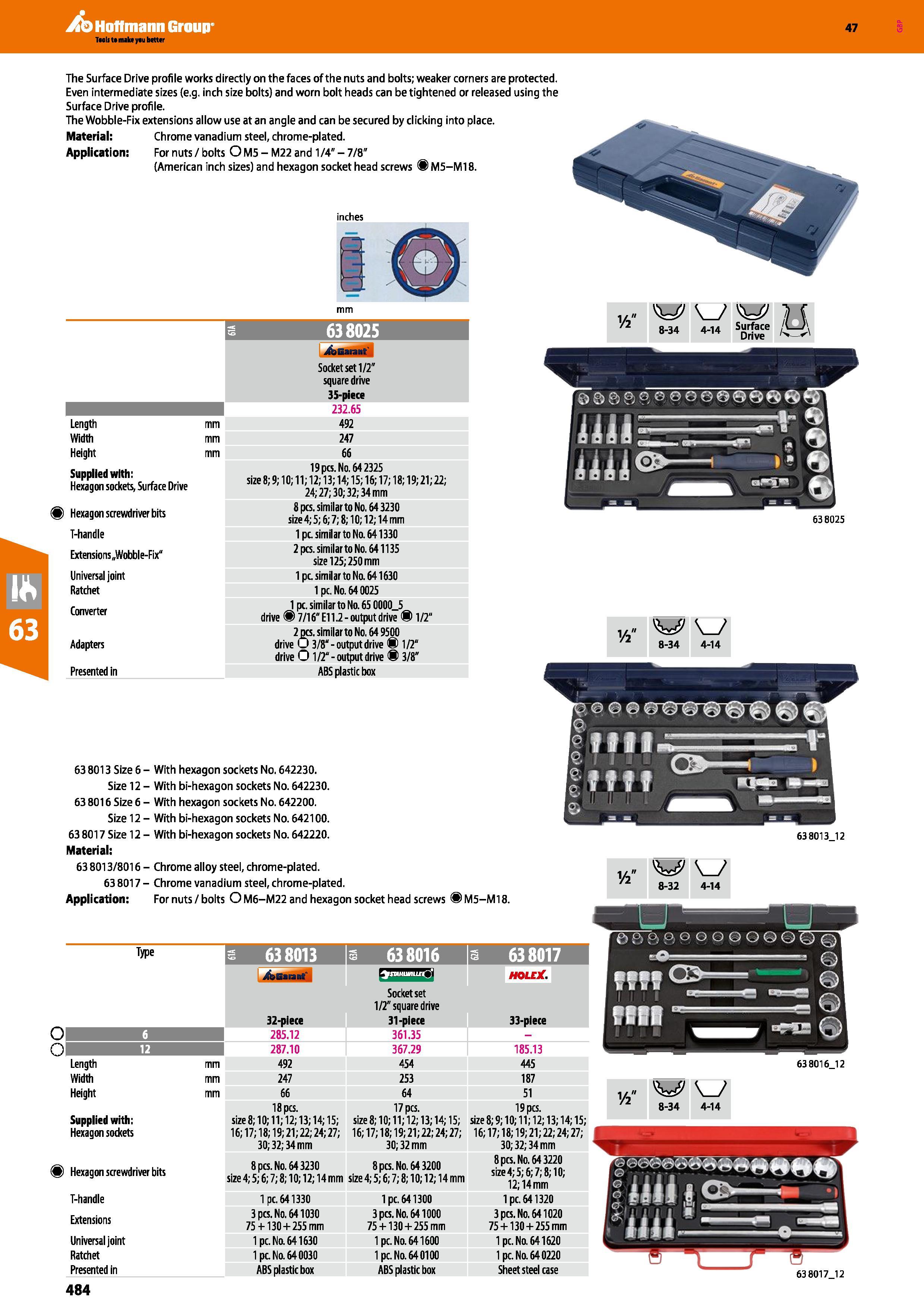

484 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.484

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 484 0484 ENG Lab2u

Hoffmann Group 63 8025 8-34 w 4-14 Surface Drive s 638025 Length Width Height Supplied with: Hexagon sockets, Surface Drive Hexagon screwdriver bits T-handle Extensions„Wobble-Fix“ Universal joint Ratchet Converter Adapters Presented in Socket set 1/2" square drive 35-piece 232.65 mm 492 mm 247 mm 66 19 pcs. No. 64 2325 size 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 24; 27; 30; 32; 34 mm 8 pcs. similar to No. 64 3230 size 4; 5; 6; 7; 8; 10; 12; 14 mm 1pt similar to Na 641330 2 pcs. similar to No. 641135 size 125; 250 mm 1pc similar to Na 641630 1 pc. No. 64 0025 1 pc. similar to Na 65 0000_5 drive 7/16"El 1.2-outputdrive 1/2" 2 pcs. similar to No. 64 9500 drive O 3/8“-outputdrive 1/2“ drive O 1/2“-outputdrive 3/8" ABS plastic box The Surface Drive profile works directly on the faces of the nuts and bolts; weaker corners are protected. Even intermediate sizes (e.g. inch size bolts) and worn bolt heads can be tightened or released using the Surface Drive profile. The Wobble-Fix extensions allow use at an angle and can be secured by clicking into place. Material: Chrome vanadium steel, chrome-plated. Application: For nuts / bolts O M5 - M22 and 1/4" - 7/8" (American inch sizes) and hexagon socket head screws M5-M18. 63 8013 Size 6 - With hexagon sockets No. 642230. Size 12 - With bi-hexagon sockets No. 642230. 63 8016 Size 6 - With hexagon sockets No. 642200. Size 12 - With bi-hexagon sockets No. 642100. 63 8017 Size 12 - With bi-hexagon sockets No. 642220. Material: 63 8013/8016 - Chrome alloy steel, chrome-plated. 63 8017 - Chrome vanadium steel, chrome-plated. Application: For nuts / bolts O M6-M22 and hexagon socket head screws MS-M18. Type 638013 638016 a 638017 j&Eaiiit' 32-piece Socket set 1/2" square drive 31-piece HOLEjC. 33-piece 6 285.12 361.35 - 12 287.10 367.29 185.13 Length mm 492 454 445 Width mm 247 253 187 Height mm 66 64 51 Supplied with: Hexagon sockets 18 pcs. sizeS; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 24; 27; 30; 32; 34 mm 17 pcs. sizeS; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 24; 27; 30; 32 mm 19 pcs. size 8; 9; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 24; 27; 30; 32; 34 mm Hexagon screwdriver bits 8 pcs. No. 64 3230 size 4; 5; 6; 7; 8; 10; 12; 14 mm 8 pcs. No. 643200 size 4; 5; 6; 7; 8; 10; 12; 14 mm 8 pa. No. 64 3220 size4;5; 6; 7; 8; 10; 12; 14 mm T-handle Ipc. 641330 Ipc. 641300 Ipc. 641320 Extensions 3 pcs. No. 64 1030 75 + 130 + 255 mm 3 pcs. No. 641000 75+ 130 + 255 mm 3 pcs. No. 641020 75+ 130 + 255 mm Universal joint 1 pc. Na 64 1630 Ipc. No. 641600 1 pc. No. 641620 Ratchet 1 pc. No. 64 0030 Ipc. No. 64 0100 1 pc. No. 64 0220 Presented in ABS plastic box ABS plastic box Sheet steel case 8-34 4-14 63 8013_12 W W 63 8016 _12 63 8017 _12 W W 8-34 4-14
