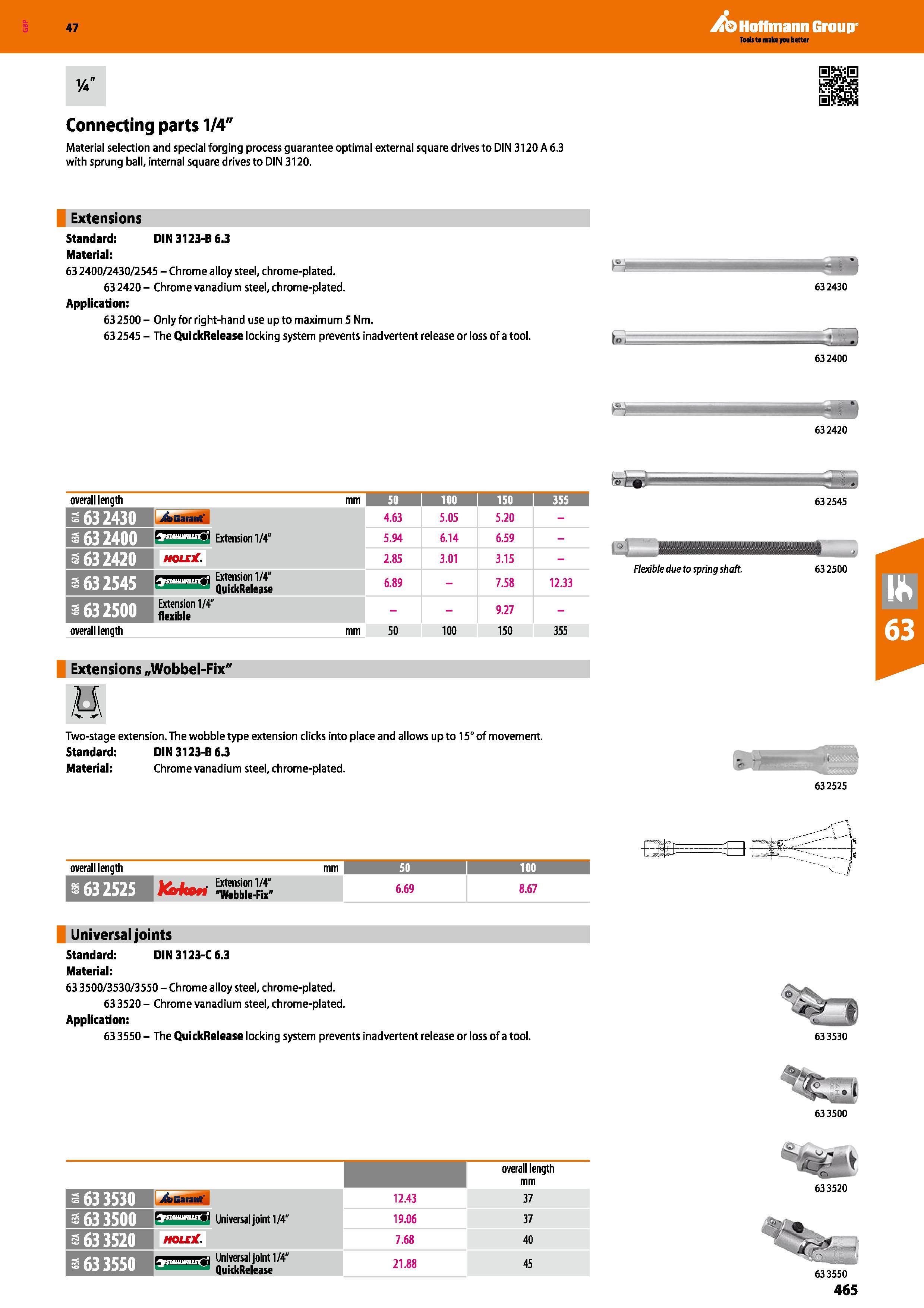

Hoffmann Group 47 Connecting parts 1/4" Material selection and special forging process guarantee optimal external square drives to DIN 3120 A 6.3 with sprung ball, internal square drives to DIN 3120. Extensions Standard: DIN3123-B6.3 Material: 63 2400/2430/2545 - Chrome alloy steel, chrome-plated. 63 2420 - Chrome vanadium steel, chrome-plated. Application: 63 2500 - Only for right-hand use up to maximum 5 Nm. 63 2545 - The QuickRelease locking system prevents inadvertent release or loss of a tool. overall length mm 50 i 100 i 150 I 355 s 63 2430 -/tejJSarant 4.63 5.05 5.20 a 63 2400 Extension 1/4" 5.94 6.14 6.59 63 2420 HOLOC. 2.85 3.01 3.15 - a 63 2545 L i,i ii i',i ij Extension 1/4" tm/UkQuickRelease 6.89 - 7.58 12.33 1632500 Extension 1/4" flexible 9.27 - overall length mm 50 100 150 355 Flexible due to spring shaft. 632430 632400 632420 632545 l°, MS&iiSiSSI 632500 Extensions „Wobbel-Fix" H Two-stage extension. The wobble type extension clicks into place and allows up to 15° of movement. Standard: DIN3123-B6.3 Material: Chrome vanadium steel, chrome-plated. ‘ 632525 eQ- overall length mm 50 j 100 632525 I y i._ . Extension 1/4" "Wobble-Fix" 6.69 8.67 Universal joints Standard: DIN3123-C6.3 Material: 63 3500/3530/3550 - Chrome alloy steel, chrome-plated. 63 3520 - Chrome vanadium steel, chrome-plated. Application: 63 3550 - The QuickRelease locking system prevents inadvertent release or loss of a tool. 633530 633500 overall length mm - 63 3530 i&Gaiant° 12.43 37 633500 Universal joint 1/4" 19.06 37 633520 HOLE . 7.68 40 633550 SIAHlURLLEfj Universal joint 1/4" QuickRelease 21.88 45 633520 633550 465
