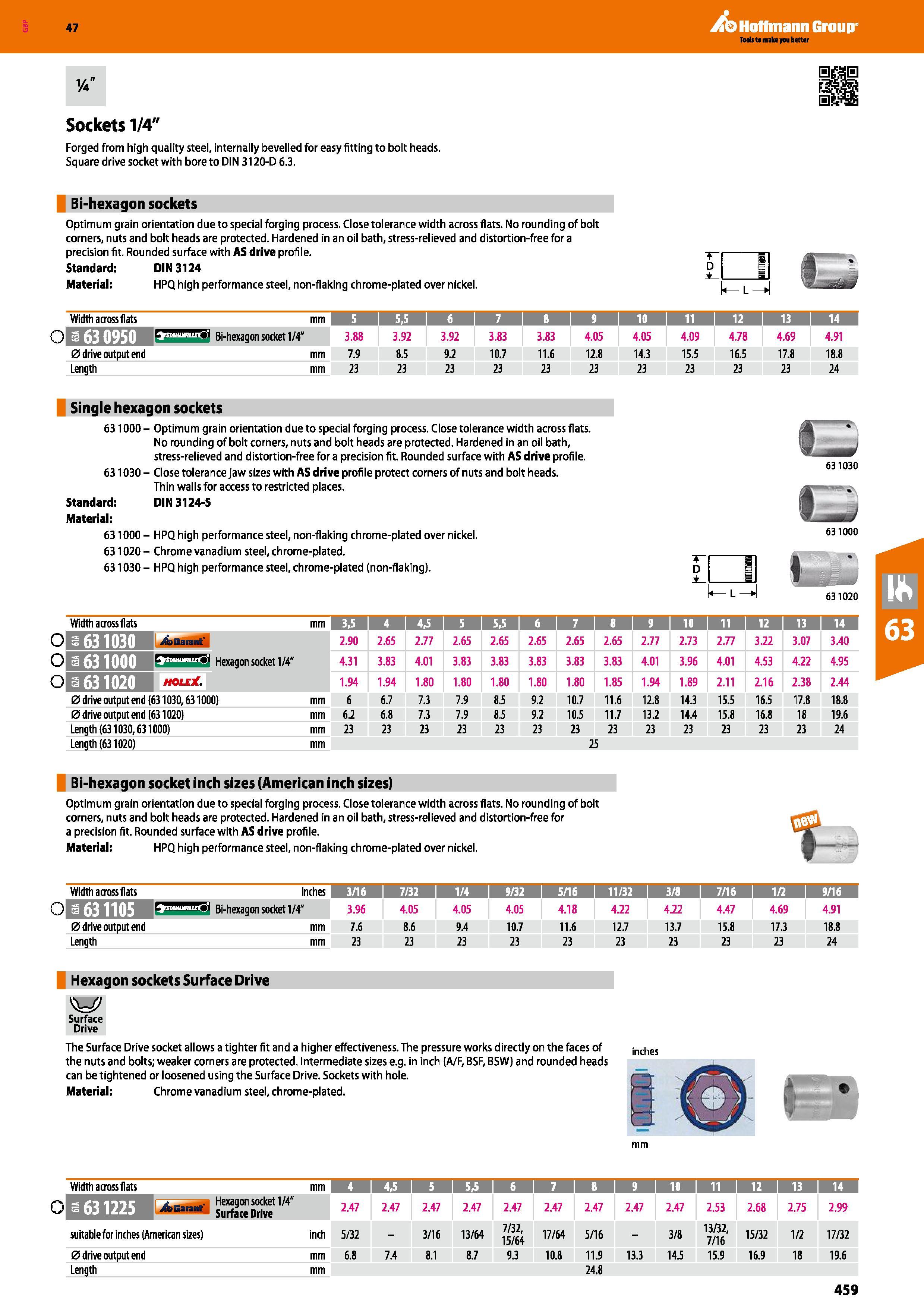

Sockets 1/4" Forged from high quality steel, internally bevelled for easy fitting to bolt heads. Square drive socket with bore to DIN 3120-D 6.3. Bi-hexagon sockets Optimum grain orientation due to special forging process. Close tolerance width across flats. No rounding of bolt corners, nuts and bolt heads are protected. Hardened in an oil bath, stress-relieved and distortion-free for a precision fit. Rounded surface with AS drive profile. Standard: DIN 3124 Material: HPQ high performance steel, non-flaking chrome-plated over nickel. o Width across flats mm 5 I 5,5 7 I 1 9 I 10 1 11 I 12 I 13 I 14 5 63 0950 fcjtfjjyjiisi Bi-hexagon socket 1/4" 3.88 3.92 3.92 3.83 3.83 4.05 4.05 4.09 4.78 4.69 4.91 0 drive output end mm 7.9 8.5 9.2 10.7 11.6 12.8 14.3 15.5 16.5 17.8 18.8 Length mm 23 23 23 23 23 23 23 23 23 23 24 Single hexagon sockets 631000 - Optimum grain orientation due to special forging process. Close tolerance width across flats. No rounding of bolt corners, nuts and bolt heads are protected. Hardened in an oil bath, stress-relieved and distortion-free for a precision fit. Rounded surface with AS drive profile. 631030 - Close tolerance jaw sizes with AS drive profile protect corners of nuts and bolt heads. Thin walls for access to restricted places. Standard: DIN3124-S Material: 631000 - HPQ high performance steel, non-flaking chrome-plated over nickel. 631020 - Chrome vanadium steel, chrome-plated. 631030 - HPQ high performance steel, chrome-plated (non-flaking). 1 i 631030 i\ 631000 631020 Width across flats o S 631030 rT1.LfSS 2.90 2.65 2.77 2.65 2.65 2.65 2.65 2.65 2.77 2.73 2.77 3.22 3.07 3.40 o 4.31 3.83 4.01 3.83 3.83 3.83 3.83 3.83 4.01 3.96 4.01 4.53 4.22 4.95 o a m nuii mMM 1.94 1.94 1.80 1.80 1.80 1.80 1.80 1.85 1.94 1.89 2.11 2.16 2.38 2.44 0 drive output end (631030,631000) mm 6 6.7 7.3 7.9 8.5 9.2 10.7 11.6 12.8 14.3 15.5 16.5 17.8 18.8 0 drive output end (631020) mm 6.2 6.8 7.3 7.9 8.5 9.2 10.5 11.7 13.2 14.4 15.8 16.8 18 19.6 Length (631030,631000) mm 23 23 23 23 23 23 23 23 23 23 23 23 23 24 Length (631020) mm 25 Bi-hexagon socket inch sizes (American inch sizes) Optimum grain orientation due to special forging process. Close tolerance width across flats. No rounding of bolt corners, nuts and bolt heads are protected. Hardened in an oil bath, stress-relieved and distortion-free for a precision fit. Rounded surface with AS drive profile. Material: HPQ high performance steel, non-flaking chrome-plated over nickel. Width across flats Ol 0 drive output end Length 631105 Bi-hexagon socket 1/4" inches 3/16 i 7/32 j 1/4 9/32 S/16 11/32 3/8 1 7/16 112 i 9/16 r 3.96 4.05 4.05 4.05 4.18 4.22 4.22 4.47 4.69 4.91 mm 7.6 8.6 9.4 10.7 11.6 12.7 13.7 15.8 17.3 18.8 mm 23 23 23 23 23 23 23 23 23 24 Hexagon sockets Surface Drive w Surface Drive The Surface Drive socket allows a tighter fit and a higher effectiveness. The pressure works directly on the faces of the nuts and bolts; weaker corners are protected. Intermediate sizes e.g. in inch (A/F, BSF, BSW) and rounded heads can be tightened or loosened using the Surface Drive. Sockets with hole. Material: Chrome vanadium steel, chrome-plated. inches o Width across flats mm 4,5 I s mm 6 I 7 I 8 j 9 i 10 I 11 I 12 I 13 1 14 s631225 x . Hexagon socket 1/4" surface Drive 2.47 2.47 2.47 2.47 2.47 2.47 2.47 2.47 2.47 2.53 2.68 2.75 2.99 suitable for inches (American sizes) inch 5/32 - 3/16 13/64 7/32, 15/64 17/64 5/16 - 3/8 13/32, 7/16 15/32 1/2 17/32 0 drive output end mm 6.8 7.4 8.1 8.7 9.3 10.8 11.9 13.3 14.5 15.9 16.9 18 19.6
