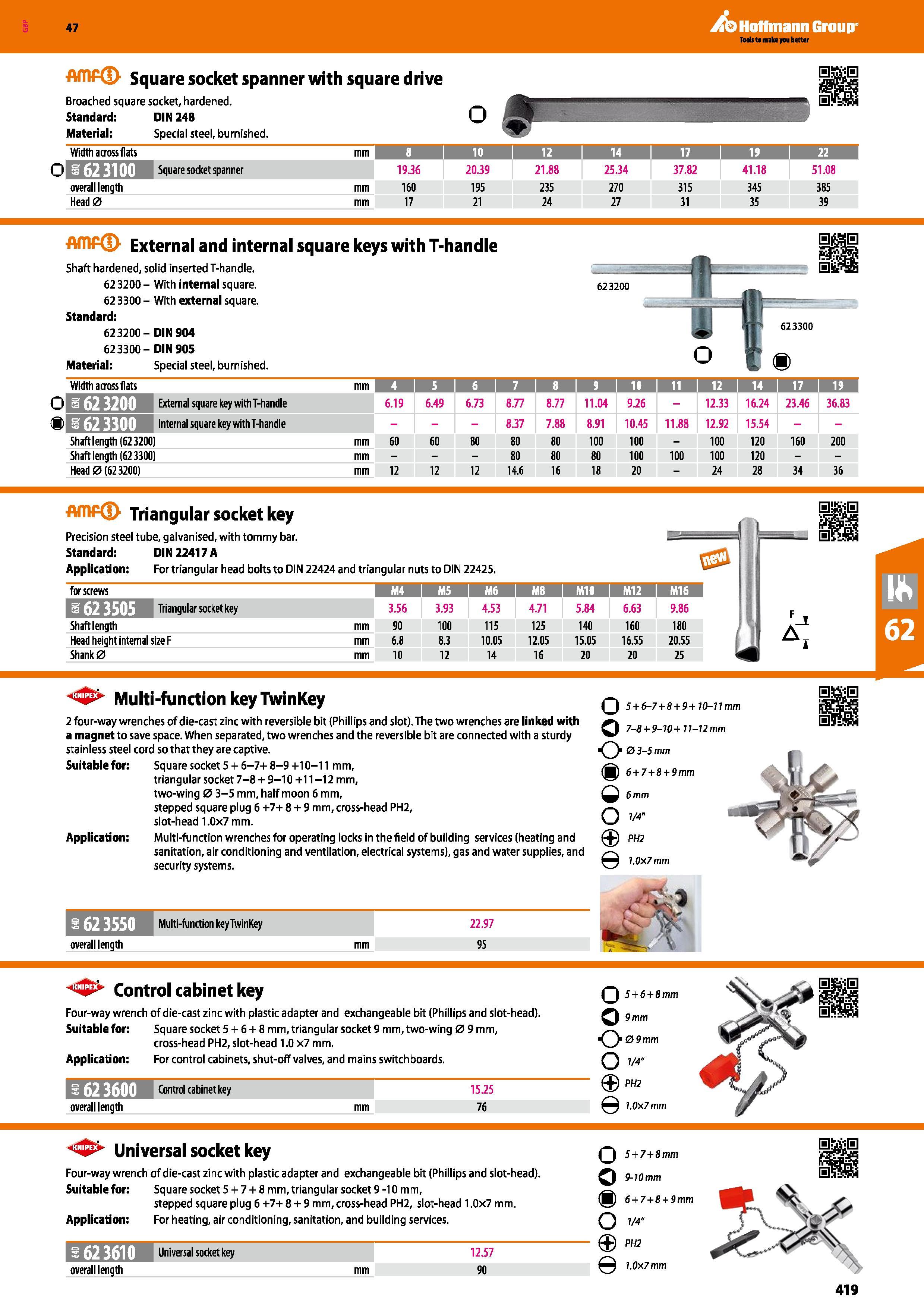

419 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.419

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 419 0419 ENG Lab2u

Hoflmann Group Square socket spanner with square drive Broached square socket, hardened. Standard: DIN 248 Material: Special steel, burnished. Width across flats mm 8 I 10 I 12 I 14 1 17 I 1 I 22 I Square socket spanner 19.36 20.39 21.88 25.34 37.82 41.18 51.08 overall length mm 160 195 235 270 315 345 385 Head 0 mm 17 21 24 27 31 35 39 External and internal square keys with T-handle Shaft hardened, solid inserted T-handle. 62 3200 - With internal square. 62 3200 62 3300 - With external square. Standard: 623200- DIN 904 623300- DIN 905 Material: Special steel, burnished. Width across flats mm 4 1 s i 6 1 7 i 8 1 9 1 10 I 11 1 12 I 14 1 17 I 1 ijPtWUl External square key with T-handle 6.19 6.49 6.73 8.77 8.77 11.04 9.26 - 12.33 16.24 23.46 36.83 IfifrlCHlliB Internal square key with T-handle 8.37 7.88 8.91 10.45 11.88 12.92 15.54 Shaft length (623200) mm 60 60 80 80 80 100 100 - 100 120 160 200 Shaft length (62 3300) mm 80 80 80 100 100 100 120 Head 0 (62 3200) mm 12 12 12 14.6 16 18 20 - 24 28 34 36 Triangular socket key Precision steel tube, galvanised, with tommy bar. Standard: DIN 22417 A Application: For triangular head bolts to DIN 22424 and triangular nuts to DIN 22425. for screws Ell M5 iM M I M10 I Ml 2 I M16 'VX 1VB Triangular socket key 3.56 3.93 4.53 4.71 5.84 6.63 9.86 Shaft length mm 90 100 115 125 140 160 180 Head height internal size F mm 6.8 8.3 10.05 12.05 15.05 16.55 20.55 Shank 0 mm 10 12 14 16 20 20 25 Multi-function key TwinKey 2 four-way wrenches of die-cast zinc with reversible bit (Phillips and slot). The two wrenches are linked with a magnet to save space. When separated, two wrenches and the reversible bit are connected with a sturdy stainless steel cord so that they are captive. Suitable for: Square socket 5+ 6-7+8-9+10-11 mm, triangular socket 7-8 + 9-10 +11-12 mm, two-wing 0 3-5 mm, half moon 6 mm, stepped square plug 6 +7+ 8 + 9 mm, cross-head PH2, slot-head 1.0x7 mm. Application: Multi-function wrenches for operating locks in the field of building services (heating and sanitation, air conditioning and ventilation, electrical systems), gas and water supplies, and security systems. o w o e 162355 overall length Multi-function key TwinKey 22.97 95 Control cabinet key Four-way wrench of die-cast zinc with plastic adapter and exchangeable bit (Phillips and slot-head). Suitable for: Square socket 5 + 6 + 8 mm, triangular socket 9 mm, two-wing 09 mm, cross-head PH2, slot-head 1.0 x7 mm. Application: For control cabinets, shut-off valves, and mains switchboards. 1623600 Control cabinet key 15.25 overall length mm 76 Q J + fi+8mi 9mm o 09mm O J/4" 0 PH2 e 1.0x7 mm Universal socket key Four-way wrench of die-cast zinc with plastic adapter and exchangeable bit (Phillips and slot-head). Suitable for: Square socket 5 + 7 + 8 mm, triangular socket 9 -10 mm, stepped square plug 6 +7+ 8 + 9 mm, cross-head PH2, slot-head 1.0x7 mm. Application: For heating, air conditioning, sanitation, and building services. BfryjtTiHlTB Universal socket key 12.57 overall length mm 90 0 5+7+8mm o 9-10 mm 6+7+8+9mm O i/r PH2 e 1.0x7 mm 419 623300 m 5 + 6-7+8 + 9+10-11 mm 7-8 + 9-10+11-12 mm 03-5 mm 6+7+8+9mm 6 mm 1/4" PH2 1.0x7 mm
