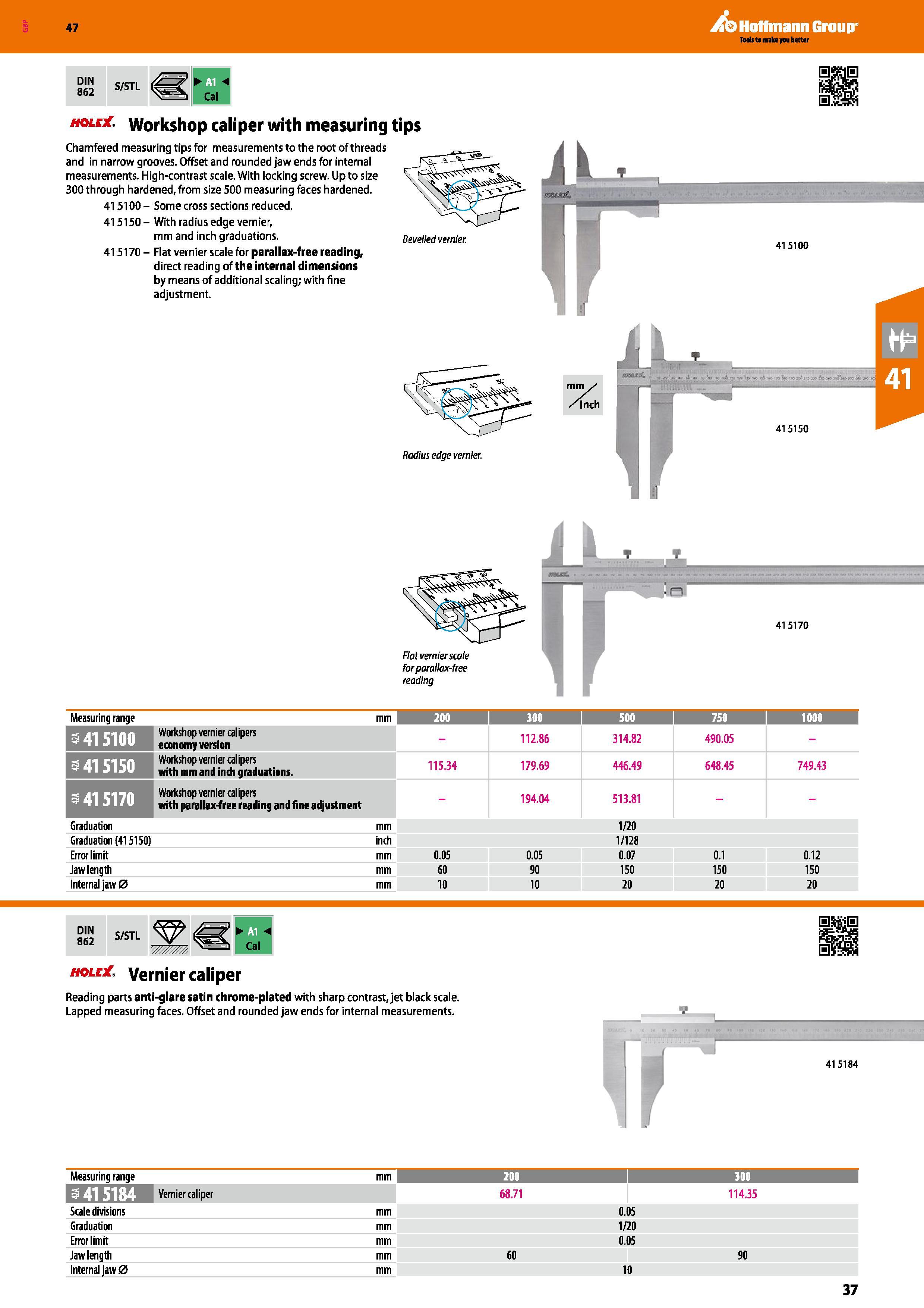

Hoflmann Group 47 DIN 862 S/STL Cal holex. workshop caliper with measuring tips Chamfered measuring tips for measurements to the root of threads and in narrow grooves. Offset and rounded jaw ends for internal measurements. High-contrast scale. With locking screw. Up to size 300 through hardened, from size 500 measuring faces hardened. 415100- Some cross sections reduced. 415150 - With radius edge vernier, mm and inch graduations. 415170 - Flat vernier scale for parallax-free reading, direct reading of the internal dimensions by means of additional scaling; with fine adjustment. Bevelled vernier. mm\ / /inch . - lAnwWwit mb'. 41 5150 Flat vernier scale for parallax-free reading 415170 Measuring range Workshop vernier calipers economy version Workshop vernier calipers with mm and inch graduations. Workshop vernier calipers with parallax-free reading and fine adjustment Graduation Graduation (415150) Error limit Jaw length Internal jaw 0 mm 200 i 300 500 i 750 1 1000 i - 112.86 314.82 490.05 - 115.34 179.69 446.49 648.45 749.43 - 194.04 513.81 mm 1/20 inch 1/128 mm 0.05 0.05 0.07 0.1 0.12 mm 60 90 150 150 150 10 10 20 20 20 hole . Vernier caliper Reading parts anti-glare satin chrome-plated with sharp contrast, jet black scale. Lapped measuring faces. Offset and rounded jaw ends for internal measurements. I , 415184 Measuring range mm 200 I 300 I 1 415184 M 68.71 114.35 Scale divisions mm 0.05 Graduation mm 1/20 Error limit mm 0.05 Jaw length mm 60 90 Internal jaw 0 mm 10
