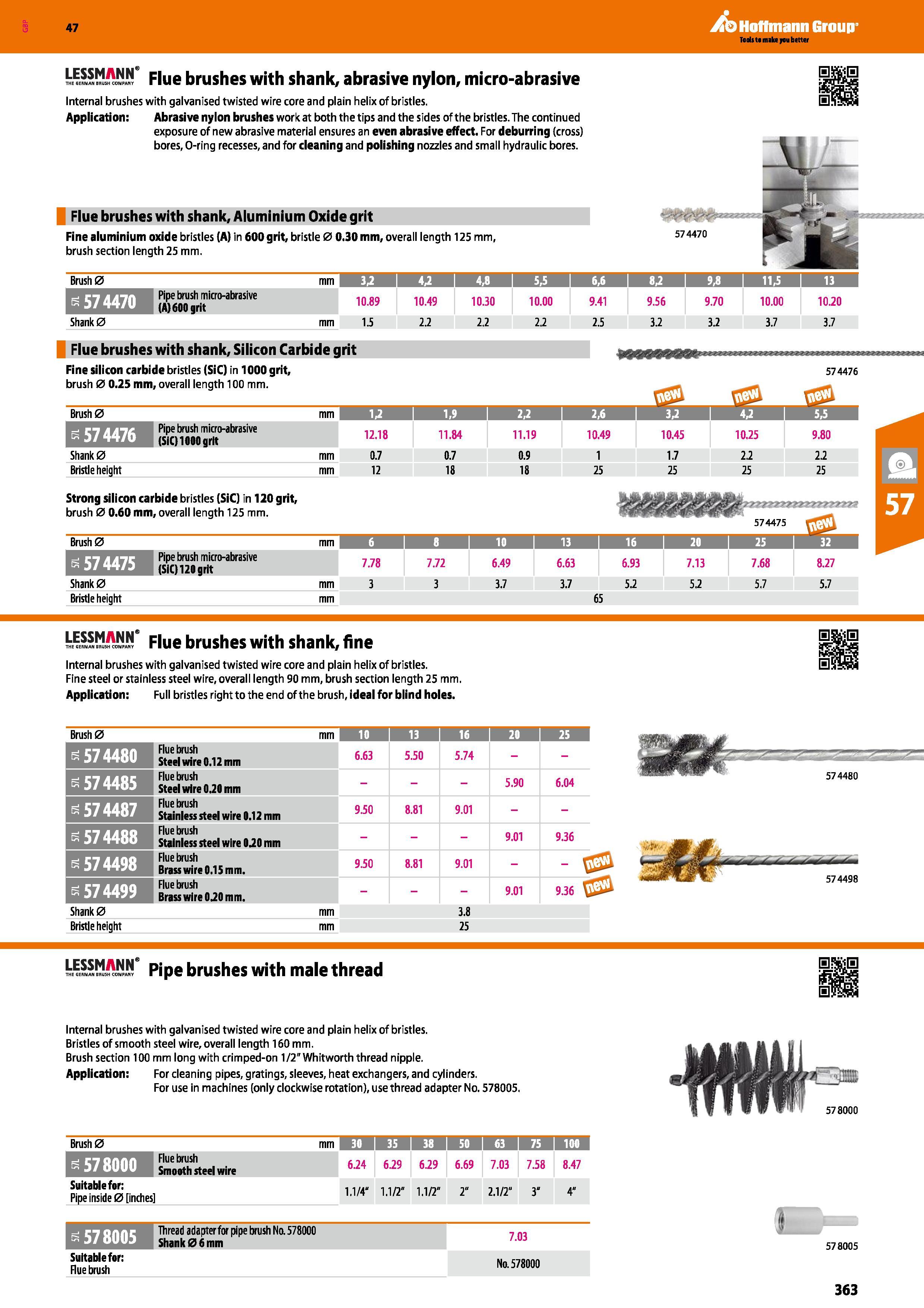

Hoffmann Group 47 Flue brushes with shank, abrasive nylon, micro-abrasive Internal brushes with galvanised twisted wire core and plain helix of bristles. Application: Abrasive nylon brushes work at both the tips and the sides of the bristles. The continued exposure of new abrasive material ensures an even abrasive effect. For deburring (cross) bores, O-ring recesses, and for cleaning and polishing nozzles and small hydraulic bores. Flue brushes with shank, Aluminium Oxide grit Fine aluminium oxide bristles (A) in 600 grit, bristle 0 0.30 mm, overall length 125 mm, brush section length 25 mm. 574470 Brush 0 mm 3,2 I 4,2 4,8 5,5 j 6,6 I 8,2 9,8 11,5 I 13 s 57 4470 Pipe brush micro-abrasive (A) 600 grit 10.89 10.49 10.30 10.00 9.41 9.56 9.70 10.00 10.20 Shank 0 mm 1.5 2.2 2.2 2.2 2.5 3.2 3.2 3.7 3.7 Flue brushes with shank, Silicon Carbide grit Fine silicon carbide bristles (SiC) in 1000 grit, brush 0 0.25 mm, overall length 100 mm. 574476 Vvi Wi Brush 0 mm V 1 1,9 1 2,2 j 2,6 I 3,2 I 4,2 nn - 57 4476 Pipe brush micro-abrasive (SiC)IOOOgrit 12.18 11.84 11.19 10.49 10.45 10.25 9.80 Shank 0 mm 0.7 0.7 0.9 1 1.7 2.2 2.2 Bristle height mm 12 18 18 25 25 25 25 Strong silicon carbide bristles (SiC) in 120 grit, brush 0 0.60 mm, overall length 125 mm. 574475 Brush 0 mm 6 io 13 16 20 I 25 I 32 57 4475 Pipe brush micro-abrasive (SiC)120grit 7.78 7.72 6.49 6.63 6.93 7.13 7.68 8.27 Shank 0 mm 3 3 3.7 3.7 5.2 5.2 5.7 5.7 Bristle height 65 klSEMUi Flue brushes with shank, fine Internal brushes with galvanised twisted wire core and plain helix of bristles. Fine steel or stainless steel wire, overall length 90 mm, brush section length 25 mm. Application: Full bristles right to the end of the brush, ideal for blind holes. Brush 0 mm 10 I 13 j 16 S 20 I 25 s 57 4480 Flue brush Steel wire 0.12 mm 6.63 5.50 5.74 s 57 4485 Flue brush Steel wire 0.20 mm 5.90 6.04 s 57 4487 Flue brush Stainless steel wire 0.12 mm 9.50 8.81 9.01 s 57 4488 Flue brush Stainless steel wire 0 JO mm 9.01 9.36 s 57 4498 Flue brush Brass wire 0.15mm. 9.50 8.81 9.01 V s 57 4499 Flue brush Brass wire 0.20 mm. 9.01 9.36 \ Shank 0 mm 3.8 Bristle height mm 25 574480 574498 Pipe brushes with male thread Internal brushes with galvanised twisted wire core and plain helix of bristles. Bristles of smooth steel wire, overall length 160 mm. Brush section 100 mm long with crimped-on 1/2" Whitworth thread nipple. Application: For cleaning pipes, gratings, sleeves, heat exchangers, and cylinders. For use in machines (only clockwise rotation), use thread adapter No. 578005 Brush 0 mm mm EM MM mm I Flue brush Smooth steel wire 6.24 6.29 6.29 6.69 7.03 7.58 8.47 Suitable for: Pipe inside 0 inches 1.1/4“ 1.1/2" 1.1/2" 2“ 2.1/2" 3" 4" 578005 Thread adapterfor pipe brush No. 578000 Shank 06 mm 7.03 Suitable for: Flue brush No. 578000 363
