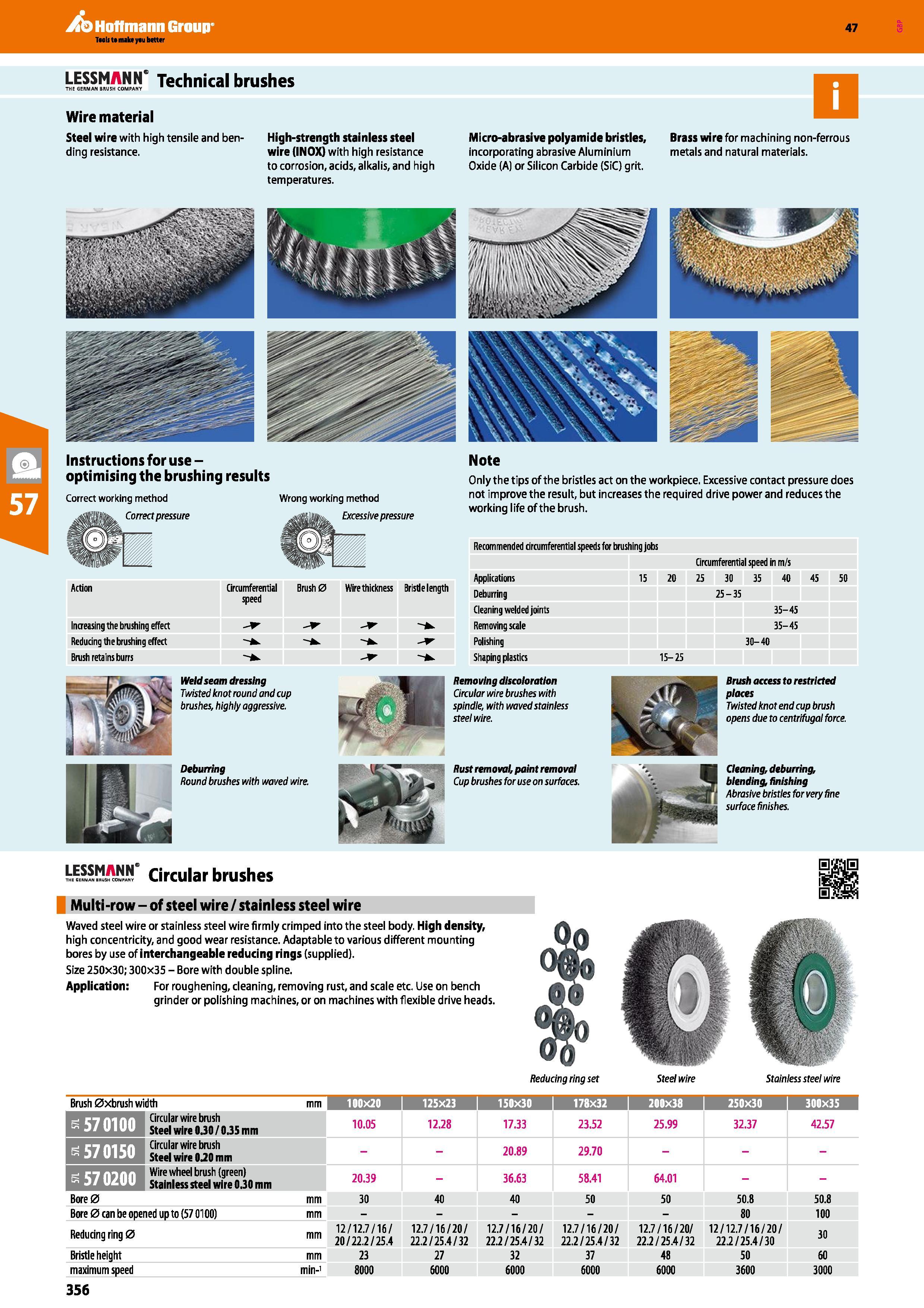

Hoffmann Group 47 LESS MANN Technical brushes THE GERMAN BRUSH COMPANY Wire material Steel wire with high tensile and bending resistance. High-strength stainless steel wire (INOX) with high resistance to corrosion, acids, alkalis, and high temperatures. Micro-abrasive polyamide bristles, incorporating abrasive Aluminium Oxide (A) or Silicon Carbide (SiC) grit. Brass wire for machining non-ferrous metals and natural materials. Reducing ring set Steel wire Stainless steel wire Brush 0xbrush width mm 100x20 j 125x23 j 150x30 178x32 200x38 I 250x30 i 300x35 s 570100 Circular wire brush Steel wire 0 JO / 0.35 mm 10.05 12.28 17.33 23.52 25.99 32.37 42.57 a 570150 Circular wire brush Steel wire 0 JO mm 20.89 29.70 s570200 Wire wheel brush (green) Stainless steel wire 0.30 mm 20.39 - 36.63 58.41 64.01 Bore0 mm 30 40 40 50 50 50.8 50.8 Bore 0 can be opened up to (57 0100) mm 80 100 Reducing ring 0 mm 12/12.7/16/ 20/22.2/25.4 12.7/16/20/ 22.2/25.4/32 12.7/16/20/ 22.2 / 25.4 / 32 12.7/16/20/ 22.2/25.4/32 12.7/16/20/ 22.2/25.4/32 12/12.7/16/20/ 22.2 / 25.4/30 30 Bristle height mm 23 27 32 37 48 50 60 maximum speed min-1 8000 6000 6000 6000 6000 3600 3000 Action Circumferential speed Brush 0 Wire thickness Bristle length Increasing the brushing effect Reducing the brushing effect -V Brush retains burrs Note Only the tips of the bristles act on the workpiece. Excessive contact pressure does not improve the result, but increases the required drive power and reduces the working life of the brush. Recommended circumferential speeds for brushing jobs Circumferential speed in m/s Applications 15 20 25 30 35 40 45 50 Deburring 25-35 Cleaning welded joints 35-45 Removing scale 35-45 Polishing 30-40 Shaping plastics 15-25 Weld seam dressing Twisted knot round and cup brushes, highly aggressive Removing discoloration Circular wire brushes with spindle, with waved stainless steel wire. Brush access to restricted places Twisted knot end cup brush opens due to centrifugal force. Deburring Round brushes with waved wire Rust removal, paint removal Cup brushes for use on surfaces. Cleaning, deburring, blending, linishing Abrasive bristles for very fine surface finishes. l nan.n circular brushes Multi-row - of steel wire / stainless steel wire Waved steel wire or stainless steel wire firmly crimped into the steel body. High density, high concentricity, and good wear resistance. Adaptable to various different mounting bores by use of interchangeable reducing rings (supplied). Size 250x30; 300x35 - Bore with double spline. Application: For roughening, cleaning, removing rust, and scale etc. Use on bench grinder or polishing machines, or on machines with flexible drive heads. Wrong working method Excessive pressure Instructions for use -optimising the brushing results Correct working method Correct pressure
