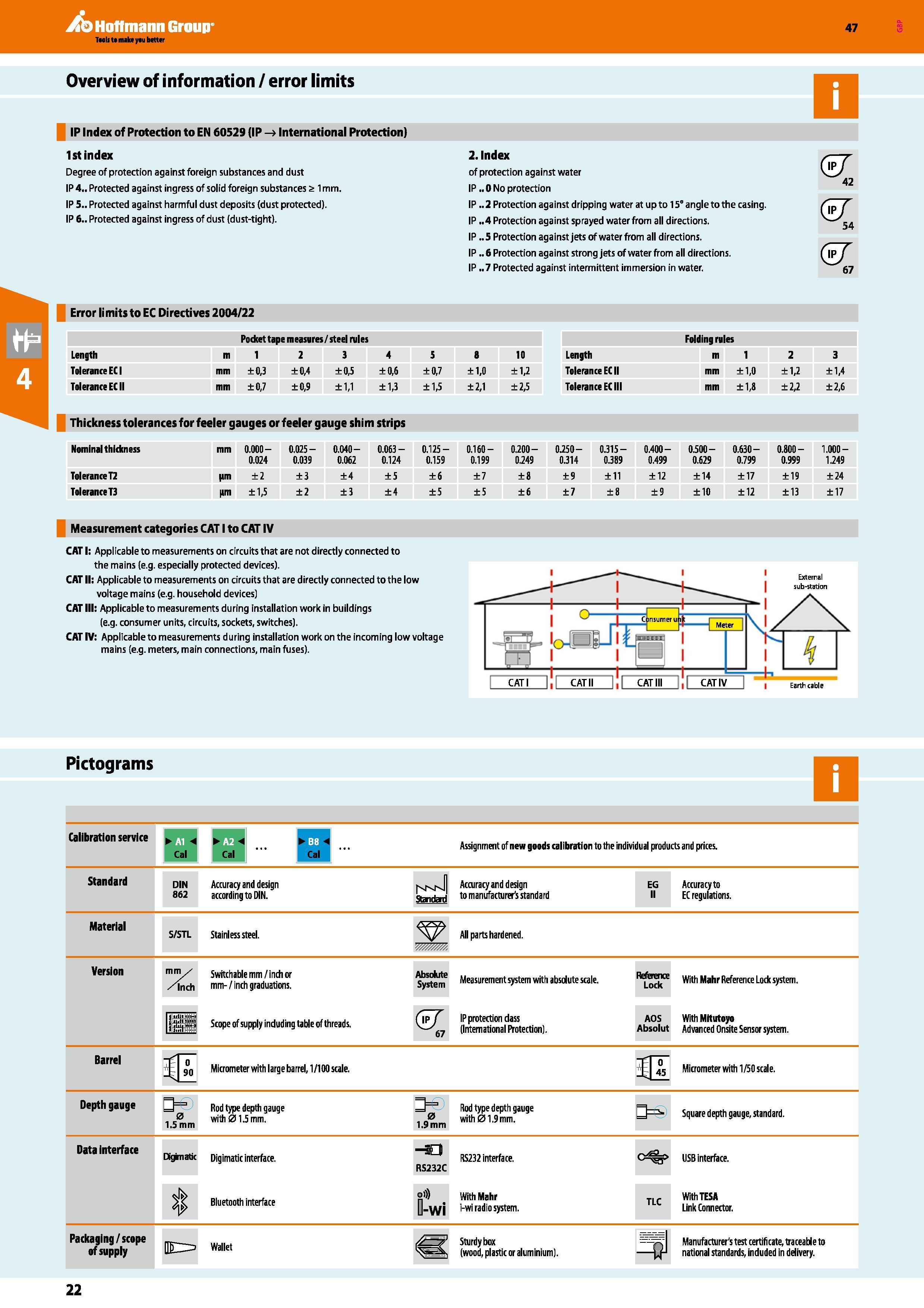

Hoffmann Group 47 Overview of information / error limits IP Index of Protection to EN 60529 (IP - International Protection) 1st index Degree of protection against foreign substances and dust IP 4.. Protected against ingress of solid foreign substances 2 1mm. IP 5.. Protected against harmful dust deposits (dust protected). IP 6.. Protected against ingress of dust (dust-tight). 2. Index of protection against water IP ..ONo protection IP ..2 Protection against dripping water at up to 15° angle to the casing, IP ..4 Protection against sprayed water from all directions. IP ..5 Protection against jets of water from all directions. IP ..6 Protection against strong jets of water from all directions. IP ..7 Protected against intermittent immersion in water. <57 42 <57 54 <57 Error limits to EC Directives 2004/22 Pocket tape measures/ steel rules Folding rules Length m 1 2 3 4 5 1 10 Length m 1 2 3 Tolerance EC 1 mm ±0,3 ±0,4 ±0,5 ±0,6 ±0,7 ±1,0 ±1,2 Tolerance EC II mm ±1,0 ±1,2 ±1,4 Tolerance EC II mm ±0,7 ±0,9 ±1,1 ±1,3 ±1,5 ±2,1 ±2,5 Tolerance EC III mm ±1,8 ±2,2 ±2,6 Thickness tolerances for feeler gauges or feeler gauge shim strips Nominal thickness mm 0.000- 0.025- 0.040- 0.063 - 0.125 - 0.160- 0.200- 0.250 0.315- 0.400- 0.500- 0.630- 0.800- 1.000- 0.024 0.039 0.062 0.124 0.159 0.199 0.249 0.314 0.389 0.499 0.629 0.799 0.999 1.249 Tolerance T2 im ±2 ±3 ±4 ±5 ±6 ±7 ±8 ±9 ±11 ±12 ±14 ±17 ±19 ±24 Tolerance T3 im ±1,5 ±2 ±3 ±4 ±5 ±5 ±6 ±7 ±8 ±9 ±10 ±12 ±13 ±17 Measurement categories CAT I to CAT IV CAT I: Applicable to measurements on circuits that are not directly connected to the mains (e.g. especially protected devices). CAT II; Applicable to measurements on circuits that are directly connected to the low voltage mains (e.g. household devices) CAT III: Applicable to measurements during installation work in buildings (e.g. consumer units, circuits, sockets, switches). CAT IV: Applicable to measurements during installation work on the incoming low voltage mains (e.g. meters, main connections, main fuses). Pictograms Calibration service 1 > A1 1 A2 B8 Assignment of new goods calibration to the individual products and prices. Cal Cal Cal Standard DIN 862 Accuracy and design according to DIN. fvrM'J Standad Acairacyand design to manufacturer's standard EG II Accuracy to EC regulations. Material S/STL Stainless steel. All parts hardened. Version mmi / /inch Switchable mm/indior mm- / inch graduations. Absolute System Measurement system with absolute Kale. IP protection dass (International Protection , Refaena Lock : With Mahr Reference Lock system. WithMitiitoyo Advanced Onsite Sensor system. 111 i mm Scope of supply including table of threads. dE7 67 AOS Absolut Barrel Micrometer with large barrel, 1/100 scale. Micrometer with 1/50 scale. Depth gauge Q > 0 1.5 mm Rod type depth gauge with 01.5 mm. 3 0 1.9 mm Rod type depth gauge with 01.9 mm. =' Square depth gauge, standard. Data interface Dkpnatk Digimatic interface. Bluetooth interface RS232C o9) D-wi RS232 interface. With Mahr i-wi radio system. TLC 1 USB interface. With TESA Link Connector. Packaging /scope of supply Wallet m Sturdy box (wood, plastic or aluminium). Manufacturer's test certificate, traceable to national standards, induded in delivery. 22
