496 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.496

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 496 0496 ENG Lab2u

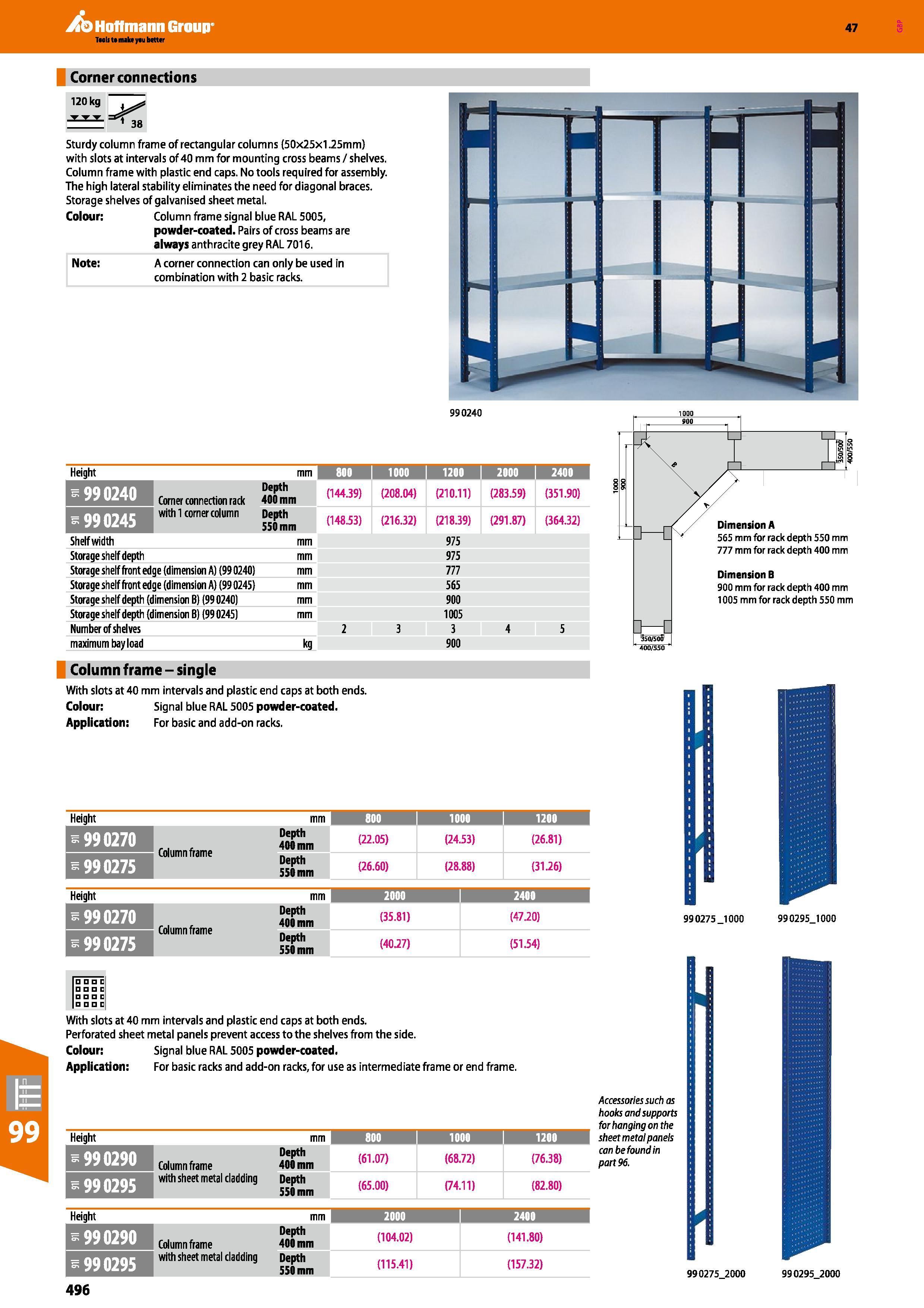

Hoffmann Group 47 Corner connections 120 kg Sturdy column frame of rectangular columns (50x25x1.25mm) with slots at intervals of 40 mm for mounting cross beams / shelves. Column frame with plastic end caps. No tools required for assembly. The high lateral stability eliminates the need for diagonal braces. Storage shelves of galvanised sheet metal. Colour: Column frame signal blue RAL 5005, powder-coated. Pairs of cross beams are always anthracite grey RAL 7016. Note: A corner connection can only be used in combination with 2 basic racks. 990240 Height mm Km 1000 1200 HHI 2400 Corner connection rack Depth 400 mm (144.39) (208.04) (210.11) (283.59) (351.90) -990245 Hllll Depth 550 mm (148.53) (216.32) (218.39) (291.87) (364.32) Shelf width mm 975 Storage shelf depth mm 975 Storage shelf front edge (dimension A) (99 0240) mm 777 Storage shelf front edge (dimension A) (99 0245) mm 565 Storage shelf depth (dimension B) (990240) mm 900 Storage shelf depth (dimension B) (990245) mm 1005 Number of shelves 2 3 3 4 5 maximum bay load kg 900 Dimension A 565 mm for rack depth 550 mm 777 mm for rack depth 400 mm Dimension B 900 mm for rack depth 400 mm 1005 mm for rack depth 550 mm Column frame - single With slots at 40 mm intervals and plastic end caps at both ends. Colour: Signal blue RAL 5005 powder-coated. Application: For basic and add-on racks. Height mm 100 1000 I 1200 I -990270 Column frame Depth 400 mm (22.05) (24.53) (26.81) -990275 Depth 550 mm (26.60) (28.88) (31.26) Height mm 2000 i 2400 I -990270 Depth 400 mm (35.81) (47.20) -990275 Column frame Depth 550 mm (40.27) (51.54) , ' 990275 1000 990295_1000 c D D DDE With slots at 40 mm intervals and plastic end caps at both ends. Perforated sheet metal panels prevent access to the shelves from the side. Colour: Signal blue RAL 5005 powder-coated. Application: For basic racks and add-on racks, for use as intermediate frame or end frame. Height mm 800 1000 I 1200 I -990290 Column frame Depth 400 mm (61.07) (68.72) (76.38) -990295 with sheet metal cladding Depth 550 mm (65.00) (74.11) (82.80) Accessories such as hooks and supports for hanging on the sheet metal panels can be found in part 96. Height mm 2000 i 2400 I -990290 Column frame Depth 400 mm (104.02) (141.80) -990295 with sheet metal cladding Depth 550 mm (115.41) (157.32) 990275 2000 990295 2000 496
