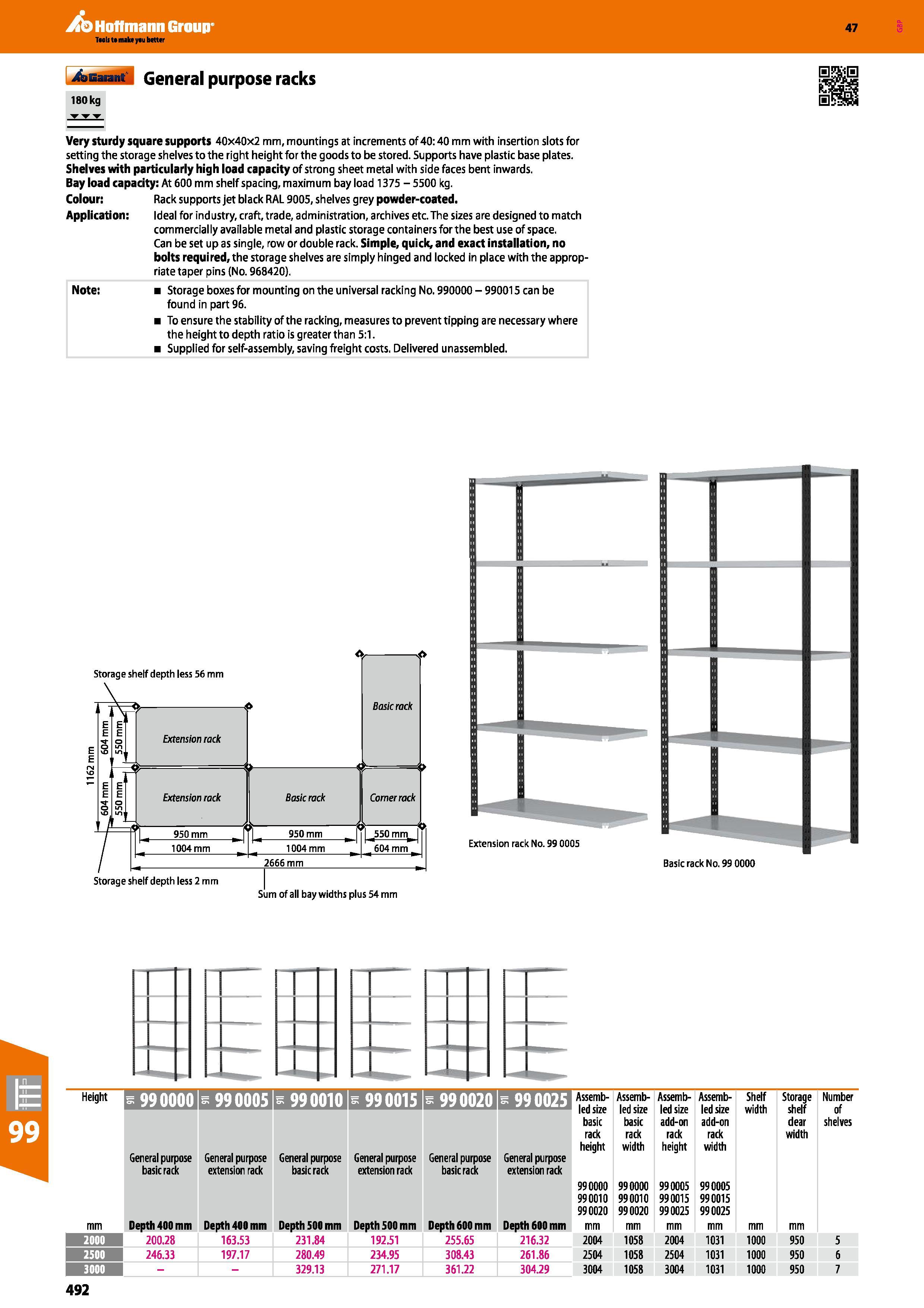

Hoffmann Group 47 General purpose racks 180 kg Very sturdy square supports 40x40x2 mm, mountings at increments of 40:40 mm with insertion slots for setting the storage shelves to the right height for the goods to be stored. Supports have plastic base plates. Shelves with particularly high load capacity of strong sheet metal with side faces bent inwards. Bay load capacity: At 600 mm shelf spacing, maximum bay load 1375 - 5500 kg. Colour: Rack supports jet black RAL 9005, shelves grey powder-coated. Application: Ideal for industry, craft, trade, administration, archives etc.The sizes are designed to match commercially available metal and plastic storage containers for the best use of space. Can be set up as single, row or double rack. Simple, quick, and exact installation, no bolts required, the storage shelves are simply hinged and locked in place with the appropriate taper pins (No. 968420). Note: Storage boxes for mounting on the universal racking No. 990000 - 990015 can be found in part 96. To ensure the stability of the racking, measures to prevent tipping are necessary where the height to depth ratio is greater than 5:1. Supplied for self-assembly, saving freight costs. Delivered unassembled. Height mm - 990000 = 990005 - 990010 990015 - 990020 = 99 0025 Assembled size basic rack height 990000 990010 990020 mm Assembled size basic rack width 990000 990010 990020 mm Assembled size add-on rack height 990005 990015 990025 mm Assembled size add-on rack width 990005 990015 990025 mm Shelf width mm Storage shelf dear width mm Number of shelves General purpose basic rack Depth 400 mm General purpose extension rack Depth 400 mm General purpose basic rack Depth 500 mm General purpose extension rack Depth 500 mm General purpose basic rack Depth 600 mm General purpose extension rack Depth 600 mm 2000 200.28 163.53 231.84 192.51 255.65 216.32 2004 1058 2004 1031 1000 950 5 2500 246.33 197.17 280.49 234.95 308.43 261.86 2504 1058 2504 1031 1000 950 6 3000 - - 329.13 271.17 361.22 304.29 3004 1058 3004 1031 1000 950 7 492
