466 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.466

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 466 0466 ENG Lab2u

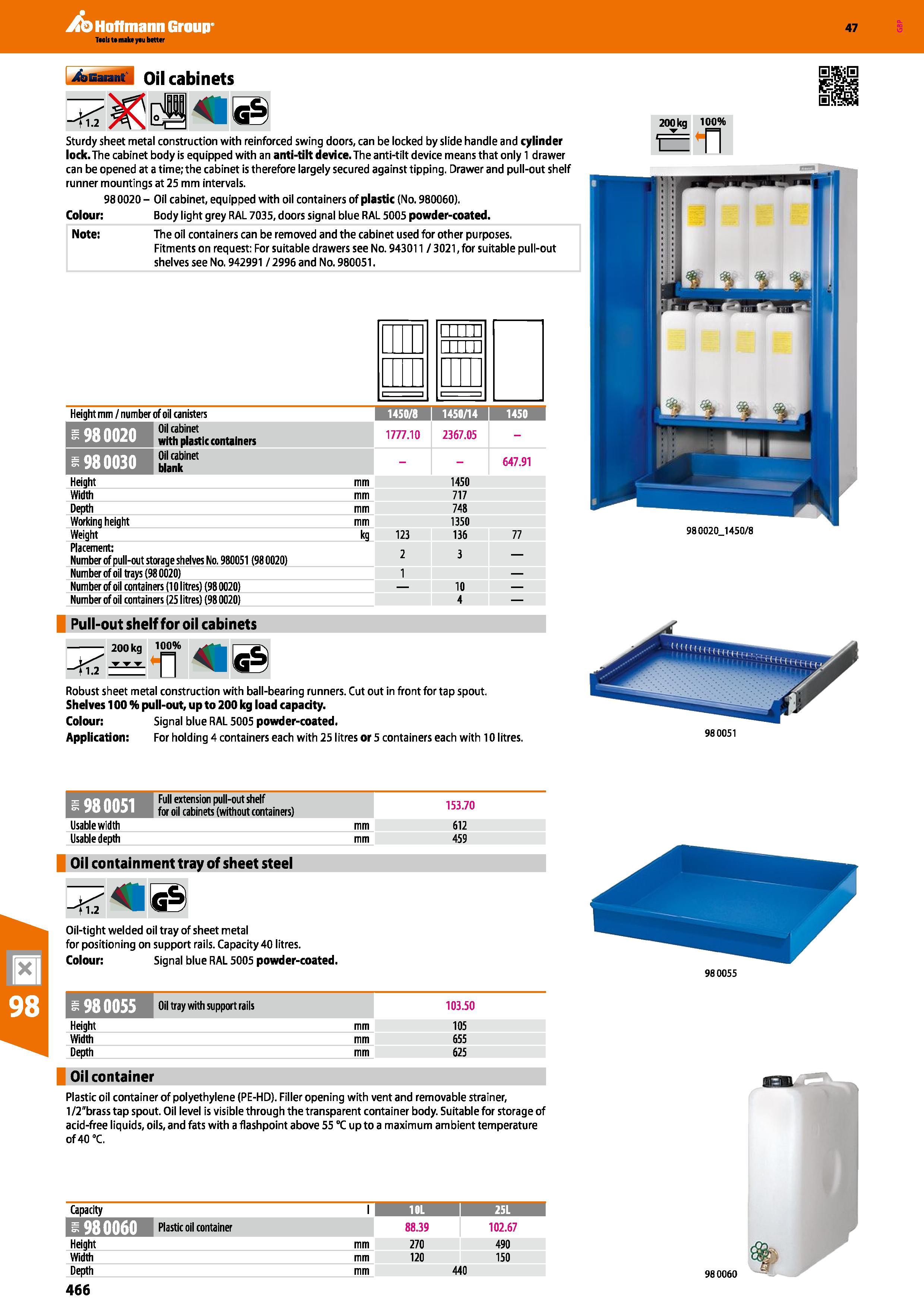

Hoffmann Group 47 Oil cabinets 41 Sturdy sheet metal construction with reinforced swing doors, can be locked by slide handle and cylinder lock.The cabinet body is equipped with an anti-tilt device. The anti-tilt device means that only 1 drawer can be opened at a time; the cabinet is therefore largely secured against tipping. Drawer and pull-out shelf runner mountings at 25 mm intervals. 980020- Oil cabinet, equipped with oil containers of plastic (No. 980060). Colour: Body light grey RAL 7035, doors signal blue RAL 5005 powder-coated. Note: The oil containers can be removed and the cabinet used for other purposes. Fitments on request: For suitable drawers see No. 943011 / 3021, for suitable pull-out shelves see No. 942991 / 2996 and No. 980051. 200 kg 100% n Height mm / number of oil canisters M 1450/8 I 1450/14 1 1450 i Oil cabinet with plastic containers 1777.10 2367.05 - s 980030 Oil cabinet blank - - 647.91 Width Depth Working height Weight Placement: Number of pull-out storage shelves No. 980051 (98 0020) Number of oil trays (980020) Number of oil containers (lOlitres) (980020) Number of oil containers (25 litres) (980020) mm kg 123 2 1 717 748 1350 136 3 10 4 77 Pull-out shelf for oil cabinets 100% Robust sheet metal construction with ball-bearing runners. Cut out in front for tap spout. Shelves 100 % pull-out, up to 200 kg load capacity. Colour: Signal blue RAL 5005 powder-coated. Application: For holding 4 containers each with 25 litres or 5 containers each with 10 litres. 98 0020_1450/8 980051 i 980051 Full extension pull-out shelf for oil cabinets (without containers) 153.70 Usable width mm 612 Usable depth mm 459 Oil containment tray of sheet steel 1.2 Oil-tight welded oil tray of sheet metal for positioning on support rails. Capacity 40 litres. Colour: Signal blue RAL 5005 powder-coated. Oil tray with support rails Height Width Depth mm 103.50 105 655 625 Oil container Plastic oil container of polyethylene (PE-HD). Filler opening with vent and removable strainer, 1/2"brass tap spout. Oil level is visible through the transparent container body. Suitable for storage of acid-free liquids, oils, and fats with a flashpoint above 55 °C up to a maximum ambient temperature of 40 °C. 980055 Capacity 1 10L 1 25L 11980060 IJiBHiBllil 88.39 102.67 Height mm 270 490 Width mm 120 150 Depth mm 440 980060 466
