400 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.400

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 400 0400 ENG Lab2u

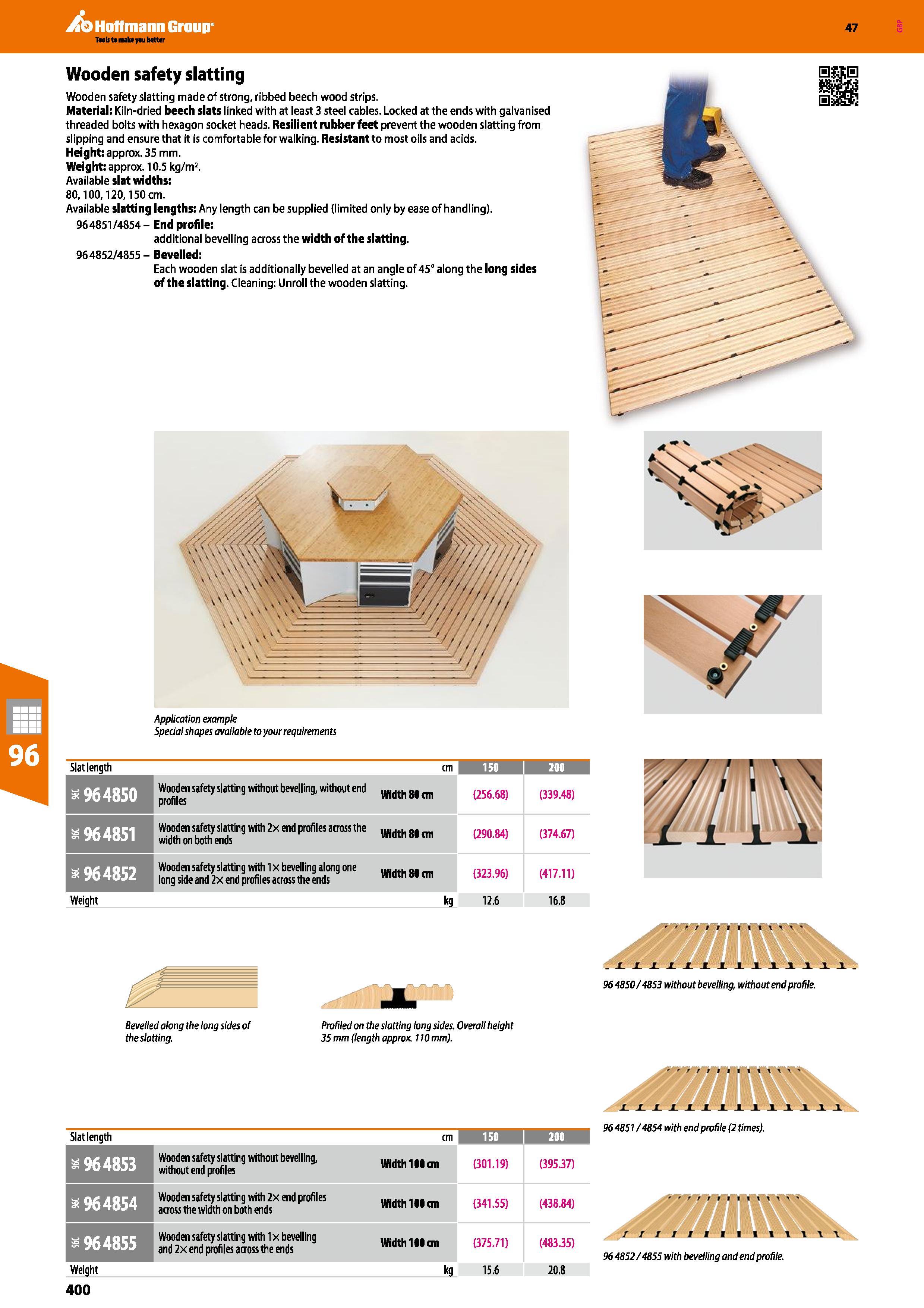

Hoffmann Group 47 Wooden safety slatting Wooden safety slatting made of strong, ribbed beech wood strips. Material: Kiln-dried beech slats linked with at least 3 steel cables. Locked at the ends with galvanised threaded bolts with hexagon socket heads. Resilient rubber feet prevent the wooden slatting from slipping and ensure that it is comfortable for walking. Resistant to most oils and acids. Height: approx. 35 mm. Weight: approx. 10.5 kg/m2. Available slat widths: 80,100,120,150 cm. Available slatting lengths: Any length can be supplied (limited only by ease of handling). 964851/4854- End profile: additional bevelling across the width of the slatting. 964852/4855 - Bevelled: Each wooden slat is additionally bevelled at an angle of 45° along the long sides of the slatting. Cleaning: Unroll the wooden slatting. Application example Special shapes available to your requirements Slat length cm 150 1 200 1 n Wooden safety slatting without bevelling, without end profiles Width 80 cm (256.68) (339.48) 964851 Wooden safety slatting with 2x end profiles across the width on both ends Width 80 cm (290.84) (374.67) 964852 Wooden safety slatting with 1 x bevelling along one long side and 2x end profiles across the ends Width 80 cm (323.96) (417.11) Weight kg 12.6 16.8 frit i t t t \ \ \ Bevelled along the long sides of the slatting. Profiled on the slatting long sides. Overall height 35 mm (length approx 110 mm). illlllllllllll 964850/4353 without bevelling, without end profile. Slat length cm 150 200 I 964853 Wooden safety slatting without bevelling, without end profiles Width 100 on (301.19) (395.37) 964854 Wooden safety slatting with 2x end profiles across the width on both ends Width 100 on (341.55) (438.84) 964855 Wooden safety slatting with 1 x bevelling and 2x end profiles across the ends Width 100 an (375.71) (483.35) Weight kg 15.6 20.8 ' ' / ; / i i i i l ' \ i i a a 96 4851 /4854 with end profile (2 times). f r , r i . i t < , > > f' I I I 1 I I I I 1 \ \ \ \ 96 4852/4855 with bevelling and end profile. 400
