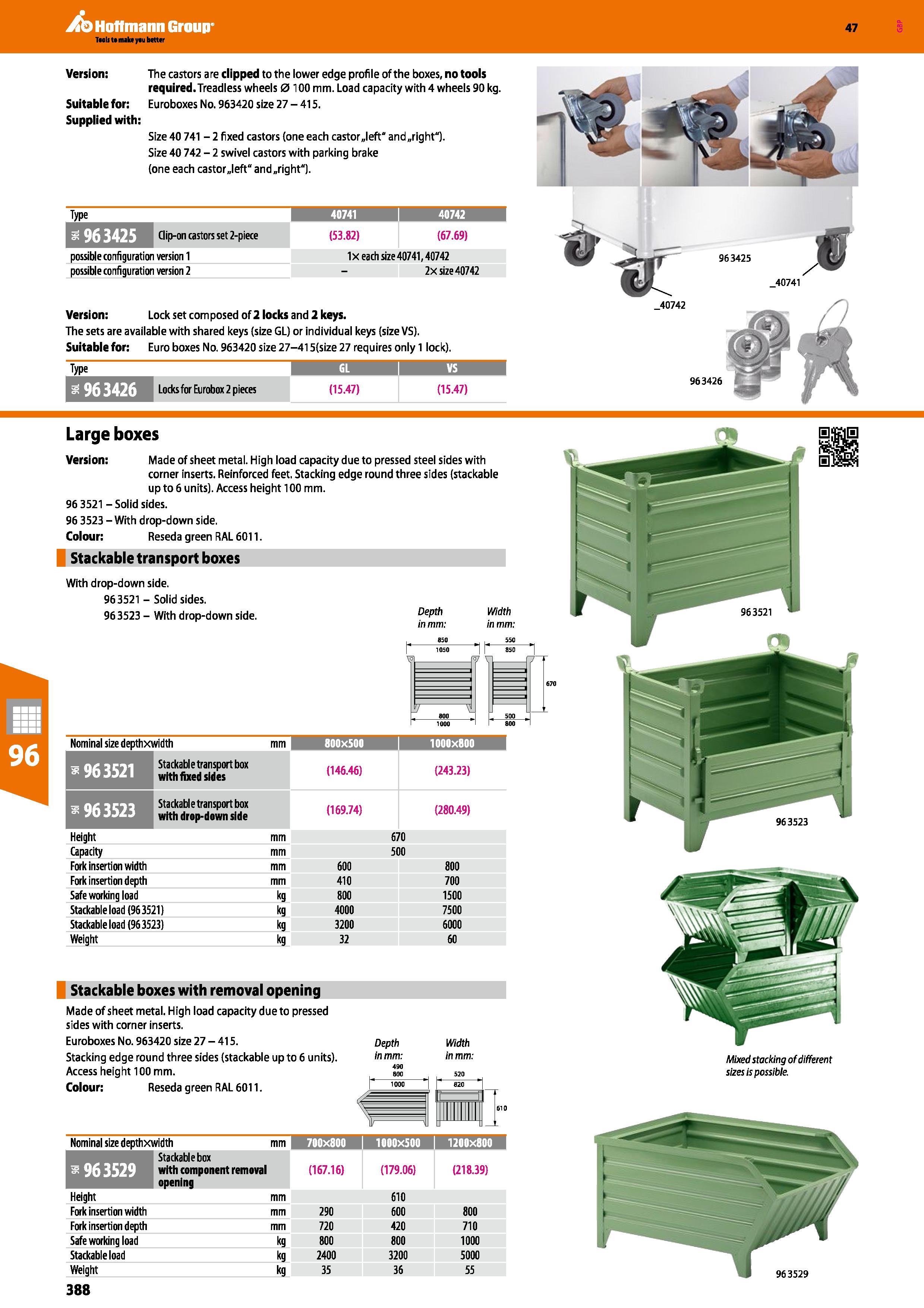

Hoffmann Group 47 Version: The castors are clipped to the lower edge profile of the boxes, no tools required.Treadless wheels 0100 mm. Load capacity with 4 wheels 90 kg. Suitable for: Euroboxes No. 963420 size 27 - 415. Supplied with: Size 40 741 - 2 fixed castors (one each castor„left" and„right" . Size 40 742 - 2 swivel castors with parking brake (one each castor„left“ and„right“). Type 40741 j 40742 i 963425 Clip-on castors set 2-piece (53.82) (67.69) possible configuration version 1 possible configuration version 2 1 x each size 40741,40742 2x size 40742 Version: Lock set com posed of 2 locks and 2 keys. The sets are available with shared keys (size GL) or individual keys (size VS). Suitable for: Euro boxes No. 963420 size 27-415(size 27 requires only 1 lock). Type GL I vs i 963426 Locks for Eurobox 2 pieces (15.47) (15.47) Large boxes Version: Made of sheet metal. High load capacity due to pressed steel sides with corner inserts. Reinforced feet. Stacking edge round three sides (stackable up to 6 units). Access height 100 mm. 96 3521 - Solid sides. 96 3523 - With drop-down side. Colour: Reseda green RAL 6011. Stackable transport boxes With drop-down side. 963521 - Solid sides. 963523 - With drop-down side. Depth Width in mm: in mm: Nominal size depthxwidth mm 800X500 1 1000x800 1 Stackable transport box with fixed sides (146.46) (243.23) Stackable transport box with drop-down side (169.74) (280.49) Height mm 670 Capacity mm 500 Fork insertion width mm 600 800 Fork insertion depth mm 410 700 Safe working load kg 800 1500 Stackable load (963521) kg 4000 7500 Stackable load (96 3523) kg 3200 6000 Weight kg 32 60 Stackable boxes with removal opening Made of sheet metal. High load capacity due to pressed sides with corner inserts. Euroboxes No. 963420 size 27 - 415. Stacking edge round three sides (stackable up to 6 units). Access height 100 mm. Colour: Reseda green RAL 6011. Depth in mm: Width in mm: Mixed stacking of different sizes is possible Nominal size depthxwidth Stackable box 963529 Height Fork insertion width Fork insertion depth Safe working load Stackable load Weight 388 with component removal opening mm 700x800 1000x500 1200x80< (167.16) (179.06) (218.39) mm 610 mm 290 600 800 mm 720 420 710 kg 800 800 1000 kg 2400 3200 5000 kg 35 36 55 _40742 963426 963425 _40741
