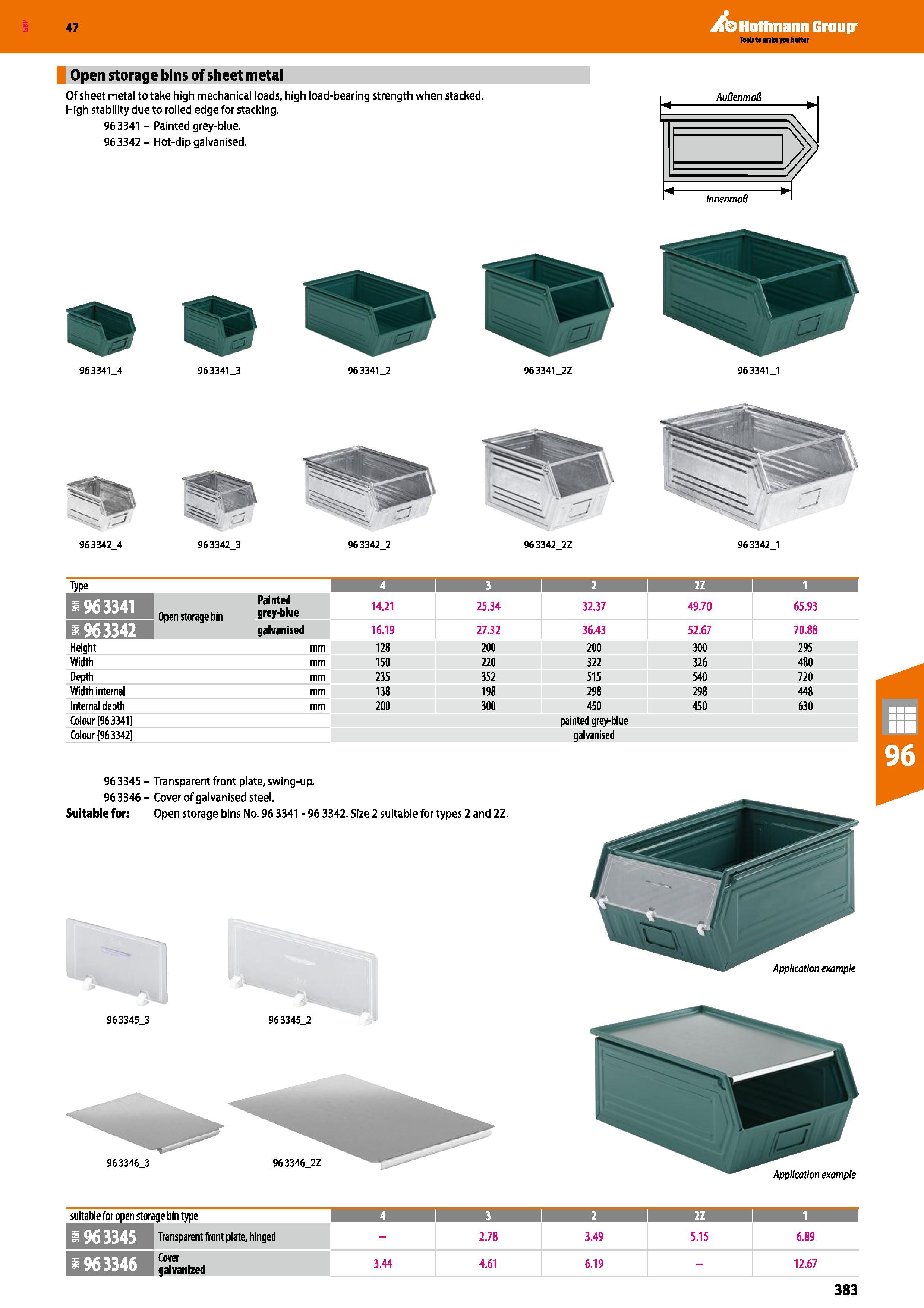

Open storage bins of sheet metal Of sheet metal to take high mechanical loads, high load-bearing strength when stacked. High stability due to rolled edge for stacking. 963341 - Painted grey-blue. 963342- Hot-dipgalvanised. 963342_4 963342_3 963342_2 963342_2Z 963342_1 Type 4 I 3 1 2 1 21 1 1 i 963341 mm Painted gray-blue 14.21 25.34 32.37 49.70 65.93 i 963342 galvanised 16.19 27.32 36.43 52.67 70.88 Height mm 128 200 200 300 295 Width mm 150 220 322 326 480 Depth mm 235 352 515 540 720 Width internal mm 138 198 298 298 448 Internal depth mm 200 300 450 450 630 Colour (963341) painted grey-blue Colour (963342) galvanised 96 3345 - Transparent front plate, swing-up. 963346 - Cover of galvanised steel. Suitable for: Open storage bins No. 96 3341 - 96 3342. Size 2 suitable for types 2 and 2Z. 963345_3 963345_2 suitable for open storage bin type 4 1 3 I 2 I 21 I 1 1 Transparent front plate, hinged - 2.78 3.49 5.15 6.89 s 963346 PlI 3.44 4.61 6.19 - 12.67 383 Application example Application example
