280 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.280

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 280 0280 ENG Lab2u

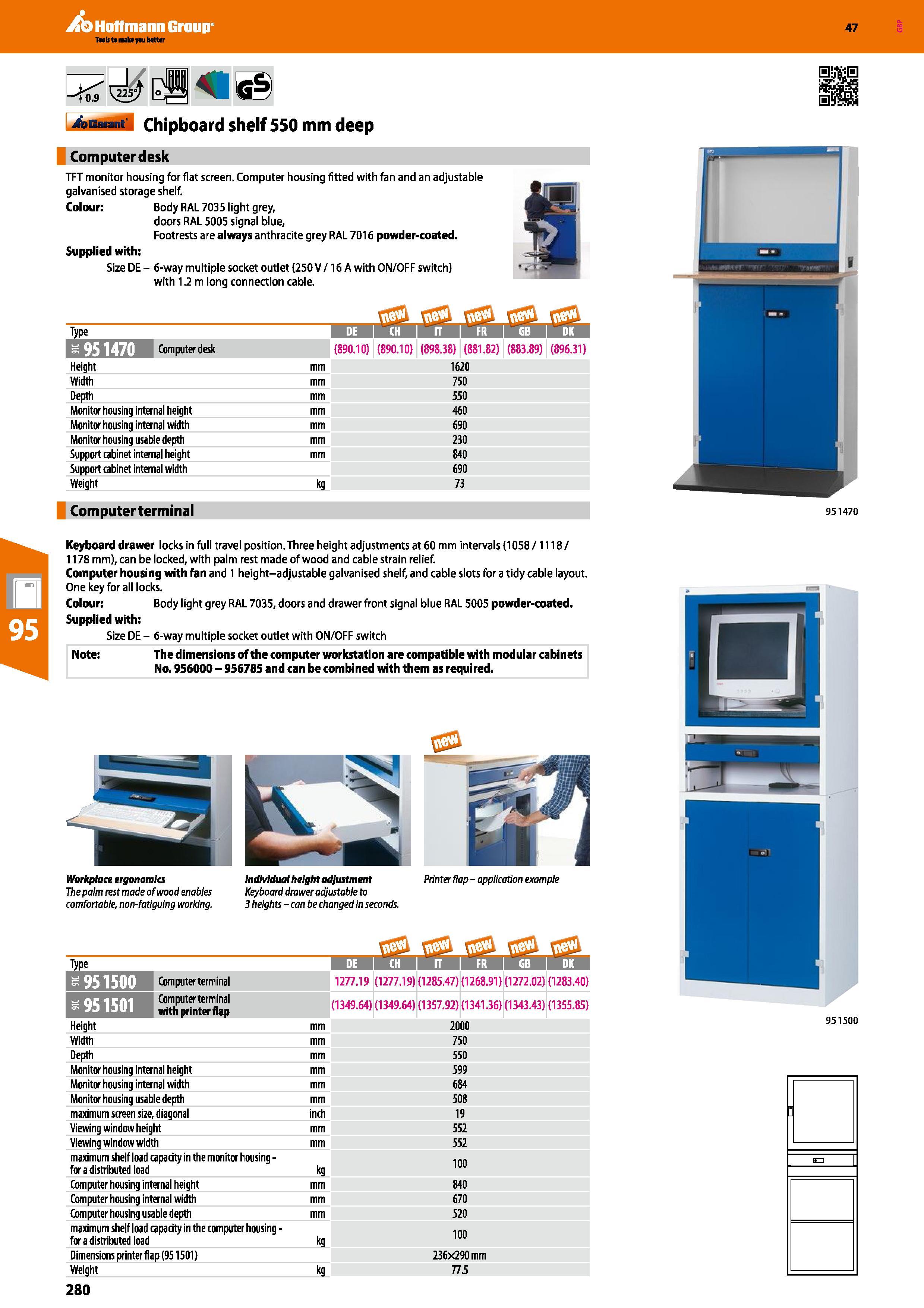

bGaiant chipboard shelf 550 mm deep Computer desk TFT monitor housing for flat screen. Computer housing fitted with fan and an adjustable galvanised storage shelf. Colour: Body RAL 7035 light grey, doors RAL 5005 signal blue, Footrests are always anthracite grey RAL 7016 powder-coated. Supplied with: Size DE - 6-way multiple socket outlet (250 V /16 A with ON/OFF switch) with 1.2 m long connection cable. Type - 951470 IBSSfl (890.10) (890.10) (898.38) (881.82) (883.89) (896.31) Height mm 1620 Width mm 750 Depth mm 550 Monitor housing internal height mm 460 Monitor housing internal width mm 690 Monitor housing usable depth mm 230 Support cabinet internal height mm 840 Support cabinet internal width 690 Weight kg 73 Computer terminal 951470 Keyboard drawer locks in full travel position. Three height adjustments at 60 mm intervals (1058 /1118 / 1178 mm), can be locked, with palm rest made of wood and cable strain relief. Computer housing with fan and 1 height-adjustable galvanised shelf, and cable slots for a tidy cable layout. One key for all locks. Colour: Body light grey RAL 7035, doors and drawer front signal blue RAL 5005 powder-coated. Supplied with: Size DE - 6-way multiple socket outlet with ON/OFF switch Note: The dimensions of the computer workstation are compatible with modular cabinets No. 956000 - 956785 and can be combined with them as required. Type Computer terminal 1277.19 (1277.19) (1285.47) (1268.91) (1272.02) (1283.40) Computer terminal with printer flap (1349.64) (1349.64) (1357.92) (1341.36) (1343.43) (1355.85) Height mm 2000 Width mm 750 Depth mm 550 Monitor housing internal height mm 599 Monitor housing internal width mm 684 Monitor housing usable depth mm 508 maximum screen size, diagonal inch 19 Viewing window height mm 552 Viewing window width mm 552 maximum shelf load capacity in the monitor housing -for a distributed load kg 100 Computer housing internal height mm 840 Computer housing internal width mm 670 Computer housing usable depth mm 520 maximum shelf load capacity in the computer housing -for a distributed load kg 100 951500 Dimensions printer flap (951501) Weight 236x290 mm 77.5 Workplace ergonomics The palm rest made of wood enables comfortable, non-fatiguing working. Individual height adjustment Keyboard drawer adjustable to 3heights-can be changed in seconds. Printer flap - application example
