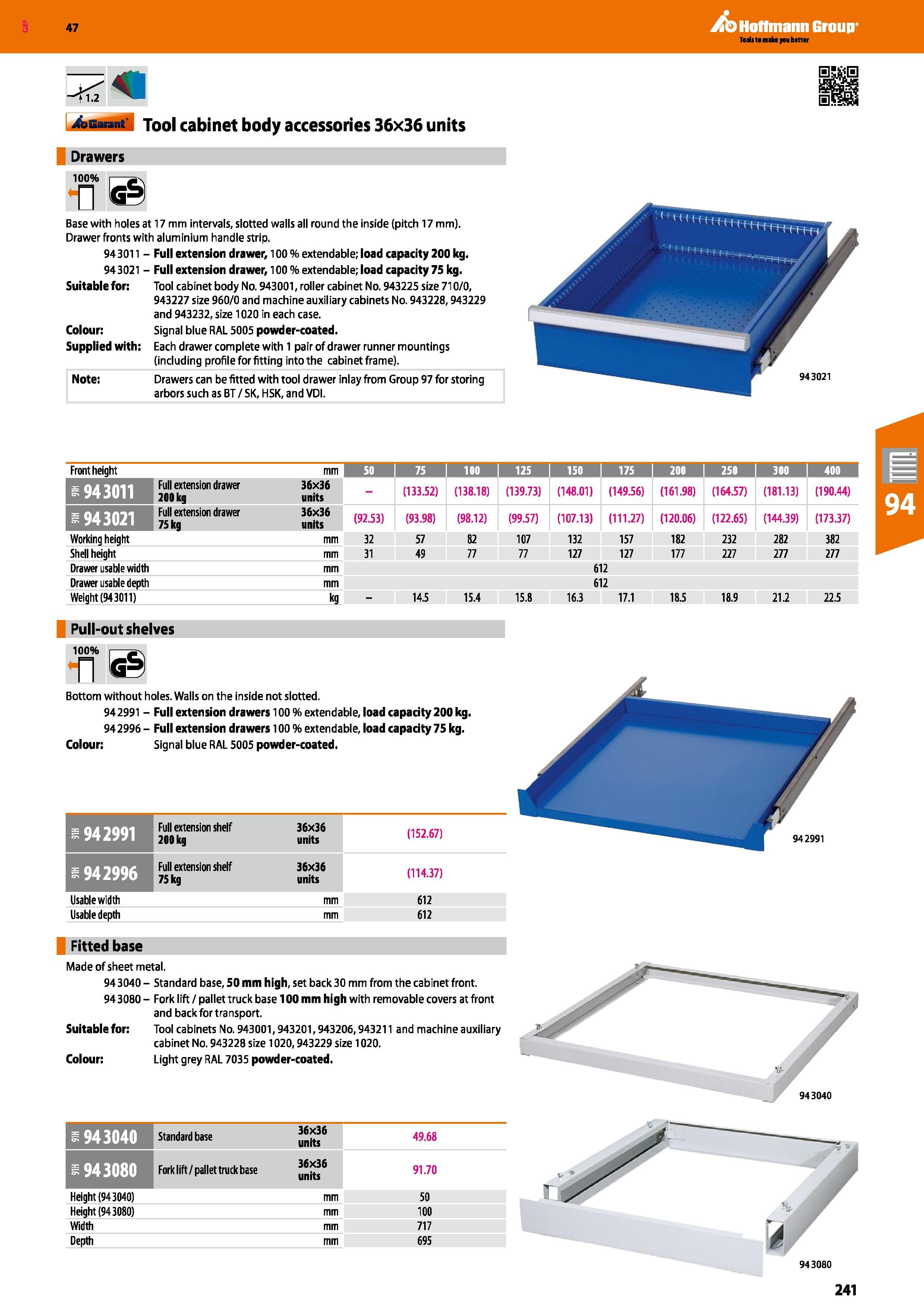

Hoffmann Group 47 <1.2 AGarant Tool cabinet body accessories 36x36 units Drawers 100% Base with holes at 17 mm intervals, slotted walls all round the inside (pitch 17 mm). Drawer fronts with aluminium handle strip. 943011 - Full extension drawer, 100% extendable; load capacity 200 kg. 943021 - Full extension drawer, 100% extendable; load capacity 75 kg. Suitable for: Colour: Supplied with: Note: Tool cabinet body No. 943001, roller cabinet No. 943225 size 710/0, 943227 size 960/0 and machine auxiliary cabinets No. 943228,943229 and 943232, size 1020 in each case. Signal blue RAL 5005 powder-coated. Each drawer complete with 1 pair of drawer runner mountings (including profile for fitting into the cabinet frame). Drawers can be fitted with tool drawer inlay from Group 97 for storing arbors such as BT / SK, HSK, and VDI. 943021 Front height mm 50 I 75 100 I 125 1 150 j 175 IH1II 250 i 300 I 400 i Full extension drawer 200 kg 36x36 units - (133.52) (138.18) (139.73) (148.01) (149.56) (161.98) (164.57) (181.13) (190.44) i 943021 Full extension drawer 75 kg 36x36 units (92.53) (93.98) (98.12) (99.57) (107.13) (111.27) (120.06) (122.65) (144.39) (173.37) Working height mm 32 57 82 107 132 157 182 232 282 382 Shell height mm 31 49 77 77 127 127 177 227 277 277 Drawer usable width Drawer usable depth Weight (943011) mm kg 14.5 15.4 15.8 612 612 16.3 17.1 18.5 18.9 21.2 22.5 Pull-out shelves 100% I-ax n Bottom without holes. Walls on the inside not slotted. 942991 - Full extension drawers 100%extendable, load capacity 200kg. 942996 - Full extension drawers 100 % extendable, load capacity 75 kg. Colour: Signal blue RAL 5005 powder-coated. -942991 Full extension shelf 200 kg 36x36 units (152.67) i942996 Full extension shelf 75 kg 36x36 units (114.37) Usable width mm 612 Usable depth mm 612 Fitted base Made of sheet metal. 943040 - Standard base, 50 mm high, set back 30 mm from the cabinet front. 943080 - Fork lift / pallet truck base 100 mm high with removable covers at front and backfortransport. Suitablefor: Tool cabinets No. 943001,943201,943206,943211 and machine auxiliary cabinet No. 943228 size 1020,943229 size 1020. Colour: Light grey RAL 7035 powder-coated. 1943040 Standard base units6 49.68 i943080 Fork lift/pallet truck base JJjjjj 91.70 Height (94 3040) mm 50 Height (94 3080) mm 100 Width mm 717 Depth mm 695 943080
