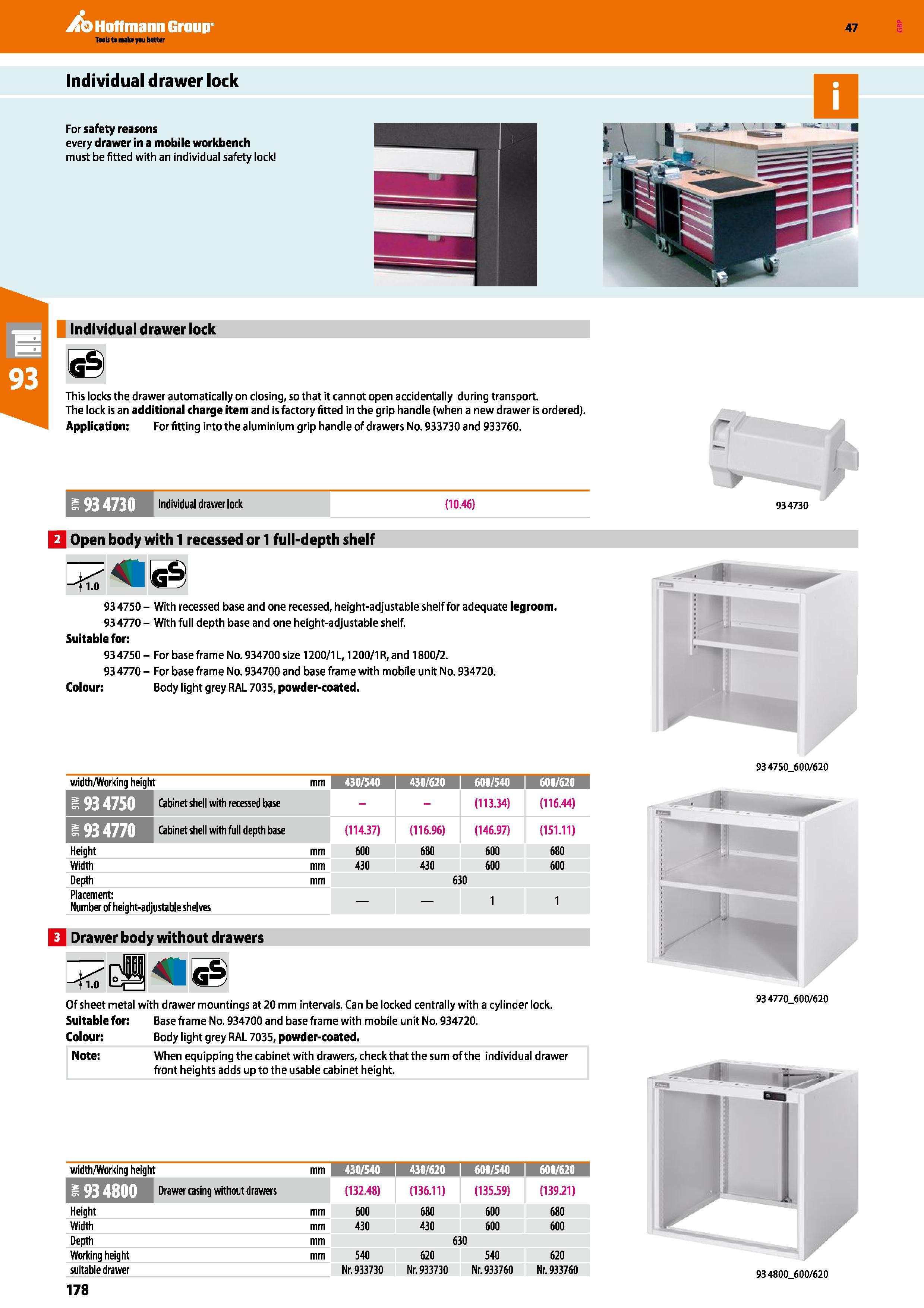

Hoffmann Group 47 Individual drawer lock For safety reasons every drawer in a mobile workbench must be fitted with an individual safety lock Individual drawer lock This locks the drawer automatically on closing, so that it cannot open accidentally during transport. The lock is an additional charge item and is factory fitted in the grip handle (when a new drawer is ordered). Application: For fitting into the aluminium grip handle of drawers No. 933730 and 933760. Individual drawer lock Q Open body with 1 recessed or 1 full-depth shelf (10.46) 934730 1.0 93 4750 - With recessed base and one recessed, height-adjustable shelf for adequate legroom. 93 4770 - With full depth base and one height-adjustable shelf. Suitable for: 93 4750 - For base frame No. 934700 size 1200/1L, 1200/1R, and 1800/2. 934770- For base frame No. 934700 and base frame with mobile unit No. 934720. Colour: Body light grey RAL 7035, powder-coated. fll 93 4750_600/620 width/Working height mm 430/540 430/620 I 600/540 600/620 Pt' R&jCEtXffV Cabinet shell with recessed base - - (113.34) (116.44) urn nsa Cabinet shell with full depth base (114.37) (116.96) (146.97) (151.11) Height mm 600 680 600 680 Width mm 430 430 600 600 Depth mm 630 Placement: Number of height-adjustable shelves 1 1 j Q Drawer body without drawers Of sheet metal with drawer mountings at 20 mm intervals. Can be locked centrally with a cylinder lock. Suitable for: Base frame No. 934700 and base frame with mobile unit No. 934720. Colour: Body light grey RAL 7035, powder-coated. Note: When equipping the cabinet with drawers, check that the sum of the individual drawer front heights adds up to the usable cabinet height. 93 4770_600/620 width/Working height mm 430/540 I 430/620 I 600/540 I 600/620 I Drawer casing without drawers (132.48) (136.11) (135.59) (139.21) Height mm 600 680 600 680 Width mm 430 430 600 600 Depth mm 630 Working height mm 540 620 540 620 suitable drawer Nr. 933730 Nr. 933730 Nr. 933760 Nr. 933760 93 4800_600/620 178
