146 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.146

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 146 0146 ENG Lab2u

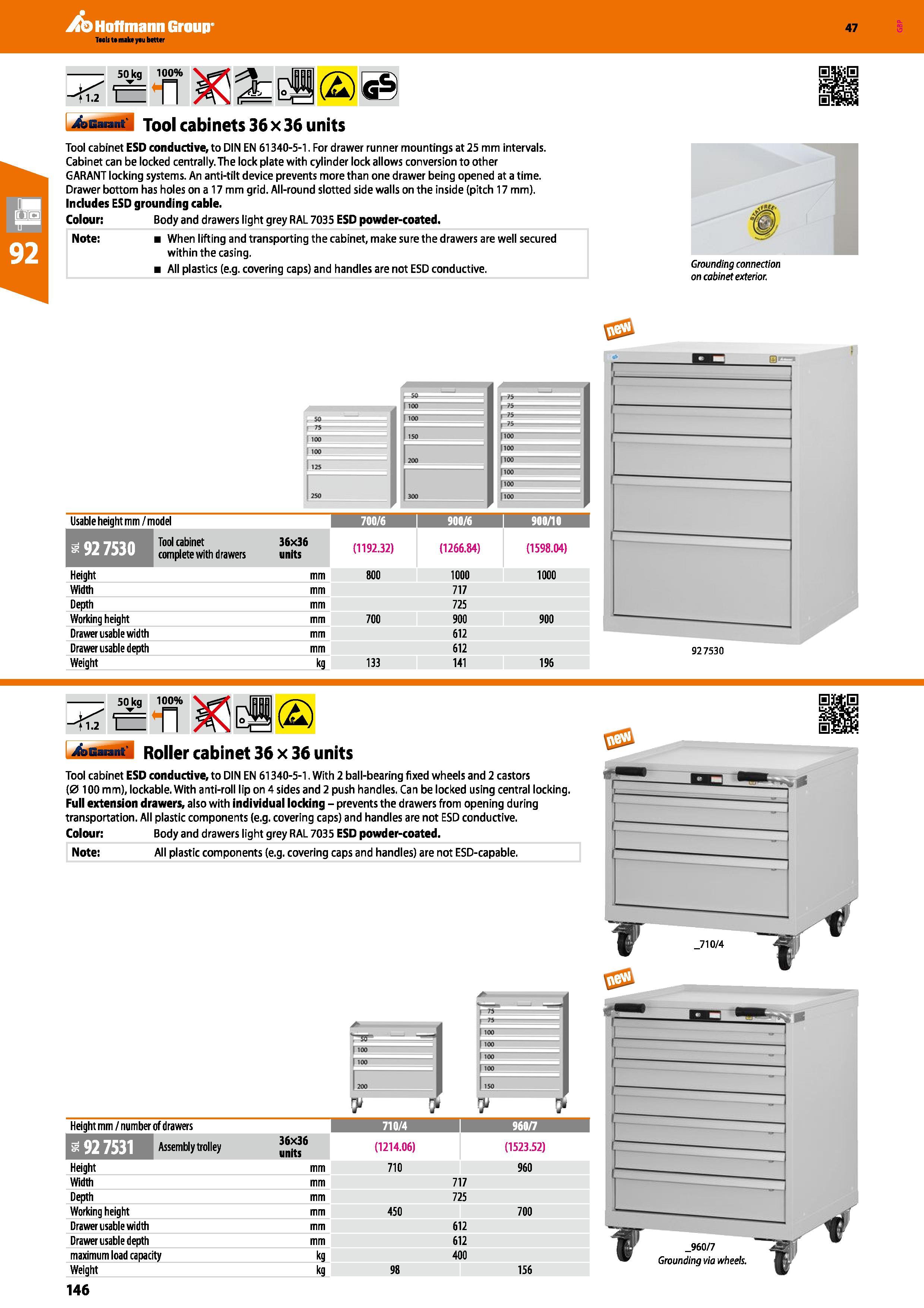

Hoffmann Group 47 50kg Tf <1.2 L bGaiant Tool cabinets 36x36 units Tool cabinet ESD conductive, to DIN EN 61340-5-1. For drawer runner mountings at 25 mm intervals. Cabinet can be locked centrally. The lock plate with cylinder lock allows conversion to other GARANT locking systems. An anti-tilt device prevents more than one drawer being opened at a time. Drawer bottom has holes on a 17 mm grid. All-round slotted side walls on the inside (pitch 17 mm). Includes ESD grounding cable. Colour: Body and drawers light grey RAL 7035 ESD powder-coated. Note: When lifting and transporting the cabinet, make sure the drawers are well secured within the casing. All plastics (e.g. covering caps) and handles are not ESD conductive. Grounding connection on cabinet exterior. Br- r -poo 1100 1100 1100 J'100' poo- Usable height mm /model 700/6 j 900/6 900/10 1 Tool cabinet complete with drawers 36x36 units (1192.32) (1266.84) (1598.04) Height mm 800 1000 1000 Width mm 717 Depth mm 725 Working height mm 700 900 900 Drawer usable width mm 612 Drawer usable depth mm 612 Weight kg 133 141 196 927530 50kg <1.2 L 100% n isGaiant Roller cabinet 36 x 36 units Tool cabinet ESD conductive, to DIN EN 61340-5-1. With 2 ball-bearing fixed wheels and 2 castors (0 100 mm), lockable. With anti-roll lip on 4 sides and 2 push handles. Can be locked using central locking. Full extension drawers, also with individual locking - prevents the drawers from opening during transportation. All plastic components (e.g. covering caps) and handles are not ESD conductive. Colour: Body and drawers light grey RAL 7035 ESD powder-coated. Note: All plastic components (e.g. covering caps and handles) are not ESD-capable. I 100 I 100 Height mm / number of drawers 710/4 1 960/7 I Assembly trolley 36x36 units (1214.06) (1523.52) Height mm 710 960 Width mm 717 Depth mm 725 Working height mm 450 700 Drawer usable width mm 612 Drawer usable depth mm 612 maximum load capacity kg 400 Weight kg 98 156 146
