104 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.104

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 104 0104 ENG Lab2u

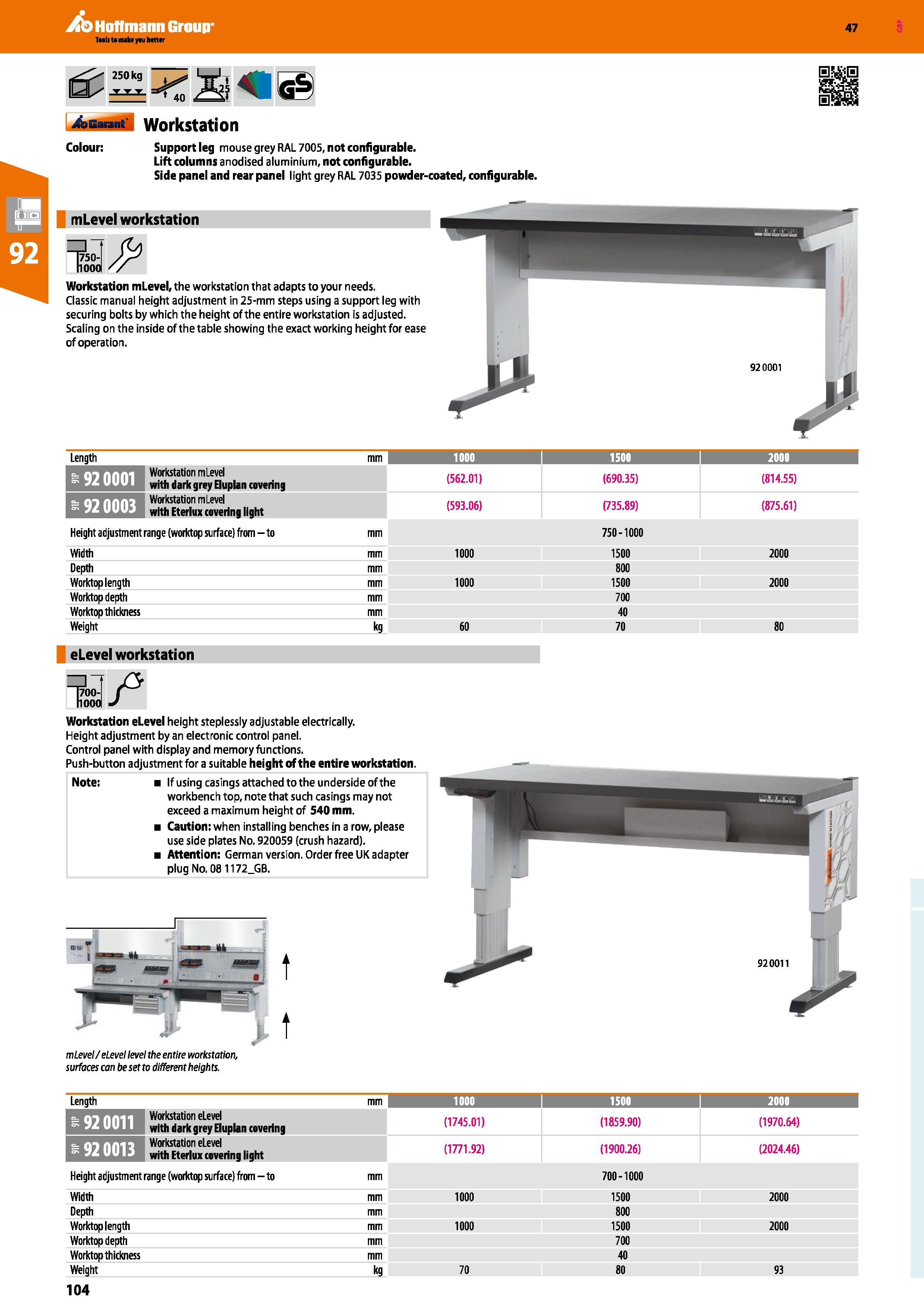

Hoffmann Group 47 4aBM id Workstation Colour: Support leg mouse grey RAL 7005, not configurable. Lift columns anodised aluminium, not configurable. Side panel and rear panel light grey RAL 7035 powder-coated, configurable. mLevel workstation Workstation mLevel, the workstation that adapts to your needs. Classic manual height adjustment in 25-mm steps using a support leg with securing bolts by which the height of the entire workstation is adjusted. Scaling on the inside of the table showing the exact working height for ease of operation. 920001 Length mm 1000 1500 > 2000 i Workstation mLevel with dark grey Eluplan covering (562.01) (690.35) (814.55) BWWWW Workstation mLevel with Eterlux covering light (593.06) (735.89) (875.61) Height adjustment range (worktop surface) from - to mm 750-1000 Width mm 1000 1500 2000 Depth mm 800 Worktop length mm 1000 1500 2000 Worktop depth mm 700 Worktop thickness mm 40 Weight kg 60 70 80 eLevel workstation Workstation eLevel height steplessly adjustable electrically. Height adjustment by an electronic control panel. Control panel with display and memory functions. Push-button adjustment for a suitable height of the entire workstation. Note; If using casings attached to the underside of the workbench top, note that such casings may not exceed a maximum height of 540 mm. Caution: when installing benches in a row, please use side plates No. 920059 (crush hazard). Attention: German version. Order free UK adapter plug No. 08 1172_GB. mLevel/eLevel level the entire workstation, surfaces can beset to different heights. Length mm 1000 I 1500 1 2000 Workstation eLevel with dark grey Eluplan covering (1745.01) (1859.90) (1970.64) PWWffJW Workstation eLevel with Eterlux covering light (1771.92) (1900.26) (2024.46) Height adjustment range (worktop surface) from - to mm 700-1000 Width mm 1000 1500 2000 Depth mm 800 Worktop length mm 1000 1500 2000 Worktop depth mm 700 Worktop thickness mm 40 Weight kg 70 80 93
