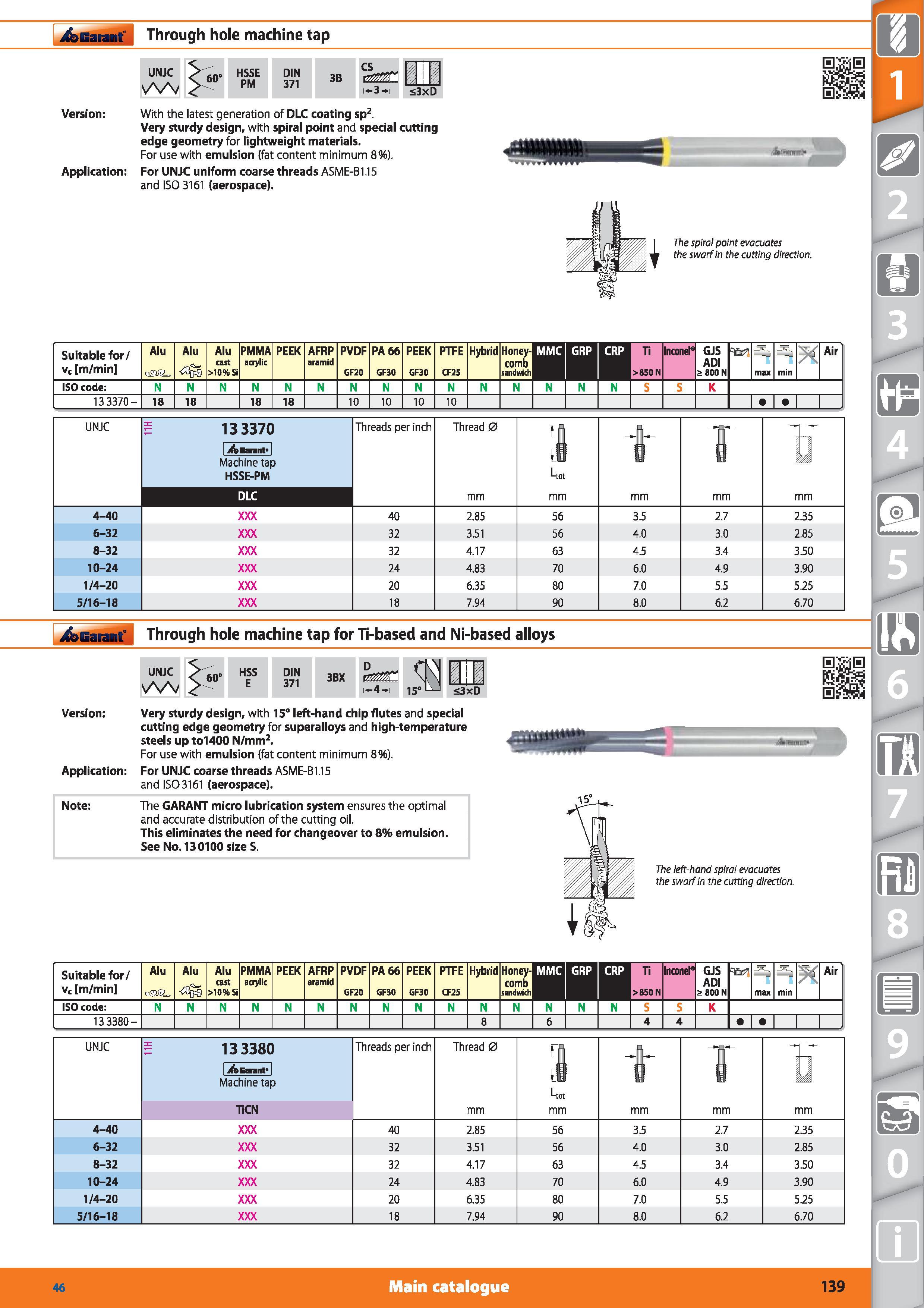

Through hole machine tap Garant UNJC 60 HSSE PM DIN 371 3B 3xD With the latest generation of DLC coating sp2 Very sturdy design, with spiral poin

Through hole machine tap Garant UNJC 60 HSSE PM DIN 371 3B 3xD With the latest generation of DLC coating sp2. Very sturdy design, with spiral point and special cutting edge geometry for lightweight materials. For use with emulsion (fat content minimum 896). For UNJC uniform coarse threads ASME-B1.15 and ISO 3161 (aerospace). The spiral point evacuates the swarf in the cutting direction. Suitable for/ vc m/min Alu qHEL, Alu cast >10% Si PMMA acrylic PEEK AFRP aramid PVDF GF20 PA 66 GF30 PEEK GF30 PTFE CF25 Hybrid Honey- comb sandwich Ti >850 N Inconel8 GJS ADI & 800 N max rr:2 min Air ISO code N K 13 3370- 18 18 18 18 10 10 10 10 1 1 1 UNJC 1 133370 I Eannt' Machine tap HSSE-PM Threads per inch Thread 0 mm Uot mm t DLC mm 4-40 40 2.85 56 3.5 2.7 2.35 6-32 32 3.51 56 4.0 3.0 2.85 8-32 32 4.17 63 4.5 3.4 3.50 10-24 24 4.83 70 6.0 4.9 3.90 1/4-20 20 6.35 80 7.0 5.5 5.25 5/16-18 18 7.94 90 8.0 6.2 6.70 Through hole machine tap for Ti-based and Ni-based alloys UNJC \AA < 60° HSS DIN 371 3BX D x 3 J i 4 i 15° LJ <3xD Version Application Very sturdy design, with 15° left-hand chip flutes and special cutting edge geometry for superalloys and high-temperature steels up to1400 N/mm2. For use with emulsion (fat content minimum 8%). For UNJC coarse threads ASME-B1.15 and ISO 3161 (aerospace). Note The GARANT micro lubrication system ensures the optimal and accurate distribution of the cutting oil. This eliminates the need for changeover to 8% emulsion. See No. 130100 size S. The left-hand spiral evacuates the swarf in the cutting direction. a 1 Suitable for/ Vc m/min Alu osa, Alu cast >10% Si PMMA acrylic PEEK AFRP aramid PVDF GF20 PA 66 GF30 PEEK GF30 PTFE CF25 Hybrid Honey- comb sandwich Ti >850 N Inconel GJS ADI 2 800 N CC3 max min Air ISO code N K 13 3380- 8 6 4 4 1 1 UNJC 1 133380 I Garant I Machine tap Threads per inch Thread 0 mm Uot mm t mm 1 mm TiCN mm 4-40 40 2.85 56 3.5 2.7 2.35 6-32 32 3.51 56 4.0 3.0 2.85 8-32 32 4.17 63 4.5 3.4 3.50 10-24 24 4.83 70 6.0 4.9 3.90 1/4-20 20 6.35 80 7.0 5.5 5.25 5/16-18 18 7.94 90 8.0 6.2 6.70 m Main catalogue Hoffmann Group 46 139 Version Application
