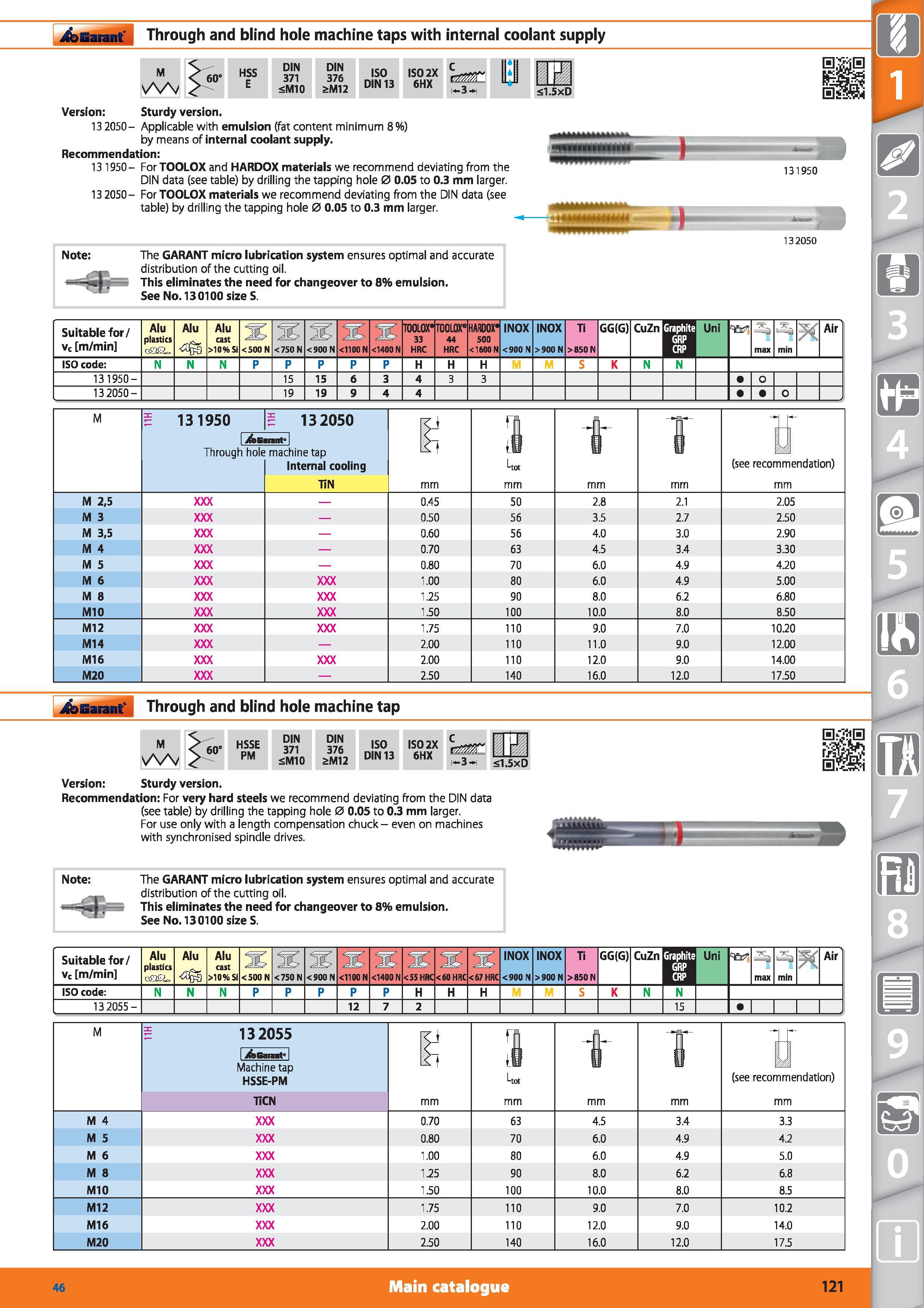

Through and blind hole machine taps Garant with internal coolant supply M 60 HSS E 13 2050- Applicable with emulsion (fat content minimum 8%) by

Through and blind hole machine taps Garant with internal coolant supply M 60 HSS E 13 2050- Applicable with emulsion (fat content minimum 8%) by means of internal coolant supply. Recommendation 13 1950- For TOOLOX and HARDOX materials we recommend deviating from the DIN data (see table) by drilling the tapping hole 0 0.05 to 0.3 mm larger. 13 2050- For TOOLOX materials we recommend deviating from the DIN data (see table) by drilling the tapping hole 0 0.05 to 0.3 mm larger. Note The GARANT micro lubrication system ensures optimal and accurate distribution of the cutting oil. This eliminates the need for changeover to 8% emulsion. See No. 130100 size S. Suitable for/ vc m/min Alu plastics q L Alu cast >10% Si <500 N <750 N <900 N R F1 <1100N 1 -tFT <1400 N rooLox 33 HRC TOOLOX 44 HRC HARDOX 500 <1600N INOX <900 N INOX >900 N Ti >850 N GG(G) CuZn Gra G C 1 Uni 5' '-J max min Air ISO code N P H K N 1 1 13 1 950- 15 15 6 3 4 3 3 O z_\ 13 2050- 19 19 9 4 4 O M 1 131950 J&E Through hole 1 132050 nut1 machine tap Internal cooling TiN mm Uot mm t mm 1 mm (see recon nrr nn lendation) M 2,5 0.45 50 2.8 2.1 2.05 M 3 0.50 56 3.5 2.7 2.50 M 3,5 0.60 56 4.0 3.0 2.90 M 4 0.70 63 4.5 3.4 3.30 M 5 0.80 70 6.0 4.9 4.20 M 6 1.00 80 6.0 4.9 5.00 M 8 1.25 90 8.0 6.2 6.80 M10 1.50 100 10.0 8.0 8.50 Ml 2 1.75 110 9.0 7.0 10.20 M14 2.00 110 11.0 9.0 12.00 M16 2.00 110 12.0 9.0 14.00 M20 2.50 140 16.0 12.0 17.50 m jfbGarantf Through and blind hole machine tap M 60" HSSE PM DIN 371 M10 DIN 376 SM12 ISO DIN 13 IS02X 6HX C >7 mr 1-3 1 5l.5xD Version Sturdy version. Recommendation For very hard steels we recommend deviating from the DIN data (see table) by drilling the tapping hole 0 0.05 to 0.3 mm larger. For use only with a length compensation chuck - even on machines with synchronised spindle drives. Note The GARANT micro lubrication system ensures optimal and accurate distribution of the cutting oil. This eliminates the need for changeover to 8% emulsion. See No. 130100 size S. Suitable for/ vc m/min Alu plastics Alu cast >10% SI <500 N <750 N <900 N <1100 N <1400N 12 INOX <900 N INOX >900 N Ti >850 N GG(G) CuZn B Uni max min Air ISO code N P H K N 13 2055- 12 7 2 15 h M 4 M 5 M 6 M 8 M10 M12 M16 M20 132055 I /b Cauat' I Machine tap HSSE-PM TiCN mm 0.70 0.80 1.00 1.25 1.50 1.75 2.00 2.50 mm 63 70 80 90 100 110 110 140 mm 4.5 6.0 6.0 8.0 10.0 9.0 12.0 16.0 3.4 4.9 4.9 6.2 8.0 7.0 9.0 12.0 (see recommendation) 3.3 4.2 5.0 6.8 8.5 10.2 14.0 17.5 m Main catalogue Hoffmann Group 46 121 DIN 371 -SM10 DIN 376 SM12 ISO DIN 13 IS02X 6HX i-3 i Version Sturdy version.
