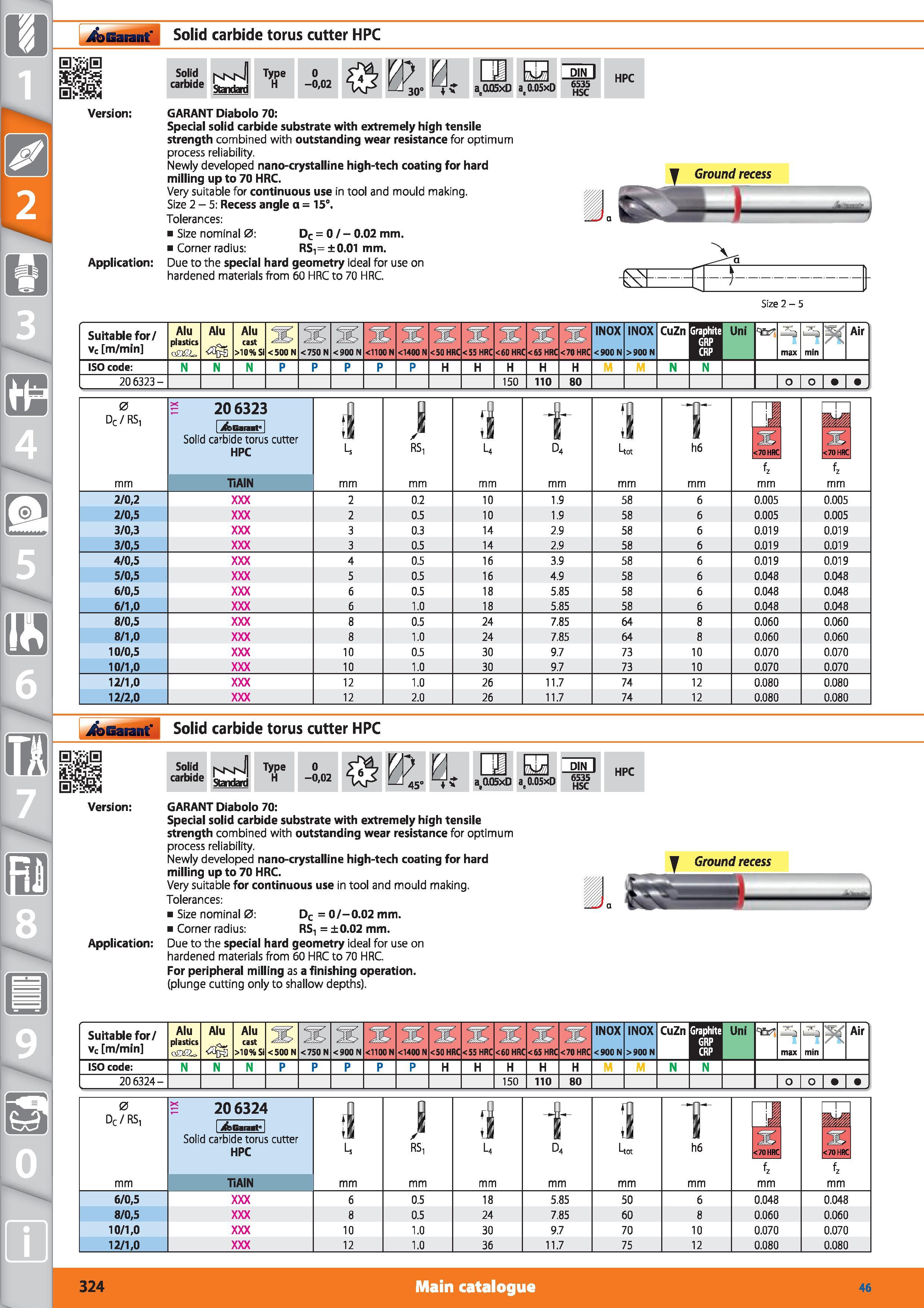

Solid carbide torus cutter HPC Garant Diabolo 70 Special solid carbide substrate with extremely high tensile strength combined with outstanding wear resistance for optimum process reliability. Newly developed nano-crystalline high-tech coating for hard milling up to 70 HRC. Very suitable for continuous use in tool and mould making. Size 2-5 Recess angle a 15°. Tolerances Size nominal 0 Dc 0 / - 0.02 mm. Corner radius RS,= ±0.01 mm. Solid carbide a.OOSxD 1hML a 0.05xD DIN I 6535 HSC HPC Version Application GARANT Due to the special hard geometry ideal for use on hardened materials from 60 HRC to 70 HRC. Ground recess Size 2-5 da Suitable for/ Vc m/min Alu plastics q L> Alu cast >10% Si <500 N <750 N <900 N <1100N <1400N Sc 900 N CuZn B Uni max min Air ISO code N P H N 1 1 206323- 150 110 80 E E E E 0 DC/RS, 206323 1 XbGaiaBt' I Solid carbide torus cutter HPC 1 Ls J RS, i L4 t d4 i Uot T h6 j I <70 HRC X <70 HRC fr fr mm TiAIN mm 2/0,2 2 0.2 10 1.9 58 6 0.005 0.005 2/0,5 2 0.5 10 1.9 58 6 0.005 0.005 3/0,3 3 0.3 14 2.9 58 6 0.019 0.019 3/0,5 3 0.5 14 2.9 58 6 0.019 0.019 4/0,5 4 0.5 16 3.9 58 6 0.019 0.019 5/0,5 5 0.5 16 4.9 58 6 0.048 0.048 6/0,5 6 0.5 18 5.85 58 6 0.048 0.048 6/1,0 6 1.0 18 5.85 58 6 0.048 0.048 8/0,5 8 0.5 24 7.85 64 8 0.060 0.060 8/1,0 8 1.0 24 7.85 64 8 0.060 0.060 10/0,5 10 0.5 30 9.7 73 10 0.070 0.070 10/1,0 10 1.0 30 9.7 73 10 0.070 0.070 12/1,0 12 1.0 26 11.7 74 12 0.080 0.080 12/2,0 12 2.0 26 11.7 74 12 0.080 0.080 (Ul to j&Gaiantf Solid carbide torus cutter HPC Solid carbide a.005xD a 0.05xD DIN 6535 HSC HPC Application GARANT Diabolo 70 Special solid carbide substrate with extremely high tensile strength combined with outstanding wear resistance for optimum process reliability. Newly developed nano-crystalline high-tech coating for hard milling up to 70 HRC. Very suitable for continuous use in tool and mould making. Tolerances Size nominal 0 Dc 0/-0.02 mm. Corner radius RS, ±0.02 mm. Due to the special hard geometry ideal for use on hardened materials from 60 HRC to 70 HRC. For peripheral milling as a finishing operation. (plunge cutting only to shallow depths). T Ground recess Suitable for/ vc m/min Alu plastics Alu cast >10% Si <500 N <750 N <900 N <1100 N \m\ <1400 N 900 N CuZn B Uni max i a min Air ISO code N P H N 1 1 206324- 150 110 80 E E E E 0 Dc/RS, 206324 I XbGaraat' Solid carbide torus cutter HPC TiAIN / RS, mm T h6 fz mm jjj I <70 HRC <70 HRC fz mm 6/0,5 8/0,5 10/1,0 12/1,0 10 12 0.5 0.5 1.0 1.0 18 24 30 36 5.85 7.85 9.7 11.7 50 60 70 75 10 12 0.048 0.060 0.070 0.080 0.048 0.060 0.070 0.080 324 Main catalogue Hoffmann Group 46
