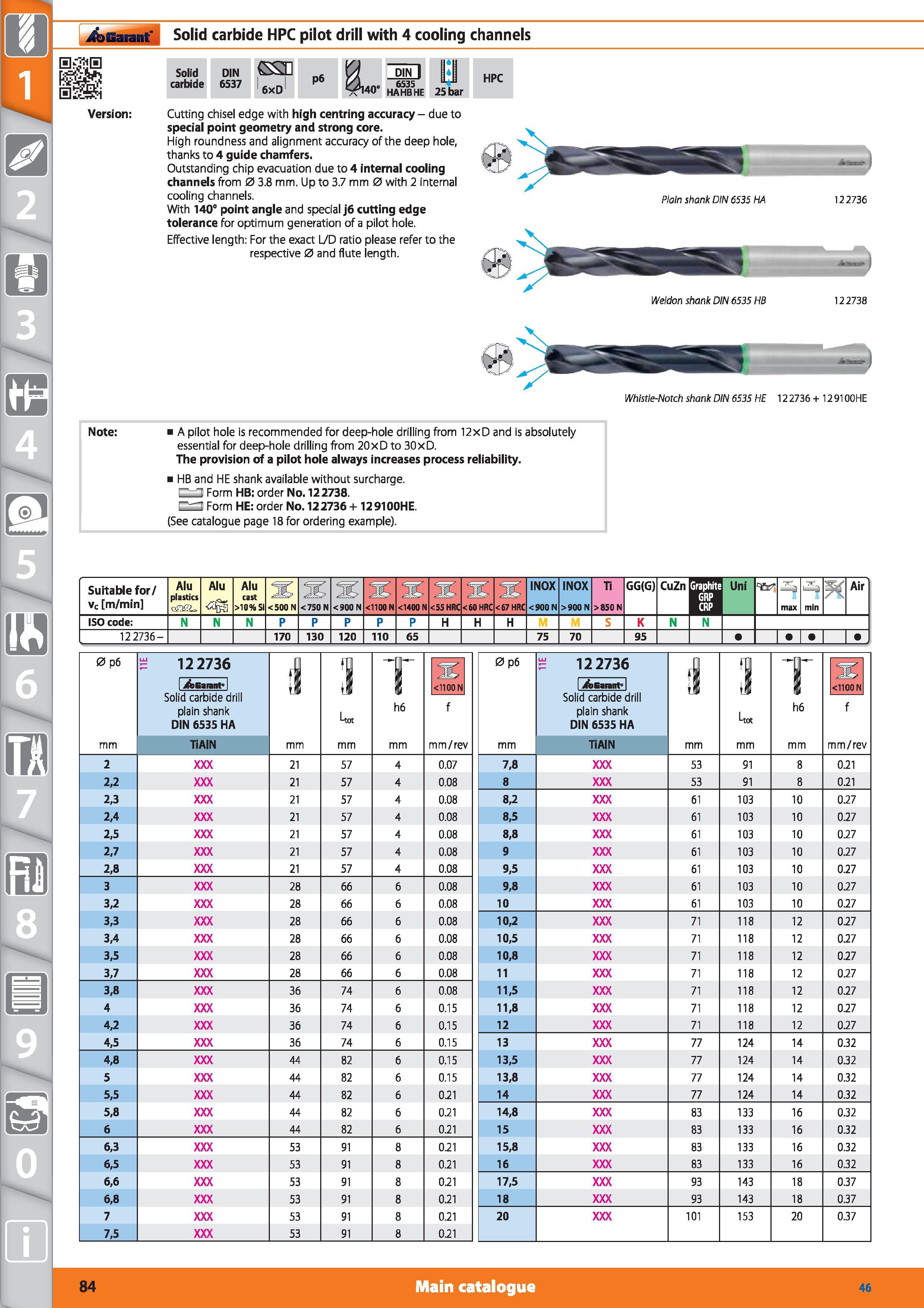

Solid carbide HPC pilot drill Garant with 4 cooling channels Cutting chisel edge with high centring accuracy - due to special point geometry and strong core. High roundness and alignment accuracy of the deep hole, thanks to 4 guide chamfers. Outstanding chip evacuation due to 4 internal cooling channels from 0 3.8 mm. Up to 3.7 mm 0 with 2 internal cooling channels. Version Solid carbide DIN 6537 6xD p6 I40‘ DIN I 6535 HAHBHE 25 bar With 140° point angle and special j6 cutting edge tolerance for optimum generation of a pilot hole. Effective length For the exact L/D ratio please refer to the respective 0 and flute length. HPC Plain shank DIN 6535 HA Weldon shank DIN 6535 HB 122736 122738 Whistle-Notch shank DIN 6535 HE 12 2736 + 12 9100HE Note A pilot hole is recommended for deep-hole drilling from 12xD and is absolutely essential for deep-hole drilling from 20xD to 30xD. The provision of a pilot hole always increases process reliability. HB and HE shank available without surcharge. Form HB order No. 122738. Form HE order No. 122736 + 129100HE. (See catalogue page 18 for ordering example). Suitable for/ Alu plastics osaffic Alu cast >10% Si 25 25 25 y" ’ y" ’ TZ 5 INOX Ti GG(G) CuZn Grap GF CF vc m/min <500 N <750 N <900 N <67 HRC <900 N >900 N >850 N ISO code N P H K N 12 2736- 170 130 120 110 65 75 70 95 w Uni i 3 Air max min a 0 p6 12 2736 si s Uot T h6 <1100 N 0 p6 12 2736 si 1 Uot T h6 <1100 N 1 Garant I 1 J&Girarrt 1 Solid carbide drill plain shank DIN 6535 HA f Solid carbide drill plain shank DIN 6535 HA f mm TiAIN mm mm/rev mm TiAIN mm mm/rev 2 21 57 4 0.07 7,8 53 91 8 0.21 2,2 21 57 4 0.08 8 53 91 8 0.21 2,3 21 57 4 0.08 8,2 61 103 10 0.27 2,4 21 57 4 0.08 8,5 61 103 10 0.27 2,5 21 57 4 0.08 8,8 61 103 10 0.27 2,7 21 57 4 0.08 9 61 103 10 0.27 2,8 21 57 4 0.08 9,5 61 103 10 0.27 3 28 66 6 0.08 9,8 61 103 10 0.27 3,2 28 66 6 0.08 10 61 103 10 0.27 3,3 28 66 6 0.08 10,2 71 118 12 0.27 3,4 28 66 6 0.08 10,5 71 118 12 0.27 3,5 28 66 6 0.08 10,8 71 118 12 0.27 3,7 28 66 6 0.08 11 71 118 12 0.27 3,8 36 74 6 0.08 11,5 71 118 12 0.27 4 36 74 6 0.15 11,8 71 118 12 0.27 4,2 36 74 6 0.15 12 71 118 12 0.27 4,5 36 74 6 0.15 13 77 124 14 0.32 4,8 44 82 6 0.15 13,5 77 124 14 0.32 5 44 82 6 0.15 13,8 77 124 14 0.32 5,5 44 82 6 0.21 14 77 124 14 0.32 5,8 44 82 6 0.21 14,8 83 133 16 0.32 6 44 82 6 0.21 15 83 133 16 0.32 6,3 53 91 8 0.21 15,8 83 133 16 0.32 6,5 53 91 8 0.21 16 83 133 16 0.32 6,6 53 91 8 0.21 17,5 93 143 18 0.37 6,8 53 91 8 0.21 18 93 143 18 0.37 7 53 91 8 0.21 20 101 153 20 0.37 7,5 53 91 8 0.21 84 Main catalogue
