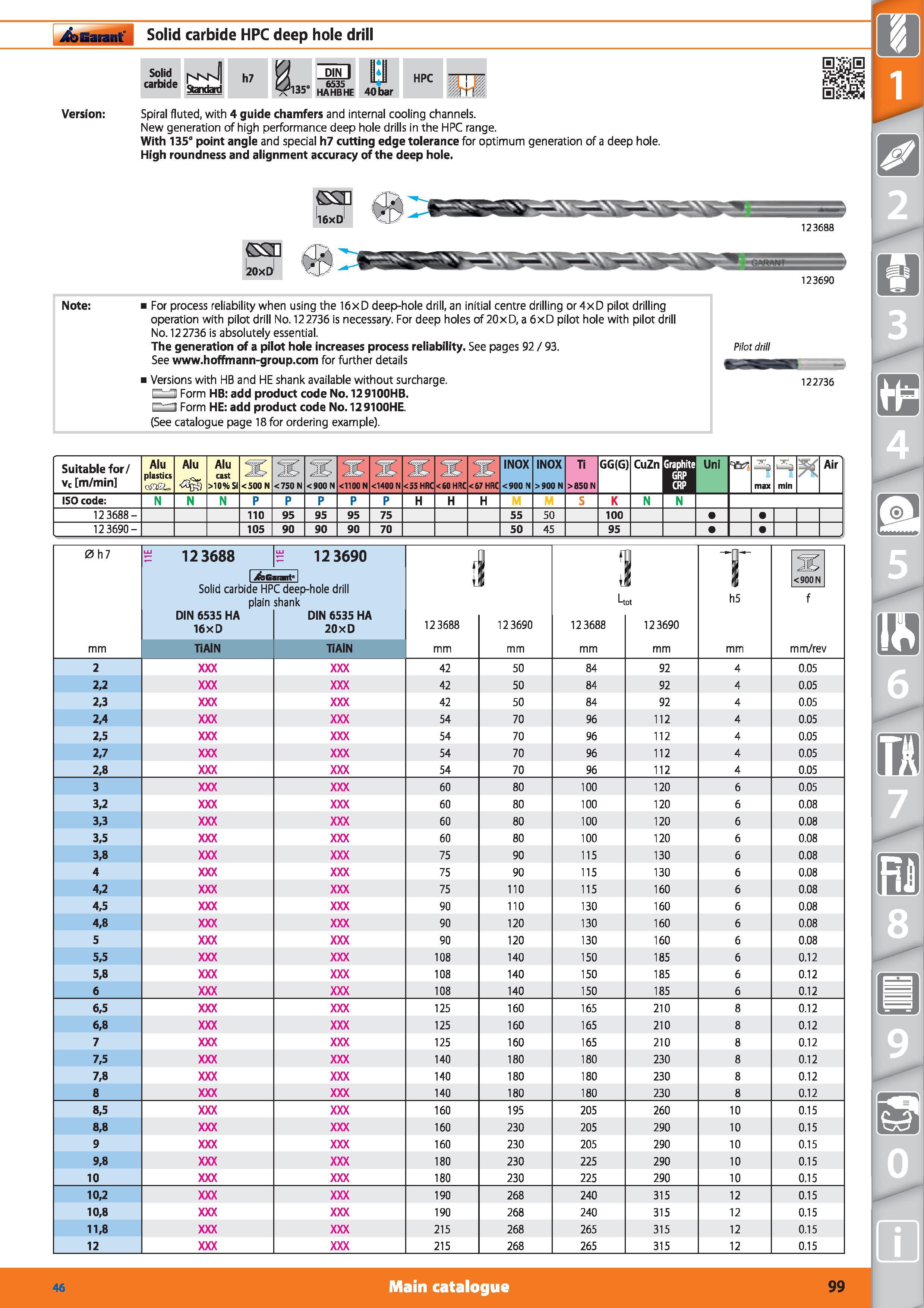

Solid carbide HPC deep hole drill Garant Spiral fluted, with 4 guide chamfers and internal cooling channels New generation of high performance de

Solid carbide HPC deep hole drill Garant Spiral fluted, with 4 guide chamfers and internal cooling channels. New generation of high performance deep hole drills in the HPC range. With 135° point angle and special h7 cutting edge tolerance for optimum generation of a deep hole. High roundness and alignment accuracy of the deep hole. 20xD 16xD 123688 123690 Note For process reliability when using the 16xD deep-hole drill, an initial centre drilling or4xD pilot drilling operation with pilot drill No. 122736 is necessary. For deep holes of 20xD, a 6xD pilot hole with pilot drill No. 122736 is absolutely essential. The generation of a pilot hole increases process reliability. See pages 92 / 93. See for further details Versions with HB and HE shank available without surcharge. Form HB add product code No. 129100HB. Form HE add product code No. 129100HE. (See catalogue page 18 for ordering example). Pilot drill 122736 Suitable for/ vc m/min Alu plastics Alu <2 Alu cast >10% SI <500 N <750 N <900 N <1100N <1400N n 5 INOX <900 N INOX >900 N Ti >850 N GG(G) CuZn B Uni max 1= =3 mln Air ISO code N P H K N 1 12 3688- 110 95 95 95 75 55 50 100 z_\ 12 3690- 105 90 90 90 70 50 45 95 ZD 0 h 7 123688 12 3690 12 3688 123690 L, 123688 Ot 123690 I h5 1 i&Gamnt" 1 <900N 30iia carraae nr plain DIN 6535 HA 16xD aeep-noie arm shank DIN 6535 HA 20xD f mm TiAIN mm mm/rev 2 42 50 84 92 4 0.05 2,2 42 50 84 92 4 0.05 2,3 42 50 84 92 4 0.05 2,4 54 70 96 112 4 0.05 2,5 54 70 96 112 4 0.05 2,7 54 70 96 112 4 0.05 2,8 54 70 96 112 4 0.05 3 60 80 100 120 6 0.05 3,2 60 80 100 120 6 0.08 3,3 60 80 100 120 6 0.08 3,5 60 80 100 120 6 0.08 3,8 75 90 115 130 6 0.08 4 75 90 115 130 6 0.08 4,2 75 110 115 160 6 0.08 4,5 90 110 130 160 6 0.08 4,8 90 120 130 160 6 0.08 5 90 120 130 160 6 0.08 5,5 108 140 150 185 6 0.12 5,8 108 140 150 185 6 0.12 6 108 140 150 185 6 0.12 6,5 125 160 165 210 8 0.12 6,8 125 160 165 210 8 0.12 7 125 160 165 210 8 0.12 7,5 140 180 180 230 8 0.12 7,8 140 180 180 230 8 0.12 8 140 180 180 230 8 0.12 8,5 160 195 205 260 10 0.15 8,8 160 230 205 290 10 0.15 9 160 230 205 290 10 0.15 9,8 180 230 225 290 10 0.15 10 180 230 225 290 10 0.15 10,2 190 268 240 315 12 0.15 10,8 190 268 240 315 12 0.15 11,8 215 268 265 315 12 0.15 12 215 268 265 315 12 0.15 Main catalogue Hoffmann Group 46 99 Version Solid carbide VN J Standard h7 35' DIN I 6535 HAHBHE 40 bar HPC
