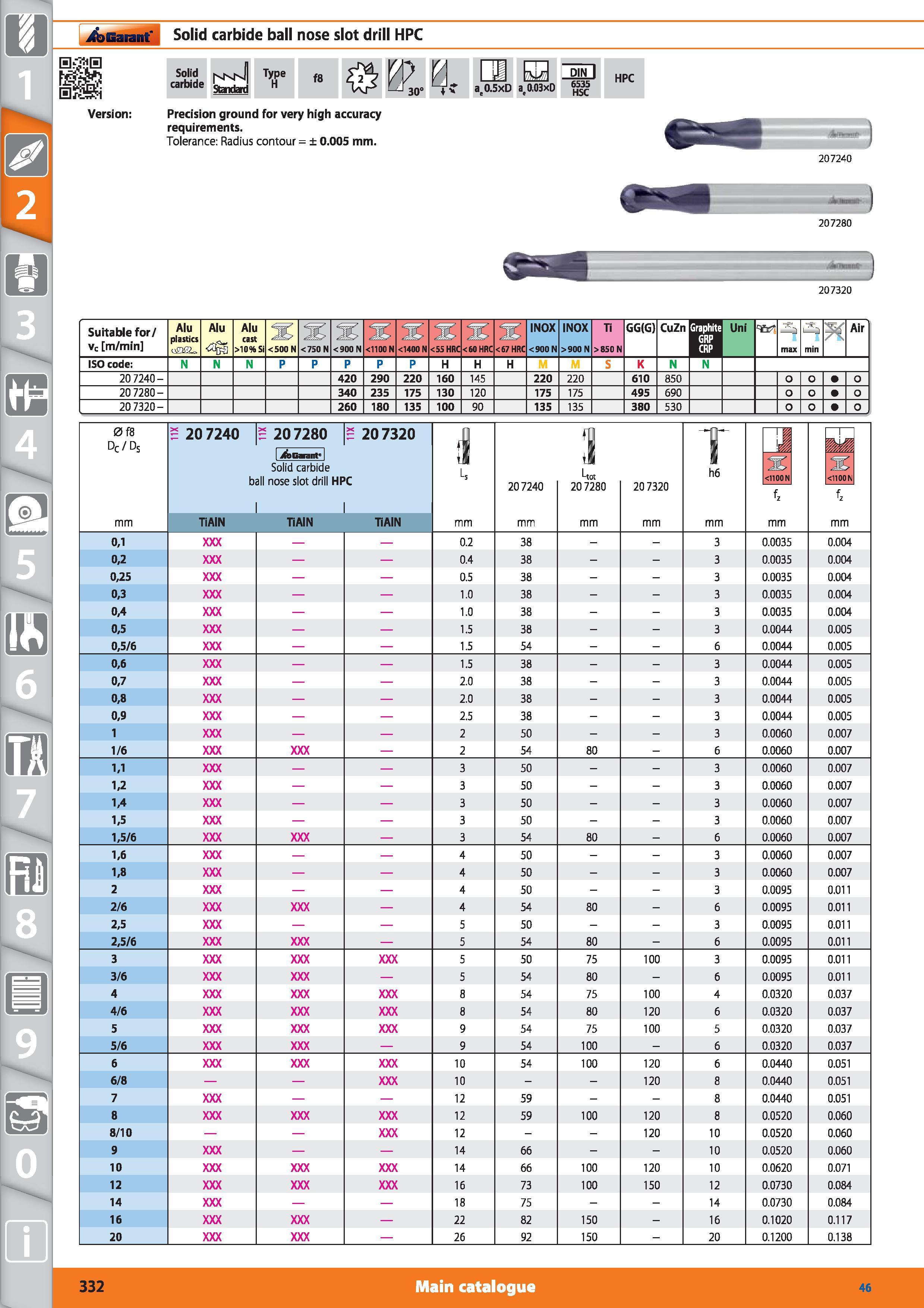

Solid carbide ball nose slot drill HPC Solid carbide hM fl T>Pe f8 d Standard M 30° \ t ae0.5xD 1hML a 0,03xD DIN I 6535 HSC HPC Precision ground for very high accuracy requirements. Tolerance Radius contour ± 0.005 mm. 207240 207280 n 207320 Suitable for/ vc m/min Alu plastics Alu cast >10% Si <500 N <750 N <900 N S'r< <1100N <1400 N li n 900 N Ti >850 N GG(G) CuZn B Uni max i 2 min Air ISO code N P H K N 1 1 20 7240- 420 290 220 160 145 220 220 610 850 0 20 7280- 340 235 175 130 120 175 175 495 690 0 20 7320- 260 180 135 100 90 135 135 380 530 0 0f8 Dc/Ds 20 7240 207280 207320 j s Ls 1 1 r 16 J I JfeGrnit" Solid carbide ball nose slot drill HPC 207240 tl Uot 20 7280 20 7320 <1100 N <1100 N fz fz mm TiAIN mm 0,1 0.2 38 - 3 0.0035 0.004 0,2 0.4 38 - 3 0.0035 0.004 0,25 0.5 38 - 3 0.0035 0.004 0,3 1.0 38 - 3 0.0035 0.004 0A 1.0 38 - 3 0.0035 0.004 0,5 1.5 38 - 3 0.0044 0.005 0,5/6 1.5 54 - 6 0.0044 0.005 0,6 1.5 38 - 3 0.0044 0.005 0,7 2.0 38 - 3 0.0044 0.005 0,8 2.0 38 - 3 0.0044 0.005 0,9 2.5 38 - 3 0.0044 0.005 1 2 50 - 3 0.0060 0.007 1/6 2 54 80 - 6 0.0060 0.007 1,1 3 50 - 3 0.0060 0.007 1,2 3 50 - 3 0.0060 0.007 1,4 3 50 - 3 0.0060 0.007 1,5 3 50 - 3 0.0060 0.007 1,5/6 3 54 80 - 6 0.0060 0.007 1,6 4 50 - 3 0.0060 0.007 1,8 4 50 - 3 0.0060 0.007 2 4 50 - 3 0.0095 0.011 2/6 4 54 80 - 6 0.0095 0.011 2,5 5 50 - 3 0.0095 0.011 2,5/6 5 54 80 - 6 0.0095 0.011 3 5 50 75 100 3 0.0095 0.011 3/6 5 54 80 - 6 0.0095 0.011 4 8 54 75 100 4 0.0320 0.037 4/6 8 54 80 120 6 0.0320 0.037 5 9 54 75 100 5 0.0320 0.037 5/6 9 54 100 - 6 0.0320 0.037 6 10 54 100 120 6 0.0440 0.051 6/8 10 - 120 8 0.0440 0.051 7 12 59 - 8 0.0440 0.051 8 12 59 100 120 8 0.0520 0.060 8/10 12 - 120 10 0.0520 0.060 9 14 66 - 10 0.0520 0.060 10 14 66 100 120 10 0.0620 0.071 12 16 73 100 150 12 0.0730 0.084 14 18 75 - 14 0.0730 0.084 16 22 82 150 - 16 0.1020 0.117 20 26 92 150 - 20 0.1200 0.138 332 Main catalogue Hoffmann Group 46
