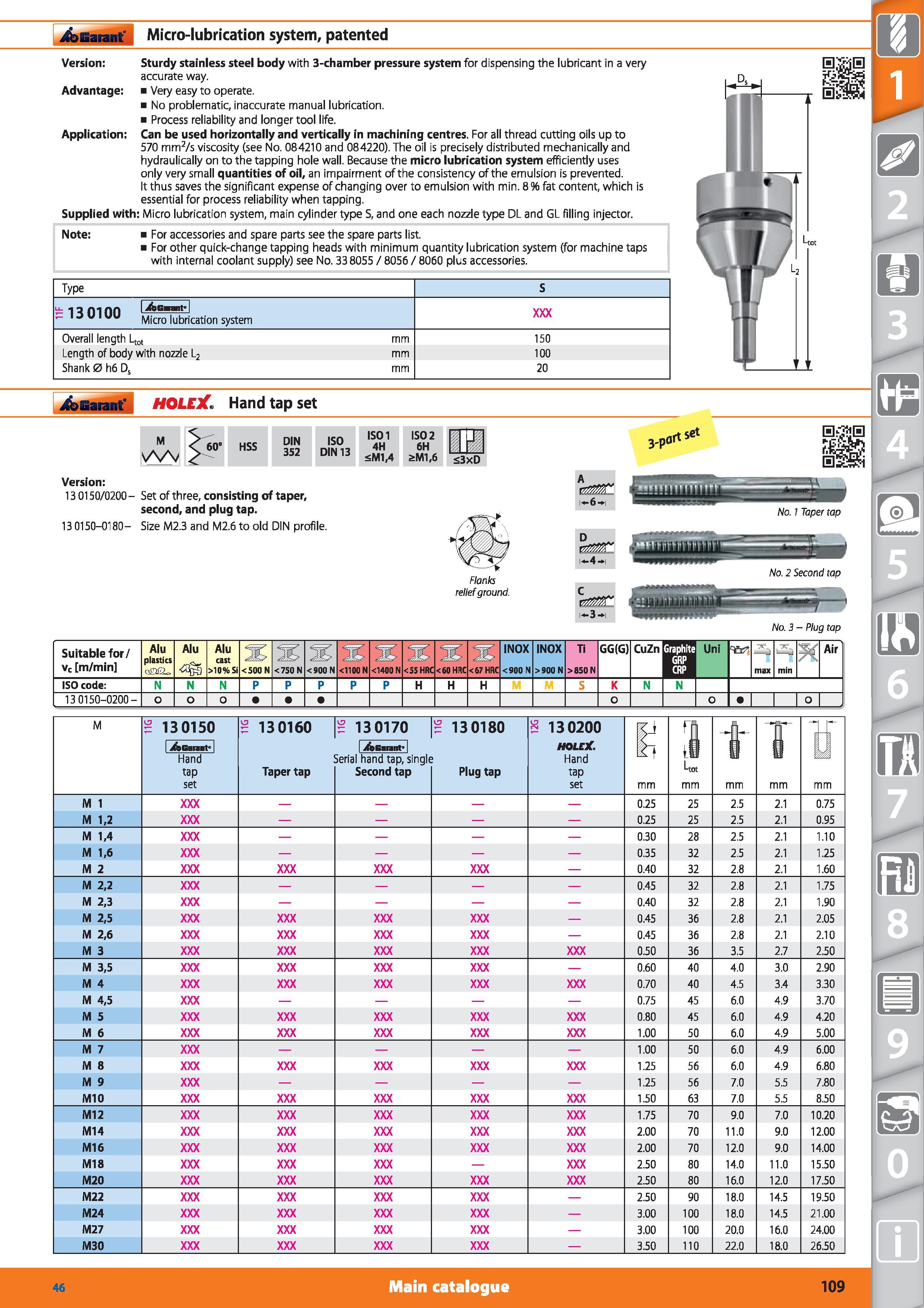

Micro-lubrication system Garant patented Version Sturdy stainless steel body with 3-chamber pressure system for dispensing the lubricant in a ver

Micro-lubrication system Garant patented Version Sturdy stainless steel body with 3-chamber pressure system for dispensing the lubricant in a very accurate way. Advantage Very easy to operate. No problematic, inaccurate manual lubrication. Process reliability and longer tool life. Application Can be used horizontally and vertically in machining centres. For all thread cutting oils up to 570 mm2/s viscosity (see No. 084210 and 084220). The oil is precisely distributed mechanically and hydraulically on to the tapping hole wall. Because the micro lubrication system efficiently uses only very small quantities of oil, an impairment of the consistency of the emulsion is prevented. It thus saves the significant expense of changing over to emulsion with min. 8% fat content, which is essential for process reliability when tapping. Supplied with Micro lubrication system, main cylinder type S, and one each nozzle type DL and GL filling injector. Note For accessories and spare parts see the spare parts list. For other quick-change tapping heads with minimum quantity lubrication system (for machine taps with internal coolant supply) see No. 33 8055 / 8056 / 8060 plus accessories. Type S -13 0100 1 B Micro lubrication system Overall length L,ot mm 150 Length of body with nozzle l2 mm 100 Shank 0 h6 Ds mm 20 jfcGajarijd HOLEX Hand tap set M 60' HSS DIN 352 ISO DIN 13 IS01 4H 10% Si <500 N <750 N <900 N W\ <1100 N 1 1 <1400 N <55 HRC <60 HRC <67 HRC INOX <900 N INOX >900 N Ti >850 N GG(G) CuZn Gra G C 1 Uni max min Air ISO code N P H K N 13 0150-0200 - O 1 1 1 0 1 M 130150 XbCaraat' S 130160 Taper tap ” 130170 I J&Earant’ t 130180 Plug tap 130200 HOLEX Hand tap set mm Uot mm t mm 1 mm nri Hand tap set Serial hand tap, single Second tap M 1 0.25 25 2.5 2.1 0.75 M 1,2 0.25 25 2.5 2.1 0.95 M 1,4 0.30 28 2.5 2.1 1.10 M 1,6 0.35 32 2.5 2.1 1.25 M 2 0.40 32 2.8 2.1 1.60 M 2,2 0.45 32 2.8 2.1 1.75 M 2,3 0.40 32 2.8 2.1 1.90 M 2,5 0.45 36 2.8 2.1 2.05 M 2,6 0.45 36 2.8 2.1 2.10 M 3 0.50 36 3.5 2.7 2.50 M 3,5 0.60 40 4.0 3.0 2.90 M 4 0.70 40 4.5 3.4 3.30 M 4,5 0.75 45 6.0 4.9 3.70 M 5 0.80 45 6.0 4.9 4.20 M 6 1.00 50 6.0 4.9 5.00 M 7 1.00 50 6.0 4.9 6.00 M 8 1.25 56 6.0 4.9 6.80 M 9 1.25 56 7.0 5.5 7.80 M10 1.50 63 7.0 5.5 8.50 Ml 2 1.75 70 9.0 7.0 10.20 M14 2.00 70 11.0 9.0 12.00 M16 2.00 70 12.0 9.0 14.00 M18 2.50 80 14.0 11.0 15.50 M20 2.50 80 16.0 12.0 17.50 M22 2.50 90 18.0 14.5 19.50 M24 3.00 100 18.0 14.5 21.00 M27 3.00 100 20.0 16.0 24.00 M30 3.50 110 22.0 18.0 26.50 Main catalogue Hoffmann Group 46 109
