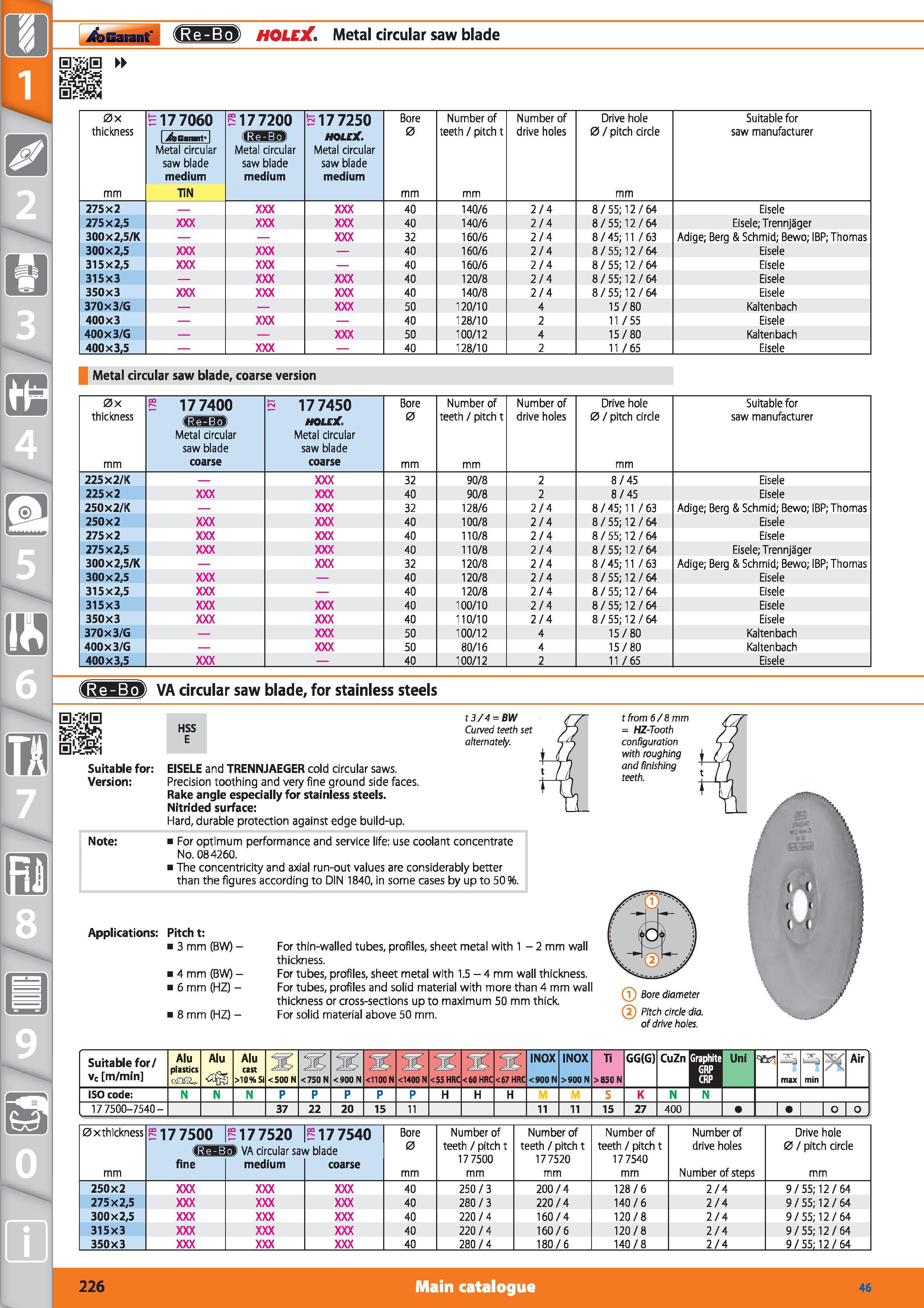

Metal circular saw blade HOLEX thickness mm 17 7060 Garant Metal circular saw blade medium TIN 177200 Metal circular saw blade medium 517 7250 HO

Metal circular saw blade HOLEX thickness mm 17 7060 Garant Metal circular saw blade medium TIN "177200 Metal circular saw blade medium 517 7250 HOLEX Metal circular saw blade medium Bore 0 mm Number of teeth / pitch t mm Number of drive holes Drive hole 0 / pitch circle mm Suitable for saw manufacturer 275x2 40 140/6 2/4 8/55;12/64 Eisele 275X2,5 40 140/6 2/4 8/55; 12/64 Eisele; Trennjager 300x2,5/K 32 160/6 2/4 8/45; 11 / 63 Adige; Berg & Schmid; Bewo; IBP; Thomas 300x2,5 40 160/6 2/4 8/55; 12/64 Eisele 315x2,5 40 160/6 2/4 8/55;12/64 Eisele 315X3 40 120/8 2/4 8/55; 12/64 Eisele 350x3 40 140/8 2/4 8/55; 12/64 Eisele 370X3/G 50 120/10 4 15/80 Kaltenbach 400X3 40 128/10 2 11 / 55 Eisele 400X3/G 50 100/12 4 15/80 Kaltenbach 400x3.5 40 128/10 2 11 /65 Eisele Metal circular saw blade, coarse version 0x thickness mm 17 7400 Metal circular saw blade coarse 5 17 7450 HOLEX Metal circular saw blade coarse Bore 0 mm Number of teeth / pitch t mm Number of drive holes Drive hole 0 / pitch circle mm Suitable for saw manufacturer 225X2/K 32 90/8 2 8/45 Eisele 225x2 40 90/8 2 8/45 Eisele 250X2/K 32 128/6 2/4 8/45; 11 / 63 Adige; Berg & Schmid; Bewo; IBP; Thomas 250X2 40 100/8 2/4 8/55; 12/64 Eisele 275x2 40 110/8 2/4 8 / 55; 12 / 64 Eisele 275X2,5 40 110/8 2/4 8/55; 12/64 Eisele; Trennjager 300X2.5/K 32 120/8 2/4 8/45; 11 / 63 Adige; Berg & Schmid; Bewo; IBP; Thomas 300x2,5 40 120/8 2/4 8/55; 12/64 Eisele 315x2,5 40 120/8 2/4 8 / 55; 12 / 64 Eisele 315X3 40 100/10 2/4 8/55; 12/64 Eisele 350X3 40 110/10 2/4 8/55; 12/64 Eisele 370X3/G 50 100/12 4 15/80 Kaltenbach 400X3/G 50 80/16 4 15/80 Kaltenbach 400X3.5 40 100/12 2 11 / 65 Eisele gia:gl VA circular saw blade, for stainless steels HSS E t3/4 BW Curved teeth set alternately. Suitable for Version EISELE and TRENNJAEGER cold circular saws. Precision toothing and very fine ground side faces. Rake angle especially for stainless steels. Nitrided surface Hard, durable protection against edge build-up. f from 6/8 mm HZ-Tooth configuration with roughing and finishing teeth. Note For optimum performance and service life use coolant concentrate No. 084260. The concentricity and axial run-out values are considerably better than the figures according to DIN 1840, in some cases by up to 50%. Applications Pitch t 3 mm (BW) - 4 mm (BW) - 6 mm (HZ) - 8 mm (HZ) - For thin-walled tubes, profiles, sheet metal with 1 - 2 mm wall thickness. For tubes, profiles, sheet metal with 1.5 - 4 mm wall thickness. For tubes, profiles and solid material with more than 4 mm wall thickness or cross-sections up to maximum 50 mm thick For solid material above 50 mm. (T) Bore diameter (5) Pitch circle dia. of drive holes. Suitable for/ vc m/min Alu plastics omu Alu cast >10% Si <500 N <750 N <900 N pH <1100N <1400 N <55 HRC <60 HRC <67 HRC INOX <900 N INOX >900 N Ti >850 N GG(G) CuZn B Uni max min Air ISO code N P H K N 1 1 17 7500-7540- 37 22 20 15 11 11 11 15 27 400 L°J 0xthickness mm “17 7500 fine “177520 SI VA circular sav medium “17 7540 v blade coarse Bore 0 mm Number of teeth / pitch t 17 7500 mm Number of teeth / pitch t 177520 mm Number of teeth / pitch t 17 7540 mm Number of drive holes Number of steps Drive hole 0 / pitch circle mm 250X2 40 250/3 200 /4 128/6 2/4 9 / 55; 12 / 64 275X2,5 40 280/3 220/4 140/6 2/4 9 / 55; 12 / 64 300x2,5 40 220/4 160/4 120/8 2/4 9 / 55; 12 / 64 315X3 40 220/4 160/6 120/8 2/4 9 / 55; 12 / 64 350X3 40 280/4 180/6 140/8 2/4 9/55:12/64 226 Main catalogue Hoffmann Group 46
