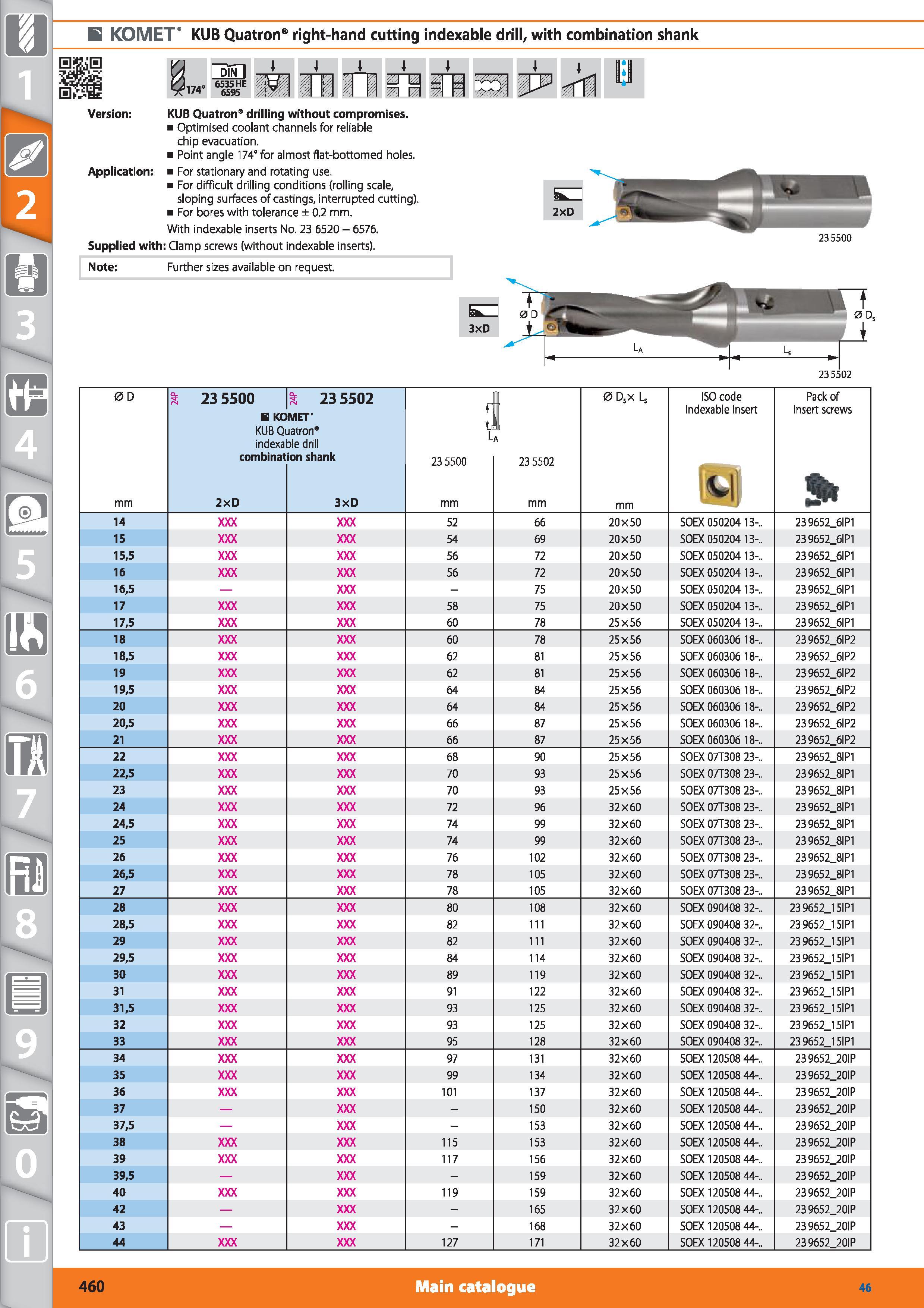

KOMET KUB Quatron right-hand cutting indexable drill, with combination shank KUB Quatron drilling without compromises Optimised coolant channels

KOMET KUB Quatron right-hand cutting indexable drill, with combination shank KUB Quatron drilling without compromises. Optimised coolant channels for reliable chip evacuation. Point angle 174“ for almost flat-bottomed holes. Application For stationary and rotating use. For difficult drilling conditions (rolling scale, sloping surfaces of castings, interrupted cutting). For bores with tolerance ± 0.2 mm. With indexable inserts No. 23 6520 - 6576. Supplied with Clamp screws (without indexable inserts). 2xD Note Further sizes available on request. 0 D mm s 23 5500 E KO KUBQ indexa combinat 2xD a 235502 MET1 jatron )le drill on shank 3xD d L 23 5500 mm 23 5502 mm 0 DSX Ls mm ISO code indexable insert m Pack of insert screws 14 52 66 20x50 SOEX 050204 13- 23 9652_6IP1 15 54 69 20x50 SOEX 050204 13- 239652_6IP1 15,5 56 72 20X50 SOEX 050204 13- 23 9652_6IP1 16 56 72 20X50 SOEX 050204 13- 239652_6IP1 16,5 - 75 20X50 SOEX 050204 13- 23 9652_6IP1 17 58 75 20X50 SOEX 050204 13- 239652_6IP1 17,5 60 78 25X56 SOEX 050204 13- 23 9652_6IP1 18 60 78 25X56 SOEX 060306 18- 239652_6IP2 18,5 62 81 25x56 SOEX 060306 18- 23 9652_6IP2 19 62 81 25x56 SOEX 060306 18- 239652_6IP2 19,5 64 84 25x56 SOEX 060306 18- 23 9652_6IP2 20 64 84 25x56 SOEX 060306 18- 239652_6IP2 20,5 66 87 25x56 SOEX 060306 18- 239652_6IP2 21 66 87 25x56 SOEX 060306 18- 239652_6IP2 22 68 90 25x56 SOEX 07T308 23- 239652_8IP1 22,5 70 93 25X56 SOEX 07T308 23- 239652_8IP1 23 70 93 25X56 SOEX 07T308 23- 239652_8IP1 24 72 96 32X60 SOEX 07T308 23- 239652_8IP1 24,5 74 99 32X60 SOEX 07T308 23- 239652_8IP1 25 74 99 32X60 SOEX 07T308 23- 239652_8IP1 26 76 102 32X60 SOEX 07T308 23- 23 9652_8IP1 26,5 78 105 32x60 SOEX 07T308 23- 239652_8IP1 27 78 105 32X60 SOEX 07T308 23- 23 9652_8IP1 28 80 108 32x60 SOEX 090408 32- 239652J5IP1 28,5 82 111 32x60 SOEX 090408 32- 239652J5IP1 29 82 111 32x60 SOEX 090408 32- 239652J5IP1 29,5 84 114 32x60 SOEX 090408 32- 239652J5IP1 30 89 119 32x60 SOEX 090408 32- 239652J5IP1 31 91 122 32x60 SOEX 090408 32- 239652J5IP1 31,5 93 125 32X60 SOEX 090408 32- 239652J5IP1 32 93 125 32x60 SOEX 090408 32- 239652J5IP1 33 95 128 32x60 SOEX 090408 32- 239652J5IP1 34 97 131 32X60 SOEX 120508 44- 239652_20IP 35 99 134 32X60 SOEX 120508 44- 23 9652 20IP 36 101 137 32X60 SOEX 120508 44- 239652_20IP 37 - 150 32X60 SOEX 120508 44- 23 9652 20IP 37,5 - 153 32X60 SOEX 120508 44- 23 9652_20IP 38 115 153 32X60 SOEX 120508 44- 239652_20IP 39 117 156 32X60 SOEX 120508 44- 23 9652_20IP 39,5 - 159 32X60 SOEX 120508 44- 239652_20IP 40 119 159 32x60 SOEX 120508 44- 23 9652_20IP 42 - 165 32x60 SOEX 120508 44- 239652_20IP 43 - 168 32x60 SOEX 120508 44- 23 9652_20IP 44 127 171 32x60 SOEX 120508 44- 239652_20IP 460 Main catalogue Hoffmann Group 46 (A 5ifn 1 4 4 4 4 4 4 , B 8 <9l74° 6535 HE 6595 iy i i _ L i r 1 3
