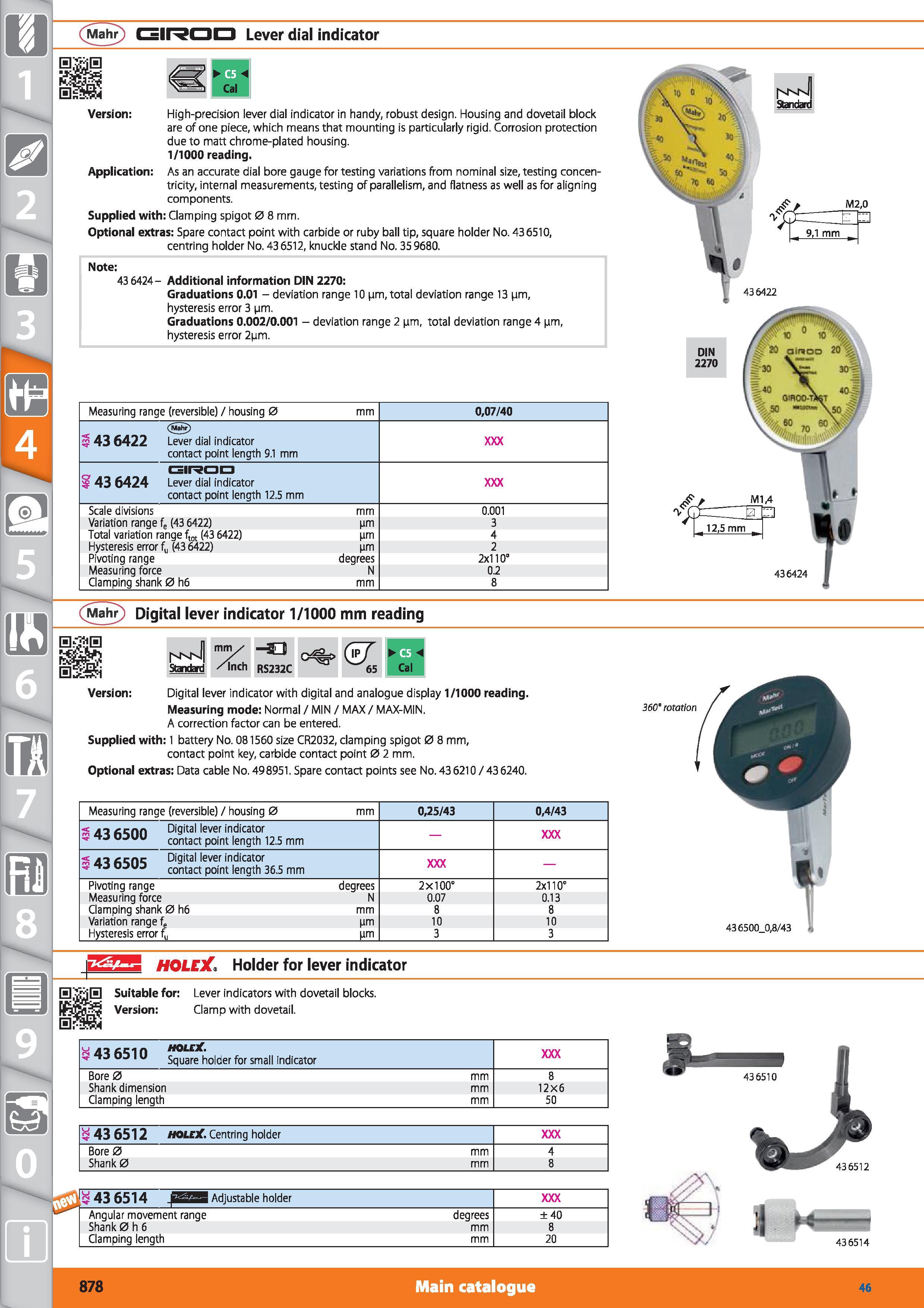

Mahr GireOD Lever dial indicator Cal Version High-precision lever dial indicator in handy, robust design. Housing and dovetail block are of one piece, which means that mounting is particularly rigid. Corrosion protection due to matt chrome-plated housing. 1/1000 reading. Application As an accurate dial bore gauge for testing variations from nominal size, testing concen- tricity, internal measurements, testing of parallelism, and flatness as well as for aligning components. Supplied with Clamping spigot 0 8 mm. Optional extras Spare contact point with carbide or ruby ball tip, square holder No. 436510, centring holder No. 43 6512, knuckle stand No. 35 9680. Note 43 6424- Additional information DIN 2270 Graduations 0.01 - deviation range 10 nm, total deviation range 13 nm, hysteresis error 3 nm. Graduations 0.002/0.001 - deviation range 2 nm, total deviation range 4 nm, hysteresis error 2nm. iaiS Adjustable holder Angular movement range degrees ±40 Shank 0 h 6 mm 8 Clamping length mm 20 vnn Standard 436422 Main catalogue
