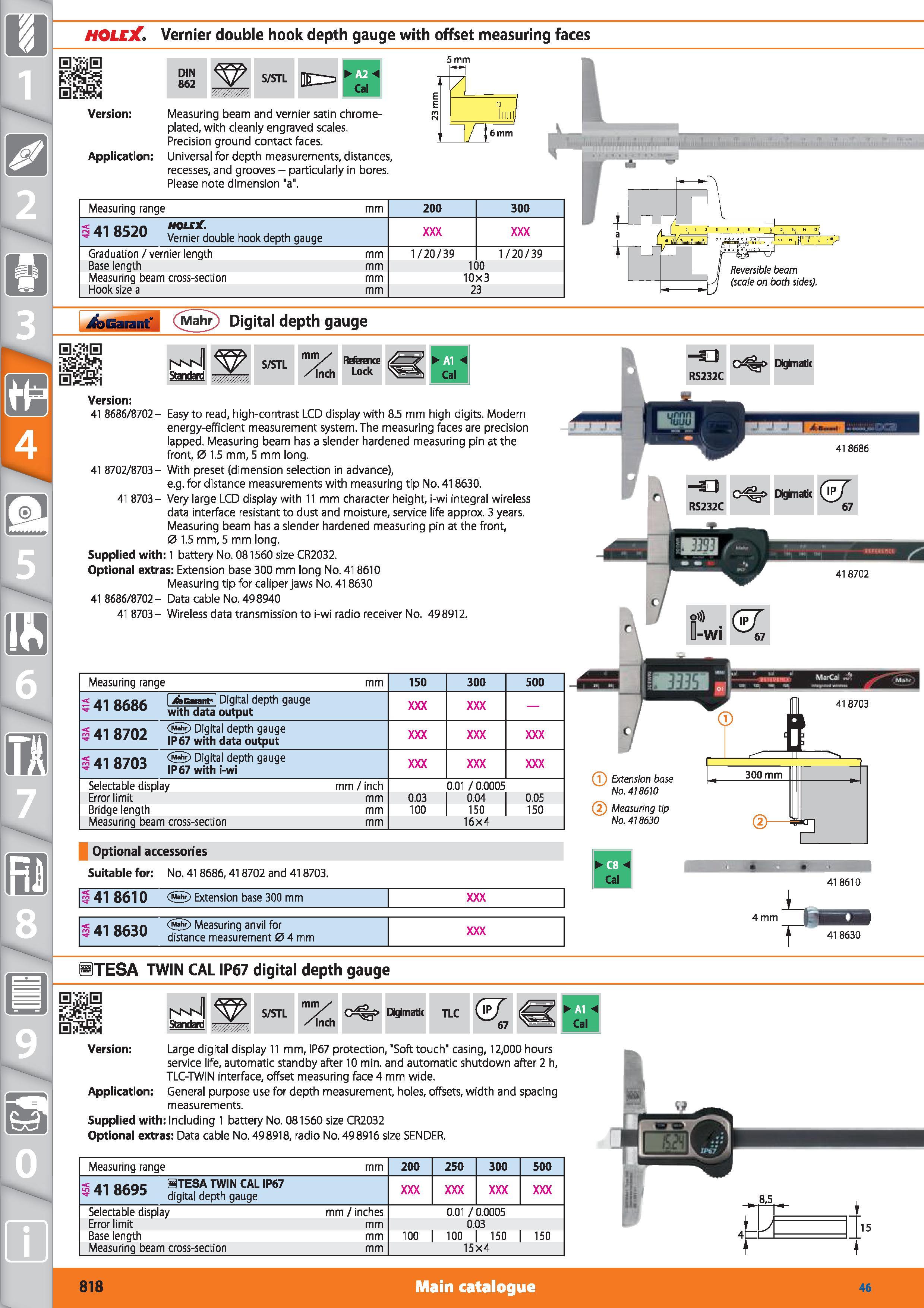

HOLEX Vernier double hook depth gauge with offset measuring faces DIN 862 S/STL (ll> 3 B1 Cal 5 mm Version Application Measuring beam and vernier satin chrome-plated, with cleanly engraved scales. Precision ground contact faces. Universal for depth measurements, distances, recesses, and grooves - particularly in bores. Please note dimension "a". Measuring range mm 200 300 S ai aeon holcX. t ojiu Vernier double hook depth gauge Graduation / vernier length mm 1/20/39 1/20/39 Base length mm 100 Measuring beam cross-section mm 10X3 Hook size a mm 23 r 4-TL-I7 ’ffl Reversible beam (scale on both sides). iCbGarant' Mahr Digital depth gauge Standard S/STL mm/ /Inch Reference Lock -a Digin atic RS232C Version 41 8686/8702- Easy to read, high-contrast LCD display with 8.5 mm high digits. Modern energy-efficient measurement system. The measuring faces are precision lapped. Measuring beam has a slender hardened measuring pin at the front, 0 1.5 mm, 5 mm long. 41 8702/8703- With preset (dimension selection in advance), e.g. for distance measurements with measuring tip No. 418630. 41 8703 - Very large LCD display with 11mm character height, i-wi integral wireless data interface resistant to dust and moisture, service life approx. 3 years. Measuring beam has a slender hardened measuring pin at the front, 0 1.5 mm, 5 mm long. Supplied with 1 battery No. 081560 size CR2032. Optional extras Extension base 300 mm long No. 418610 Measuring tip for caliper jaws No. 418630 41 8686/8702- Data cable No. 498940 41 8703- Wireless data transmission to i-wi radio receiver No. 498912. Measuring range mm 150 300 500 c jii ac.ac. 1 Jfbcannt' Digital depth gauge h i oooo with data output A1 Q7no Digital depth gauge ‘t i o/uz P67 with data output Al Q7fia Digital depth gauge 'r 0/U3 IP67 with i-wi Selectable display mm / inch 0.01 / 0.0005 Error limit mm 0.03 0.04 0.05 Bridge length mm 100 150 150 Measuring beam cross-section mm 16X4 Optional accessories Suitable for No. 418686,418702 and 418703. 9 41 8610 Extension base 300 mm ; ii ngjn Measuring anvil for OOOU distance measurement 0 4 mm 418630 BTESA TWIN CAL IP67 digital depth gauge Standard S/STL mm/ /inch Digimatic TLC <= v Large digital display 11 mm, IP67 protection, "Soft touch" casing, 12,000 hours service life, automatic standby after 10 min. and automatic shutdown after 2 h, TLC-TWIN interface, offset measuring face 4 mm wide. Application General purpose use for depth measurement, holes, offsets, width and spacing measurements. Supplied with Including 1 battery No. 081560 size CR2032 Optional extras Data cable No. 498918, radio No. 498916 size SENDER. Measuring range mm 200 250 300 500 S At BACK BTESA TWIN CAL IP67 0073 digital depth gauge Selectable display mm / inches 0.01 / 0.0005 Error limit mm 0.03 Base length mm 100 100 150 150 Measuring beam cross-section mm 15X4 818 Main catalogue Hoffmann Group 46
