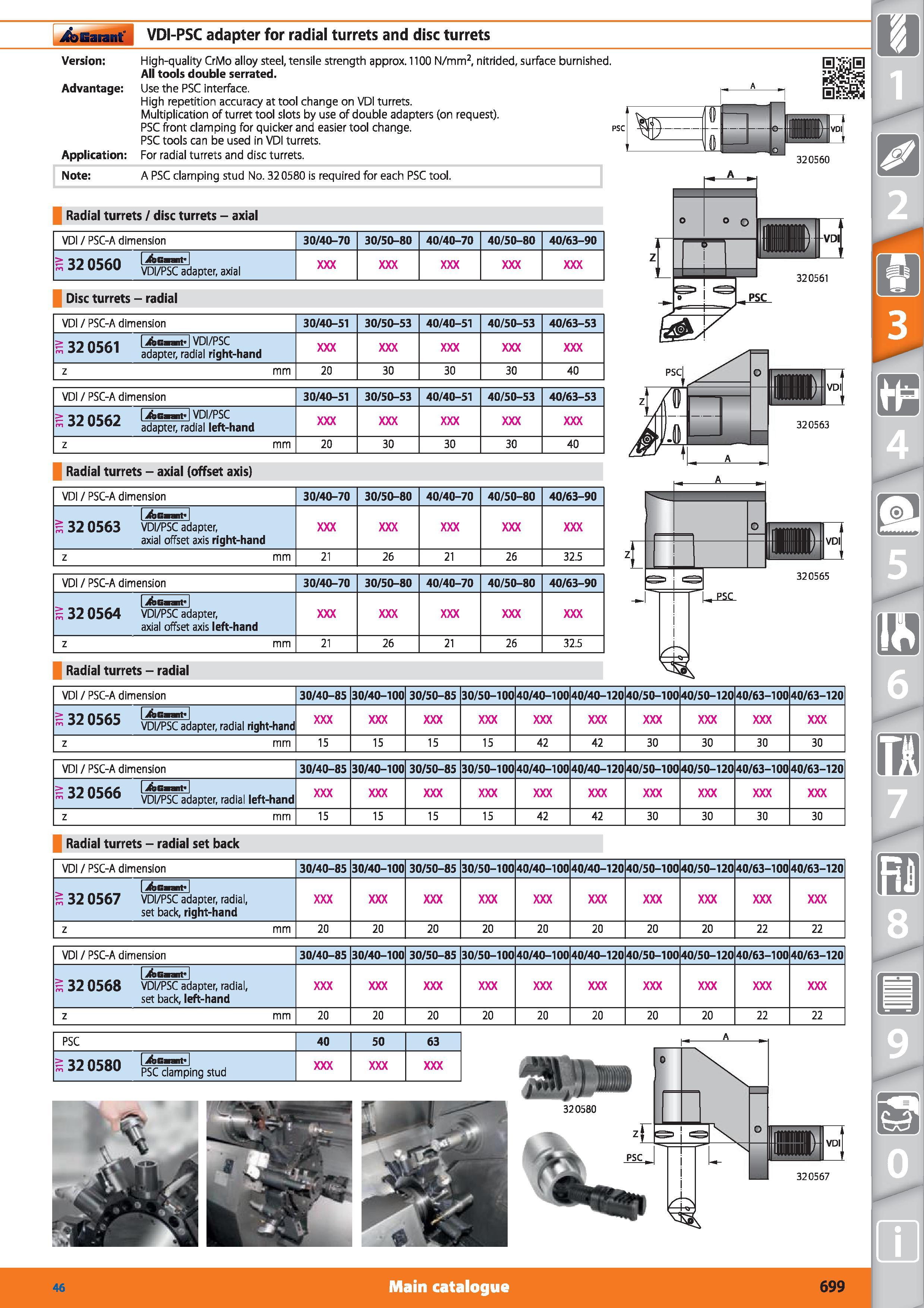

Garant VDI-PSC adapter for radial turrets and disc turrets Version High-quality CrMo alloy steel, tensile strength approx. 1100 N/mm2, nitrided, surface burnished. All tools double serrated. Advantage Use the PSC interface. High repetition accuracy at tool change on VDI turrets. Multiplication of turret tool slots by use of double adapters (on request). PSC front clamping for quicker and easier tool change. psc PSC tools can be used in VDI turrets. Application For radial turrets and disc turrets. Note A PSC clamping stud No. 320580 is required for each PSC tool. Radial turrets / disc turrets - axial VDI / PSC-A dimension 30/40-70 30/50-80 40/40-70 40/50-80 40/63-90 > fllfid li&Gmnfl m az ujovj VDI/PSC adapter, axial Disc turrets - radial VDI / PSC-A dimension 30/40-51 30/50-53 40/40-51 40/50-53 40/63-53 > tnr/'i jfbGsant' VD /PSC s adapter, radial right-hand z mm 20 30 30 30 40 VDI / PSC-A dimension 30/40-51 30/50-53 40/40-51 40/50-53 40/63-53 > ti Ar/'a jfecmnt 1 VDI/PSC s adapter, radial left-hand z mm 20 30 30 30 40 Radial turrets - axial (offset axis) VDI / PSC-A dimension 30/40-70 30/50-80 40/40-70 40/50-80 40/63-90 1 j&Gmnt 1 k 32 0563 VDI/PSC adapter, axial offset axis right-hand z mm 21 26 21 26 32.5 VDI / PSC-A dimension 30/40-70 30/50-80 40/40-70 40/50-80 40/63-90 lifeGaait” K 32 0564 VDI/PSC adapter, axial offset axis left-hand z mm 21 26 21 26 32.5 Radial turrets - radial VDI / PSC-A dimension 30/40-85 30/40-100 30/50-85 30/50-100 40/40-100 40/40-120 40/50-100 40/50-120 40/63-100 40/63-120 IAgmh-I VDI/PSC adapter, radial right-hand z mm 15 15 15 15 42 42 30 30 30 30 VDI / PSC-A dimension 30/40-85 30/40-100 30/50-85 30/50-100 40/40-100 40/40-120 40/50-100 40/50-120 40/63-100 40/63-120 >M(ir IXSjGmnfl VDI/PSC adapter, radial left-hand z mm 15 15 15 15 42 42 30 30 30 30 Radial turrets - radial set back VDI / PSC-A dimension 30/40-85 30/40-100 30/50-85 30/50-100 40/40-100 40/40-120 40/50-100 40/50-120 40/63-100 40/63-120 1 jfecnnt 1 s 32 0567 VDI/PSC adapter, radial, set back, right-hand z mm 20 20 20 20 20 20 20 20 22 22 VDI / PSC-A dimension 30/40-85 30/40-100 30/50-85 30/50-100 40/40-100 40/40-120 40/50-100 40/50-120 40/63-100 40/63-120 1 j&Gmnt”l s 32 0568 VDI/PSC adapter, radial, set back, left-hand z mm 20 20 20 20 20 20 20 20 22 22 m 1 PSC 40 50 63 m U30U psc C amping stud m Main catalogue Hoffmann Group 46 699
