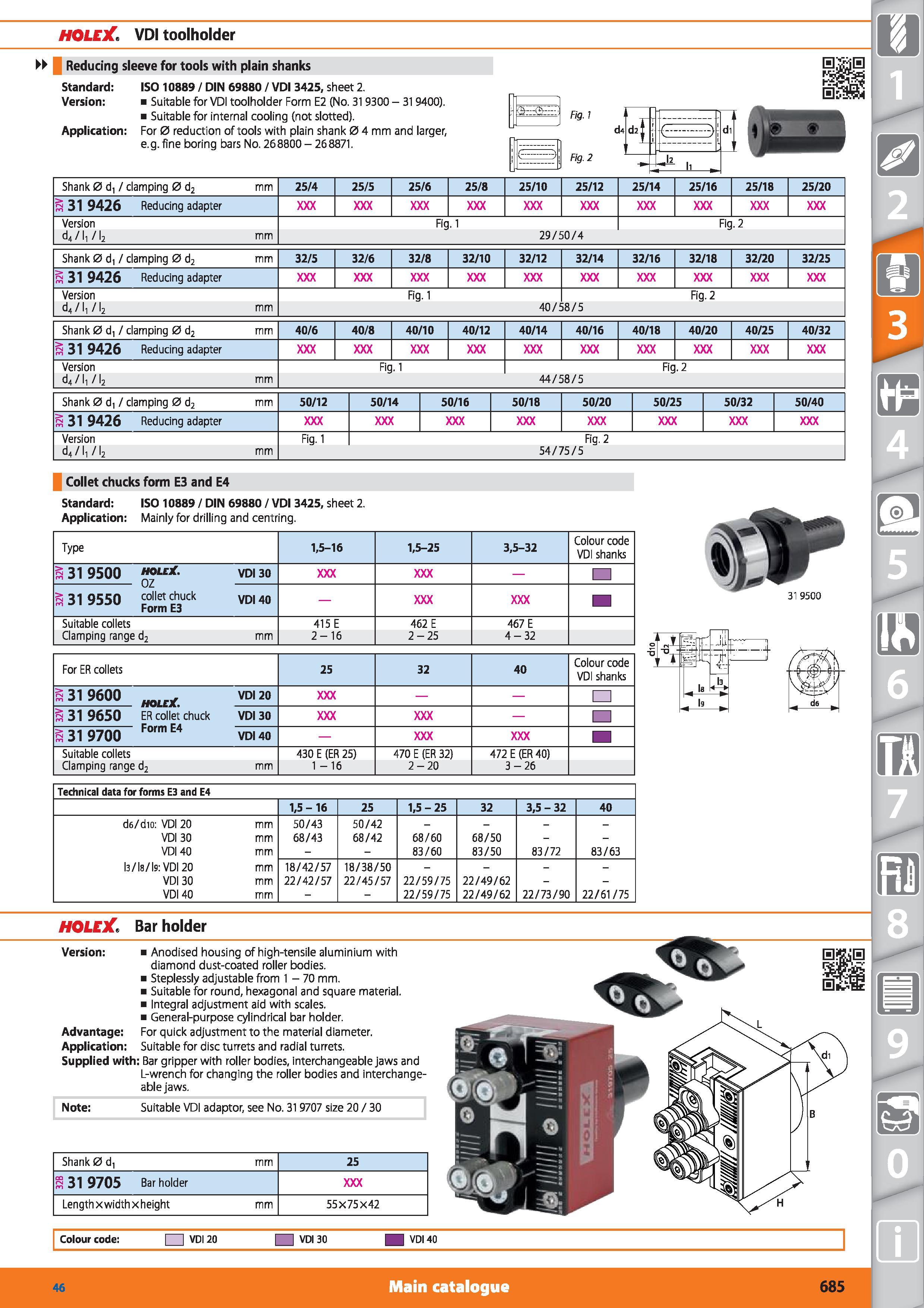

HOLEX VDI toolholder Reducing sleeve for tools with plain shanks Standard ISO 10889 / DIN 69880 / VDI 3425, sheet 2. Version Suitable for VDI toolholder Form E2 (No. 319300 - 319400). Suitable for internal cooling (not slotted). Application For 0 reduction of tools with plain shank 0 4 mm and larger, e.g.fine boring bars No. 268800 - 268871. 2=23 Fig. 1 Fig 2 Shank 0 d, / clamping 0 d2 mm 25/4 25/5 25/6 25/8 25/10 25/12 25/14 25/16 25/18 25/20 31 9426 Reducing adapter Version Fig. 1 Fig. 2 d4/l1/l2 mm 29/50/4 Shank 0 d, / clamping 0 d2 mm 32/5 32/6 32/8 32/10 32/12 32/14 32/16 32/18 32/20 32/25 S 31 9426 Reducing adapter Version Fig. 1 Fig. 2 d4/l1/l2 mm 40/58/5 Shank 0 d, / clamping 0 d2 mm 40/6 40/8 40/10 40/12 40/14 40/16 40/18 40/20 40/25 40/32 31 9426 Reducing adapter Version Fig. 1 Fig. 2 d4/l1/l2 mm 44/58/5 Shank 0 d, / clamping 0 d2 mm 50/12 50/14 50/16 50/18 50/20 50/25 50/32 50/40 S 31 9426 Reducing adapter Version Fig. 1 Fig. 2 d4/l1/l2 mm 54/ 75 /5 Collet chucks form E3 and E4 Standard ISO 10889 / DIN 69880 / VDI 3425, sheet 2. Application Mainly for drilling and centring. Type 1,5-16 1,5-25 3,5-32 Colour code VDI shanks 3 31 9500 HOLCX. OZ collet chuck Form E3 VDI 30 s 31 9550 VDI 40 Suitable collets 415 E 462 E 467 E Clamping range d2 mm 2-16 2-25 4-32 31 9500 For ER collets 25 32 40 Colour code VDI shanks Pi 31 9600 holeX. VDI 20 S 31 9650 ER collet chuck Form E4 VDI 30 3 31 9700 VDI 40 Suitable collets 430 E (ER 25) 470 E (ER 32) 472 E (ER 40) Clamping range d2 mm 1 -16 2-20 3-26 d6 Technical data for forms E3 and E4 1,5 -16 25 1,5 - 25 32 3,5 - 32 40 de/dio VDI 20 mm 50/43 50/42 VDI 30 mm 68/43 68/42 68/60 68/50 VDI 40 mm 83/60 83/50 83/72 83/63 13/Is/Is VDI 20 mm 18/42/57 18/38/50 VDI 30 mm 22/42/57 22/45/57 22/59/75 22/49/62 VDI 40 mm 22/59/75 22/49/62 22 / 73 / 90 22/61/75 HOLE Bar holder Version Anodised housing of high-tensile aluminium with diamond dust-coated roller bodies. Steplessly adjustable from 1 - 70 mm. Suitable for round, hexagonal and square material. Integral adjustment aid with scales. General-purpose cylindrical bar holder. Advantage For quick adjustment to the material diameter. Application Suitable for disc turrets and radial turrets. Supplied with Bar gripper with roller bodies, interchangeable jaws and L-wrench for changing the roller bodies and interchangeable jaws. Note Suitable VDI adaptor, see No. 319707 size 20 / 30 Shank 0 d, mm 25 S 31 9705 Bar holder Length x width x height mm 55X75X42 Colour code VDI 20 VDI 30 VDI 40 Main catalogue Hoffmann Group 46 685
