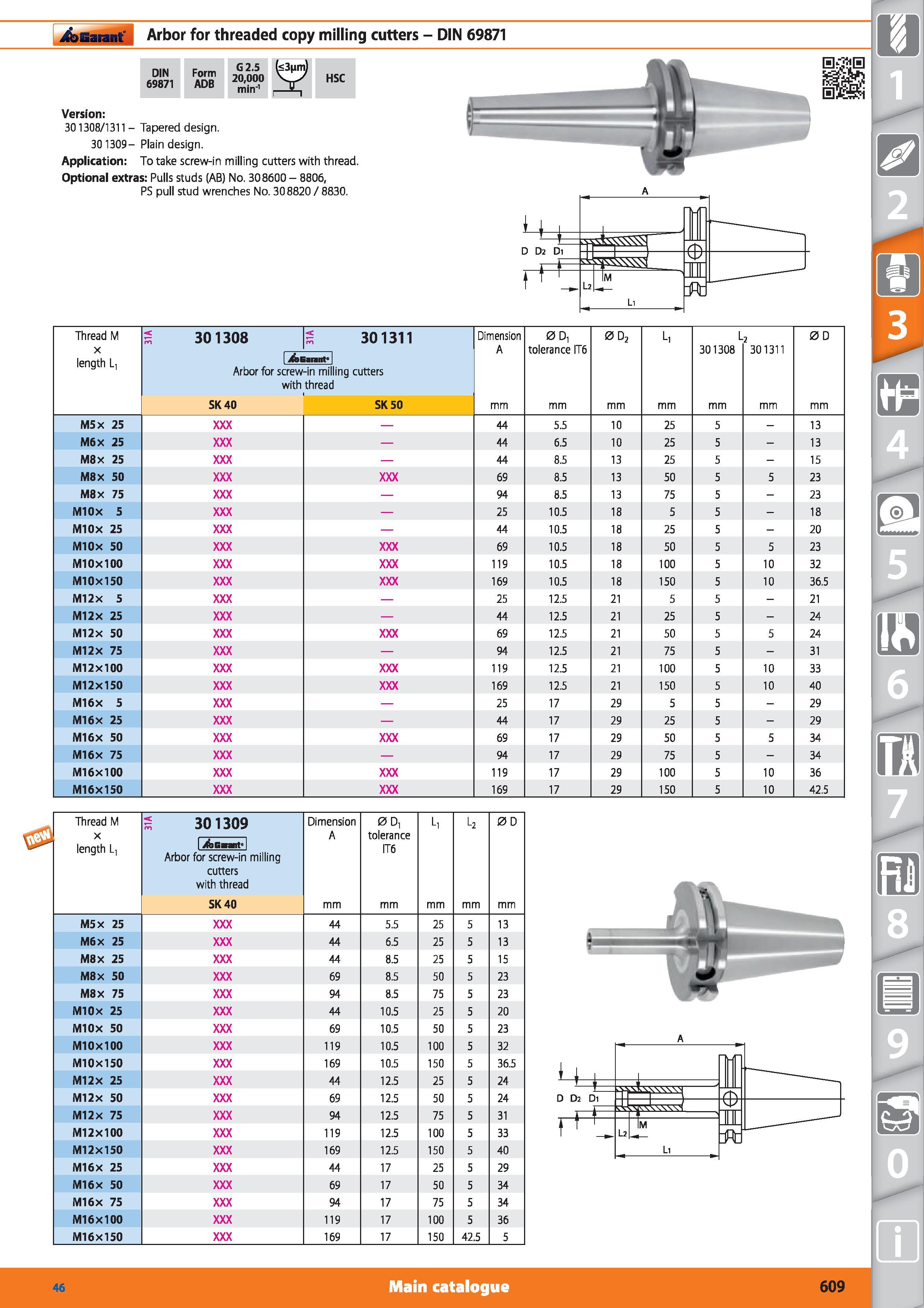

Garant Arbor for threaded copy milling cutters - DIN DIN 69871 Form ADB G 2.5 20,000 min'1 HSC Version 301308/1311 - Tapered design. 30 1309- Plain design. Application To take screw-in milling cutters with thread. Optional extras Pulls studs (AB) No. 308600 - 8806, PS pull stud wrenches No. 308820 / 8830. U- D D2 Di f Im Thread M X length L, n 301308 s 301311 Dimension A 0D, tolerance IT6 0D2 L, L 301308 2 301311 0 D 1 J&Ewwit 1 Arbor for screw-in milling cutters with thread SK40 SK 50 mm M5x 25 44 5.5 10 25 5 - 13 M6x 25 44 6.5 10 25 5 - 13 M8x 25 44 8.5 13 25 5 - 15 M8x 50 69 8.5 13 50 5 5 23 M8x 75 94 8.5 13 75 5 - 23 M10X 5 25 10.5 18 5 5 - 18 M10X 25 44 10.5 18 25 5 - 20 MlOx 50 69 10.5 18 50 5 5 23 M10X100 119 10.5 18 100 5 10 32 M10X150 169 10.5 18 150 5 10 36.5 M12x 5 25 12.5 21 5 5 - 21 M12X 25 44 12.5 21 25 5 - 24 M12x 50 69 12.5 21 50 5 5 24 M12X 75 94 12.5 21 75 5 - 31 M12X100 119 12.5 21 100 5 10 33 M12X150 169 12.5 21 150 5 10 40 M16X 5 25 17 29 5 5 - 29 M16x 25 44 17 29 25 5 - 29 M16X 50 69 17 29 50 5 5 34 M16x 75 94 17 29 75 5 - 34 M16X100 119 17 29 100 5 10 36 M16X150 169 17 29 150 5 10 42.5 3 Thread M X length L, s 301309 Dimension A mm 0D, tolerance IT6 mm L, mm E -1 E 0 D mm 1 Gmts 1 Arbor for screw-in milling cutters with thread SK40 M5x 25 44 5.5 25 5 13 M6x 25 44 6.5 25 5 13 M8x 25 44 8.5 25 5 15 M8x 50 69 8.5 50 5 23 M8x 75 94 8.5 75 5 23 MlOx 25 44 10.5 25 5 20 M10X 50 69 10.5 50 5 23 M10X100 119 10.5 100 5 32 M10X150 169 10.5 150 5 36.5 M12X 25 44 12.5 25 5 24 M12x 50 69 12.5 50 5 24 M12x 75 94 12.5 75 5 31 M12X100 119 12.5 100 5 33 M12X150 169 12.5 150 5 40 M16X 25 44 17 25 5 29 M16X 50 69 17 50 5 34 M16x 75 94 17 75 5 34 M16X100 119 17 100 5 36 M16X150 169 17 150 42.5 5 Main catalogue Hoffmann Group 46 609 69871
