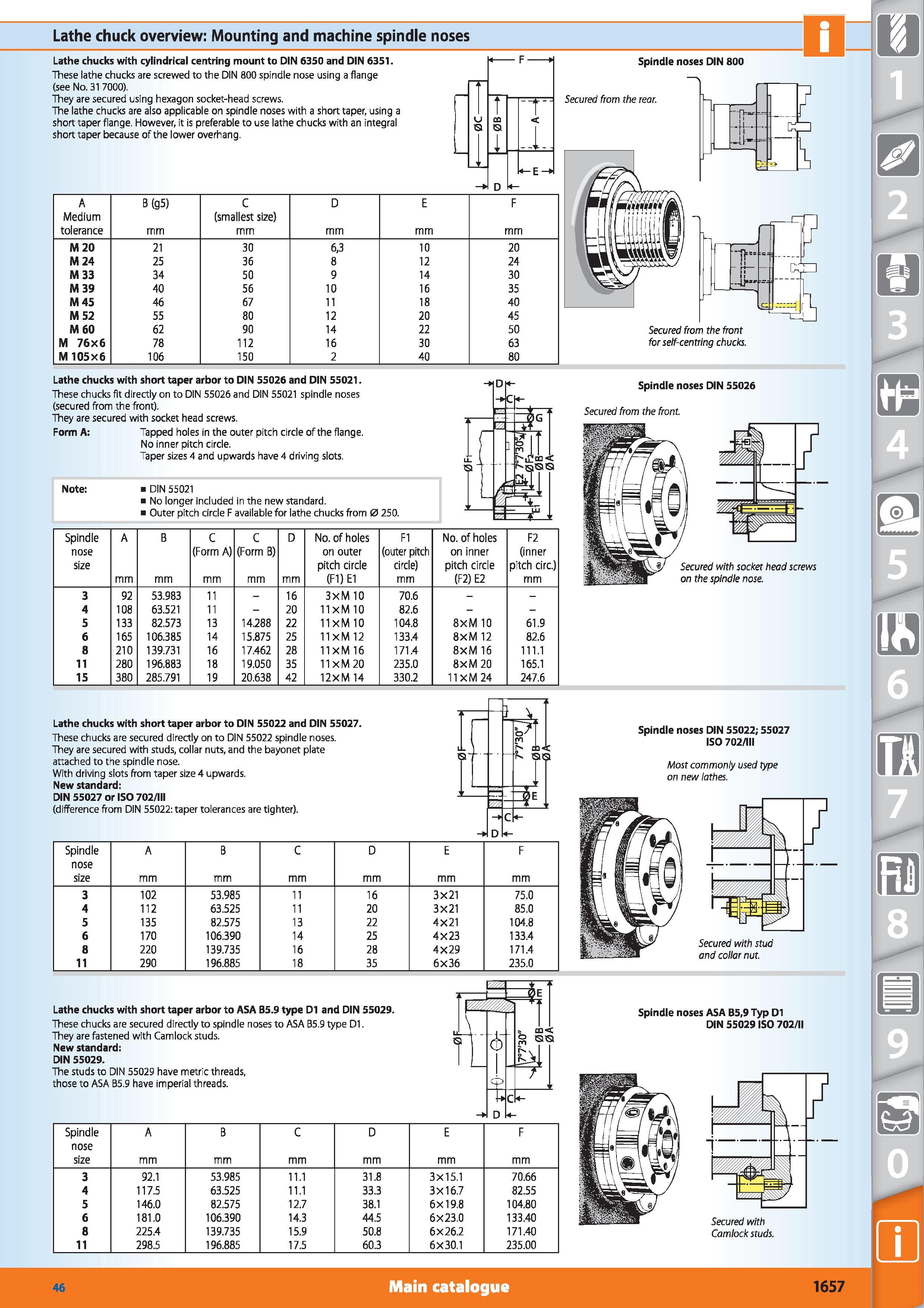

Lathe chuck overview Mounting and machine spindle noses Lathe chucks with cylindrical centring mount to DIN 6350 and DIN 6351. These lathe chucks are screwed to the DIN 800 spindle nose using a flange (see No. 31 7000). They are secured using hexagon socket-head screws. The lathe chucks are also applicable on spindle noses with a short taper, using a short taper flange. However, it is preferable to use lathe chucks with an integral short taper because of the lower overhang. T Spindle noses DIN 800 Secured from the rear. A B(g5) C D E F Medium (smallest size) tolerance mm M 20 21 30 6,3 10 20 M 24 25 36 8 12 24 M 33 34 50 9 14 30 M 39 40 56 10 16 35 M 45 46 67 11 18 40 M 52 55 80 12 20 45 M 60 62 90 14 22 50 M 76X6 78 112 16 30 63 M 105x6 106 150 2 40 80 n jl_ i - Lathe chucks with short taper arbor to DIN 55026 and DIN 55021. These chucks fit directly on to DIN 55026 and DIN 55021 spindle noses (secured from the front). They are secured with socket head screws. Form A Tapped holes in the outer pitch circle of the flange. No inner pitch circle. Taper sizes 4 and upwards have 4 driving slots. Note i DIN 55021 i No longer included in the new standard, i Outer pitch circle F available for lathe chucks from 0 250. Secured from the front for self-centring chucks. Spindle noses DIN 55026 Secured from the front Spindle A B C D No. of holes FI No. of holes F2 nose (Form A) (Form B) on outer (outer pitch on inner (inner size pitch circle circle) pitch circle pitch circ.) mm (FI) El mm (F2) E2 mm 3 92 53.983 11 - 16 3xM 10 70.6 4 108 63.521 11 - 20 11xM 10 82.6 5 133 82.573 13 14.288 22 11xM 10 104.8 8xM 10 61.9 6 165 106.385 14 15.875 25 11xM 12 133.4 8xM 12 82.6 8 210 139.731 16 17.462 28 11xM 16 171.4 8xM 16 111.1 11 280 196.883 18 19.050 35 11 x M 20 235.0 8xM 20 165.1 15 380 285.791 19 20.638 42 12xM 14 330.2 11XM24 247.6 Lathe chucks with short taper arbor to DIN 55022 and DIN 55027. These chucks are secured directly on to DIN 55022 spindle noses. They are secured with studs, collar nuts, and the bayonet plate attached to the spindle nose. With driving slots from taper size 4 upwards. New standard DIN 55027 or ISO 702/111 (difference from DIN 55022 taper tolerances are tighter). Spindle noses DIN 55022; 55027 ISO 702/111 Most commonly used type on new lathes. Spindle nose size A mm B mm C mm D mm E mm F mm 3 102 53.985 11 16 3x21 75.0 4 112 63.525 11 20 3x21 85.0 5 135 82.575 13 22 4x21 104.8 6 170 106.390 14 25 4X23 133.4 8 220 139.735 16 28 4x29 171.4 11 290 196.885 18 35 6x36 235.0 Secured with stud and collar nut. Lathe chucks with short taper arbor to ASA B5.9 type DI and DIN 55029. These chucks are secured directly to spindle noses to ASA B5.9 type DI. They are fastened with Camlock studs. New standard DIN 55029. The studs to DIN 55029 have metric threads, those to ASA B5.9 have imperial threads. Spindle nose size A mm B mm C mm D mm E mm F mm 3 92.1 53.985 11.1 31.8 3x15.1 70.66 4 117.5 63.525 11.1 33.3 3X16.7 82.55 5 146.0 82.575 12.7 38.1 6x19.8 104.80 6 181.0 106.390 14.3 44.5 6X23.0 133.40 8 225.4 139.735 15.9 50.8 6x26.2 171.40 11 298.5 196.885 17.5 60.3 6x30.1 235.00 Spindle noses ASA B5,9 Typ DI DIN 55029 ISO 702/11 Secured with Camlock studs. Main catalogue Hoffmann Group 46 1657
