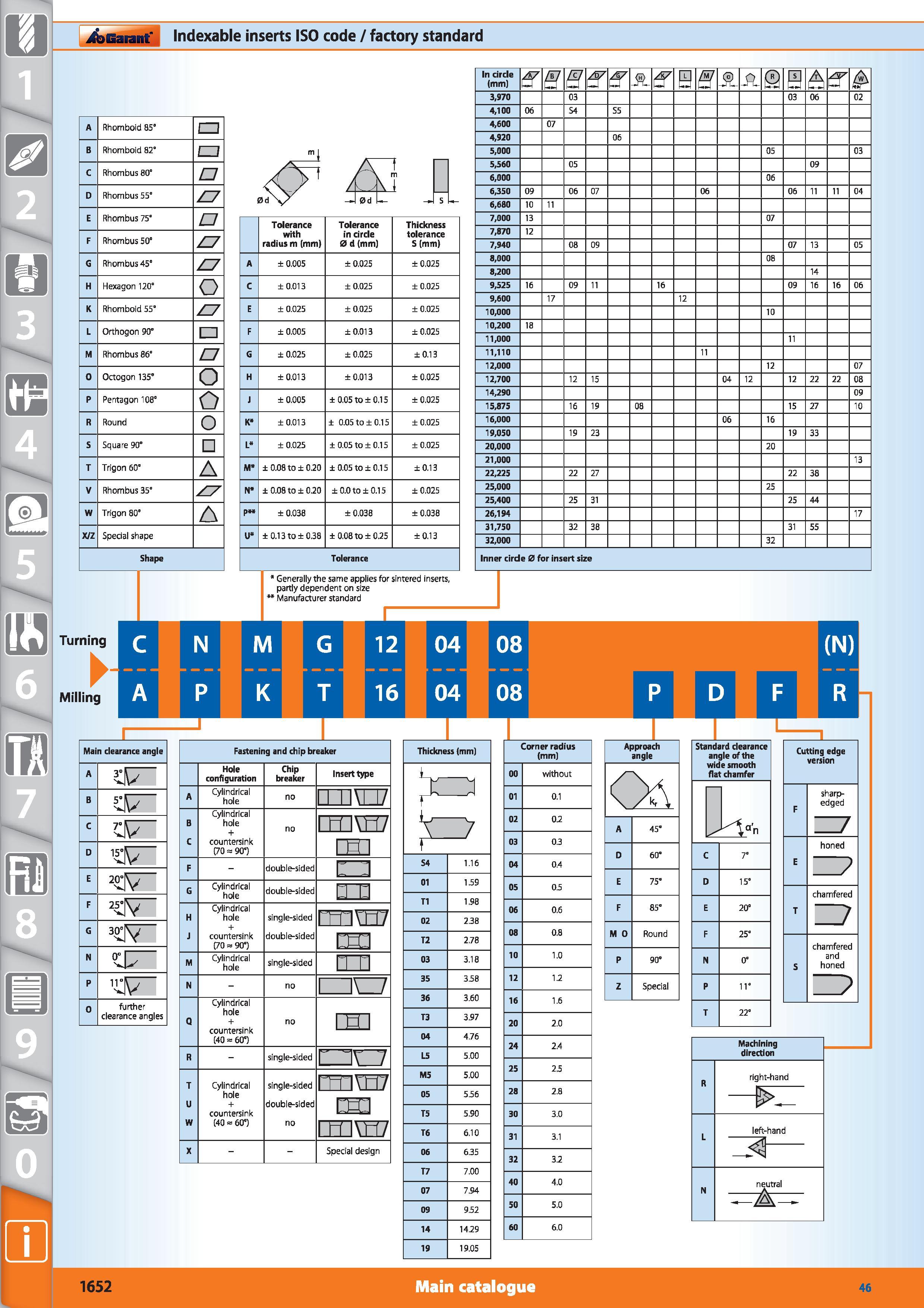

Garant Indexable inserts ISO code / factory standard A Rhomboid 85° EJ B Rhomboid 82° EJ C Rhombus 80° o D Rhombus 55° Z7 E Rhombus 75" O F Rhombus 50 J G Rhombus 45° J H Hexagon 120° o K Rhomboid 55" 7 L Orthogon 90° M Rhombus 86° O 0 Octogon 135° O P Pentagon 108° o R Round o S Square 90° T Trigon 60° A V Rhombus 35° W Trigon 80 A X/Z Special shape Shape Turning Milling Main clearance angle A B C 7 D E F 2 r G 3 V N P 0 further clearance angles Tolerance with radius m (mm) Tolerance in circle 0 d (mm) Thickness tolerance S (mm) A ± 0.005 ± 0.025 ± 0.025 C ±0.013 ± 0.025 ± 0.025 E ± 0.025 ± 0.025 ± 0.025 F ± 0.005 ±0.013 ± 0.025 G ± 0.025 ± 0.025 ±0.13 H ±0.013 ±0.013 ± 0.025 J ± 0.005 ±0.05 to ±0.15 ± 0.025 K ±0.013 ± 0.05 to ±0.15 ± 0.025 L ± 0.025 ±0.05 to ±0.15 ± 0.025 M ± 0.08 to ± 0.20 ±0.05 to ±0.15 ±0.13 N ± 0.08 to ± 0.20 ±0.0 to ±0.15 ± 0.025 p ± 0.038 ± 0,038 ± 0,038 U ±0.13 to ±0.38 ± 0.08 to ±0.25 ±0.13 Tolerance Generally the same applies for sintered inserts, partly dependent on size Manufacturer standard C N M G 12 A P K Fastening and chip breaker Hole configuration Chip breaker Insert type A Cylindrical hole no nmjj Cylindrical hole B no im\H/ C countersink (70 90°) rm F - double-sided G Cylindrical hole double-sided n in H Cylindrical hole single-sided mivny J countersink (70 90") double-sided rm M Cylindrical hole single-sided rm N - no IZZI\Z7 Q Cylindrical hole + countersink (40 60”) no cm R - single-sided EZZKZ7 T Cylindrical single-sided rmtm U hole + countersink double-sided (40 60") 1 Ii I\h7 X Special design Thickness (mm) i t i 1 54 1.16 01 1.59 Tl 1.98 02 2.38 T2 2.78 03 3.18 35 3.58 36 3.60 T3 3.97 04 4.76 L5 5.00 M5 5.00 05 5.56 T5 5.90 T6 6.10 06 6.35 T7 7.00 07 7.94 09 9.52 14 14,29 19 19.05 Corner radius (mm) 00 without 01 0.1 02 0.2 03 0.3 04 0.4 05 0.5 06 0.6 08 0.8 10 1.0 12 1.2 16 1.6 20 2.0 24 2.4 25 2.5 28 2.8 30 3.0 31 3.1 32 3.2 40 4.0 50 5.0 60 6.0 Approach angle Q\ A 45° D 60° E 75° F 85° M O Round P 90° Z Special Standard clearance angle of the wide smooth flat chamfer \a’n C T D 15° E 20° F 25° N 0° P 11° T 22° Cutting edge version sharp- F edged honed E chamfered T Z7 chamfered and S honed Machining direction right-hand left-hand 3t- 1652 Main catalogue Hoffmann Group 46
